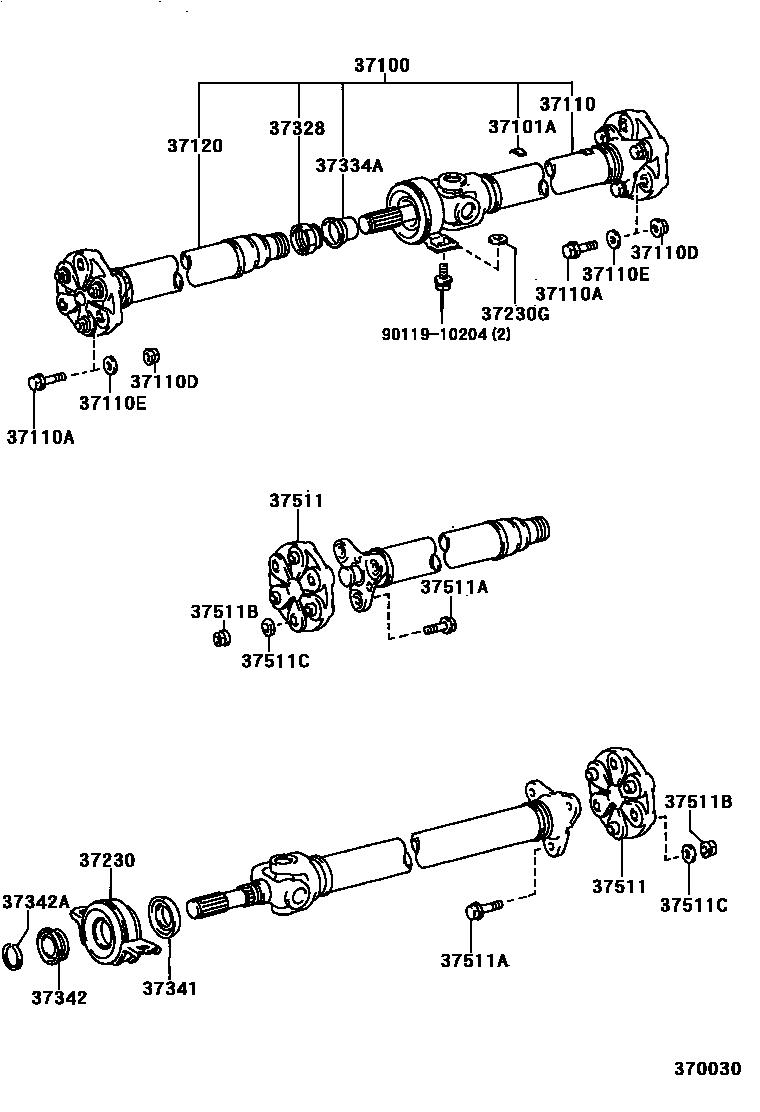

PROPELLER SHAFT & UNIVERSAL JOINT
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
3G,T=1.0,L=19.1
5G,T=1.0,L=31.8
7G,T=2.0
1G
2G
3G
4G
5G
6G
8G
10G
12G
14G
16G
18G
20G
2G,T=1.0,L=12.7
4G,T=1.0,L=25.4
6G,T=2.0
8G,T=2.0
10G,T=2.0
12G,T=2.0
14G,T=2.0
16G,T=2.0
18G,T=2.0
20G,T=2.0,L=42.4
1G,T=1.0,L=6.4
7G
22G,T=2.0,L=46.6
24G,T=2.0,L=50.8
9G
11G
13G
15G
17G
19G
1.5G
2.5G
3.5G
4.5G
1.5G,T=1.0,L=9.5
2.5G,T=1.0,L=15.9
3.5G,T=1.0,L=22.3
4.5G,T=1.0,L=28.6
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
MARK 1
MARK 2
MARK 4
MARK 3
MARK 8
*12X1.25PX59.5-20
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=9.0
T=6.5
T=11.0
T=13.5
T=2.0
T=1.0
37328NUT, PROPELLER SHAFT ADJUSTING
37334ABOOT, SLIDING SHAFT
37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1
37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2
37342ARING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)
37511ABOLT (FOR FLEXIBLE COUPLING)
*12X1.25PX59.5-20
37511BNUT (FOR FLEXIBLE COUPLING)
37511CWASHER, PLATE (FOR FLEXIBLE COUPLING)
9011910204
main90119-10204
19 parts on this diagram · 1 diagram in section
