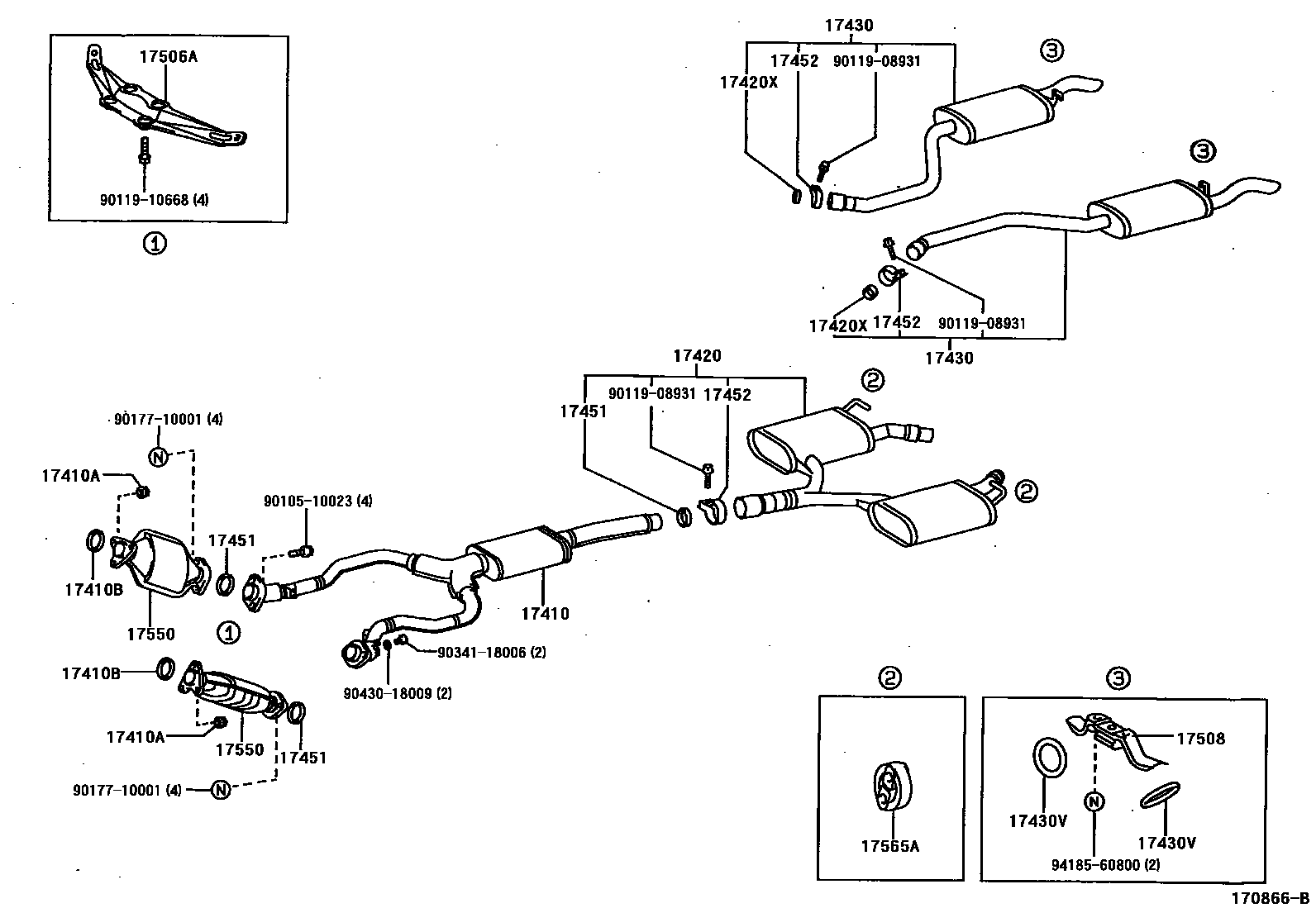

EXHAUST PIPE

0001 1W/O(CONVERTER) 0002 1W(CONVERTER)

17410PIPE ASSY, EXHAUST, FRONT

main17410-50140i1UZFE..UCF20..LHD..EUR199410-199707

W(CONVERTER)

main17410-50150i1UZFE..UCF20..ARL,GEN199410-199707

W(CONVERTER)

main17410-50220i1UZFE..UCF20..ARL; 1UZFE..UCF20..EUR,GEN199707

SINGAPORE OR THAILAND SPEC,W(CONVERTER); W(CONVERTER)

main17410-50230i1UZFE..UCF20..ARL199707

W(CONVERTER)

main17410-50270i1UZFE..UCF20..LHD..EUR199808

GERMANY SPEC,W(CONVERTER)

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×6i1UZFE..UCF20199410

17410BGASKET, EXHAUST PIPE

main90917-06043×2i1UZFE..UCF20..ARL;1UZFE..UCF20..EUR..4FC; 1UZFE..UCF20..V..5FC;1UZFE..UCF20..(GEN,V)..4FC;1UZFE..UCF20..RHD..(EUR,GEN)..5FC199410

W(CONVERTER); W/O(CONVERTER)

main90917-06059×2i1UZFE..UCF20..ARL; 1UZFE..UCF20..EUR,GEN199707

SINGAPORE OR THAILAND SPEC,W(CONVERTER); W(CONVERTER)

17420PIPE ASSY, EXHAUST, CENTER

main17420-50100i1UZFE..UCF20..ARL; 1UZFE..UCF20..GEN199410-199707

W(CONVERTER)

main17420-50110i1UZFE..UCF20..EUR,GEN,V199410-199707

main17420-50160i1UZFE..UCF20..ARL199707

main17420-50170i1UZFE..UCF20..EUR,GEN,V199707

17420XGASKET, EXHAUST PIPE, CENTER

main17451-50030×2i1UZFE..UCF20199410-199707

main17451-50040×2i1UZFE..UCF20199707

17430PIPE ASSY, EXHAUST, TAIL

main17430-50090i1UZFE..UCF20199410-199707

RH

main17430-50130i1UZFE..UCF20199707

RH

main17440-50060i1UZFE..UCF20199410-199707

LH

main17440-50100i1UZFE..UCF20199707

LH

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-36001×4i1UZFE..UCF20199410

17451GASKET, EXHAUST PIPE

main17451-50020i1UZFE..UCF20199410

REAR

main90917-06072×2i1UZFE..UCF20199410-199702

FRONT

main90917-06076×2i1UZFE..UCF20..V;1UZFE..UCF20..RHD;1UZFE..UCF20..LHD..EUR..4FC199702

FRONT

main90917-06078×2i1UZFE..UCF20..ARL; 1UZFE..UCF20..EUR,GEN199707

SINGAPORE OR THAILAND SPEC,FRONT; W(CONVERTER),FRONT

17452CLAMP, EXHAUST PIPE

main17452-50020i1UZFE..UCF20199410

FRONT

main17452-50030×2i1UZFE..UCF20199410-199707

REAR

main17452-50040×2i1UZFE..UCF20199707

REAR

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-50080i1UZFE..UCF20199410

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-50010×2i1UZFE..UCF20199410

17550SUB-MUFFLER ASSY, NO.2

main17550-50040×2i1UZFE..UCF20..V;1UZFE..UCF20..RHD..(EUR,GEN)199410

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-46040×2i1UZFE..UCF20199410

9010510023

main90105-10023

9011908931

main90119-08931

9011910668

main90119-10668

9017710001

main90177-10001

9034118006

main90341-18006

9043018009

main90430-18009

9418560800

main94185-60800

20 parts on this diagram · 2 diagrams in section
