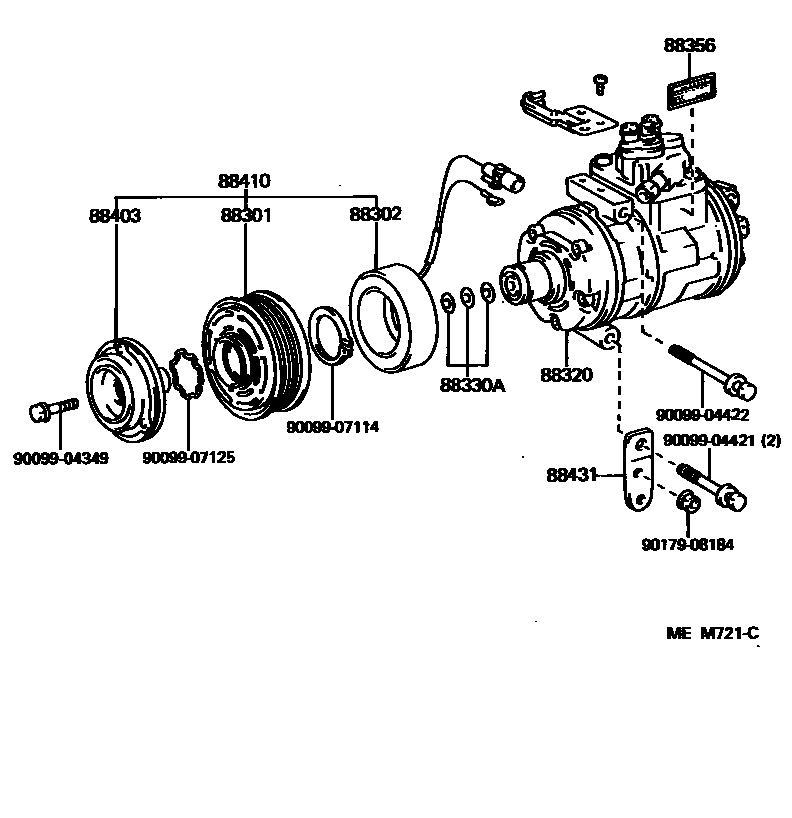

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-50020iUCF10198912-199410

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-50010iUCF10..ARL,EUR,GEN198912-199208

main88411-50020iUCF10..V198912-199208

main88411-50030iUCF10..ARL,EUR,GEN199208-199410

main88411-50040iUCF10..V199208-199410

88320COMPRESSOR ASSY, COOLER

main88320-50010iUCF10..ARL,EUR,GEN198912-199110

main88320-50020iUCF10..V198912-199208

main88320-50030iUCF10..ARL,EUR,GEN199110-199208

main88320-50040iUCF10..ARL,EUR,GEN199208-199410

main88320-50050iUCF10..LHD..EUR199308-199410

ISRAEL SPEC

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iUCF10198912-199410

88356LABEL, COMPRESSOR CAUTION

main88356-12010iUCF10..ARL,EUR,GEN198912-199110

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iUCF10198912-199208

main88403-30290iUCF10199208-199410

88410CLUTCH ASSY, MAGNET

main88410-50010iUCF10..ARL,EUR,GEN198912-199208

main88410-50030iUCF10..V198912-199208

main88410-50040iUCF10..ARL,EUR,GEN199208-199410

main88410-50060iUCF10..V199208-199410

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-50010iUCF10198912-199111

main88433-50010iUCF10199111-199410

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907114

main90099-07114

9009907125

main90099-07125

9017908184

main90179-08184

14 parts on this diagram · 2 diagrams in section
