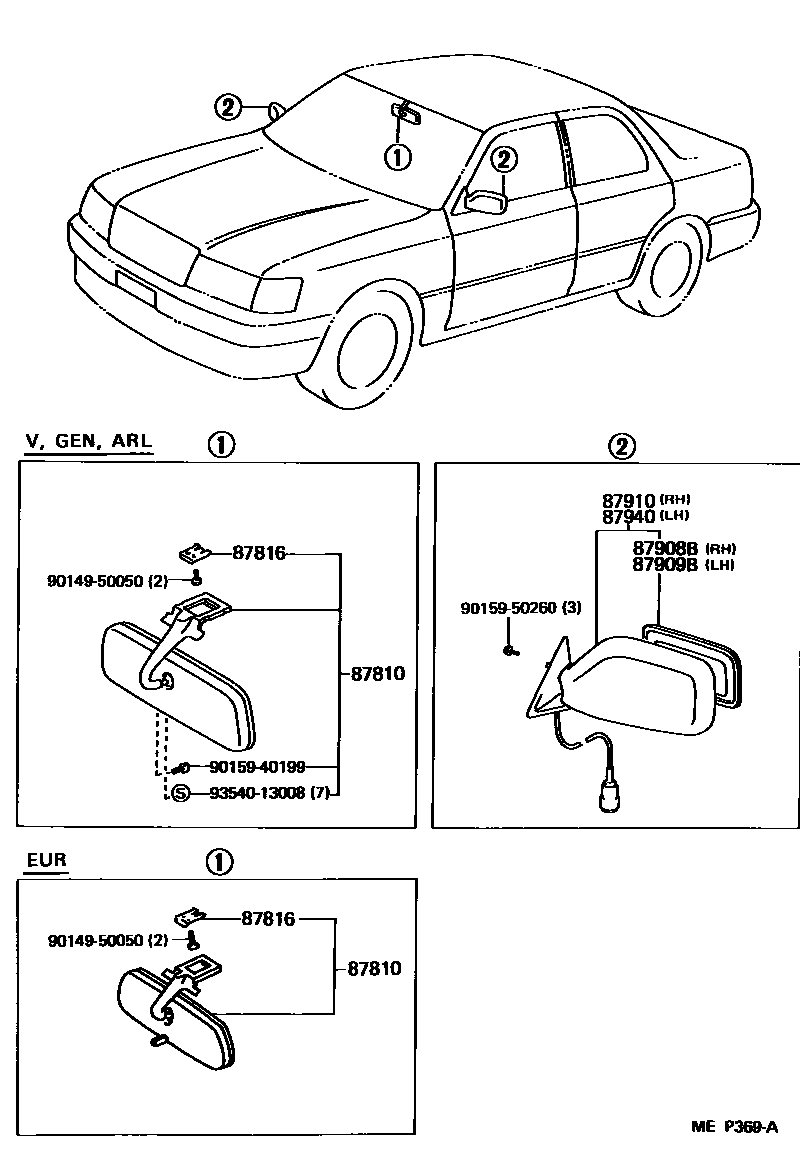

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-50010-02iUCF10..V198912-199108

RED,TRIM3#

main87810-50010-03iUCF10..ARL,GEN,V198912-199208

SHADOW GRAY,TRIM1#

main87810-50010-04iUCF10..ARL,GEN,V198912-199208

DARK BLUE,TRIM8#

main87810-50010-05iUCF10..ARL,GEN,V198912-199208

GREIGE,TRIM0#

main87810-50010-06iUCF10..ARL,GEN,V198912-199208

DARK ROSE,TRIM4#

main87810-50030-03iUCF10..EUR198912-199208

SHADOW GRAY,TRIM1#

main87810-50030-04iUCF10..EUR198912-199208

DARK BLUE,TRIM8#

main87810-50030-05iUCF10..EUR198912-199208

GREIGE,TRIM0#

main87810-50030-06iUCF10..EUR198912-199208

DARK ROSE,TRIM4#

main87810-50030-C0iUCF10..EUR199208-199410

BLACK,TRIM2#

main87810-50030-E0iUCF10..EUR199208-199410

OAK,TRIM0#

main87810-50030-P0iUCF10..EUR199208-199410

SHADOW GRAY,TRIM1#

main87810-50030-W3iUCF10..EUR199208-199410

DK.BLUE,TRIM8#

main87810-50040-B0iUCF10..ARL,GEN,V199208-199410

SHADOW GRAY,TRIM1#

main87810-50040-E0iUCF10..ARL,GEN,V199208-199410

IVORY,TRIM0#

main87810-50040-J0iUCF10..ARL,GEN,V199208-199410

DK.BLUE,TRIM8#

main87810-50040-K0iUCF10..ARL,GEN,V199208-199410

TAUPE,TRIM9#

87816SPRING, INNER REAR VIEW MIRROR

main74372-50010iUCF10198912-199410

87908BMIRROR SUB-ASSY, RH

main87931-50020iUCF10..EUR,GEN,V198912-199410

main87931-50120iUCF10..ARL198912-199208

main87931-50160iUCF10..ARL199208-199410

87909BMIRROR SUB-ASSY, LH

main87961-50020iUCF10198912-199410

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-50100-01iUCF10..LHD198912-199004

BLACK,202

main87910-50100-02iUCF10..LHD198912-199004

DEEP RED MICA,3H8

main87910-50100-03iUCF10..LHD198912-199004

BLUISH GRAY MICA M,172

main87910-50100-05iUCF10..LHD198912-199004

BEIGE METALLIC,4K9

main87910-50100-06iUCF10..LHD198912-199004

DARK BROWN MICA,4K8

main87910-50100-07iUCF10..LHD198912-199004

DARK GREEN M.I.O.,6K4

main87910-50100-08iUCF10..LHD..EUR198912-199004

WHITE PEARL MICA,051

main87910-50100-12iUCF10..LHD198912-199004

GRAYISH ROSE MICA M,3H9

main87910-50100-13iUCF10..LHD198912-199004

SUPER SILVER 3 M,176

main87910-50100-18iUCF10..V198912-199004

SUPER WHITE 4,050

main87910-50100-23iUCF10..LHD198912-199004

GRAY MICA METALLIC,180

main87910-50101-01iUCF10..LHD199004-199208

BLACK,202

main87910-50101-02iUCF10..LHD199004-199208

DARK RED MICA,3H8

main87910-50101-03iUCF10..LHD199004-199208

BLUEISH GRAY MICA M,172

main87910-50101-05iUCF10..LHD199004-199208

BEIGE M,4K9

main87910-50101-06iUCF10..LHD199004-199208

DARK BROWN MICA,4K8

main87910-50101-07iUCF10..LHD199004-199208

DARK GREEN M.I.O.,6K4

main87910-50101-08iUCF10..LHD..EUR199004-199208

WHITE PEARL MICA,051

main87910-50101-12iUCF10..LHD199004-199208

GRAYISH ROSE MICA M,3H9

main87910-50101-13iUCF10..LHD199004-199208

SUPER SILVER 3 M,176

main87910-50101-18iUCF10..V199004-199012

SUPER WHITE 4,050

main87910-50101-23iUCF10..LHD199004-199208

GRAY MICA M,180

main87910-50110-01iUCF10..RHD..(EUR,GEN)198912-199004

BLACK,202

main87910-50110-02iUCF10..RHD..(EUR,GEN)198912-199004

DEEP RED MICA,3H8

main87910-50110-03iUCF10..RHD..(EUR,GEN)198912-199004

BLUISH GRAY MICA M,172

main87910-50110-05iUCF10..RHD..(EUR,GEN)198912-199004

BEIGE METALLIC,4K9

main87910-50110-06iUCF10..RHD..(EUR,GEN)198912-199004

DARK BROWN MICA,4K8

main87910-50110-07iUCF10..RHD..EUR198912-199004

DARK GREEN M.I.O.,6K4

main87910-50110-08iUCF10..RHD..EUR198912-199004

WHITE PEARL MICA,051

main87910-50110-12iUCF10..RHD..(EUR,GEN)198912-199004

GRAYISH ROSE MICA M,3H9

main87910-50110-13iUCF10..RHD..(EUR,GEN)198912-199004

SUPER SILVER 3 M,176

main87910-50110-18iUCF10..GEN198912-199004

SUPER WHITE 4,050

main87910-50110-23iUCF10..RHD..(EUR,GEN)198912-199004

GRAY MICA METALLIC,180

main87910-50111-01iUCF10..RHD..(EUR,GEN)199004-199208

BLACK,202

main87910-50111-02iUCF10..RHD..(EUR,GEN)199004-199208

DARK RED MICA,3H8

main87910-50111-03iUCF10..RHD..(EUR,GEN)199004-199208

BLUEISH GRAY MICA M,172

main87910-50111-05iUCF10..RHD..(EUR,GEN)199004-199208

BEIGE M,4K9

main87910-50111-06iUCF10..RHD..(EUR,GEN)199004-199208

DARK BROWN MICA,4K8

main87910-50111-07iUCF10..RHD..EUR199004-199208

DARK GREEN M.I.O.,6K4

main87910-50111-08iUCF10..RHD..EUR199004-199208

WHITE PEARL MICA,051

main87910-50111-12iUCF10..RHD..(EUR,GEN)199004-199208

GRAYISH ROSE M,3H9

main87910-50111-13iUCF10..RHD..(EUR,GEN)199004-199208

SUPER SILVER 3 M,176

main87910-50111-18iUCF10..GEN199004-199012

SUPER WHITE 4,050

main87910-50111-23iUCF10..RHD..(EUR,GEN)199004-199208

GRAY MICA M,180

main87910-50120-01iUCF10..ARL198912-199208

BLACK,202

main87910-50120-02iUCF10..ARL198912-199208

DEEP RED MICA,3H8

main87910-50120-03iUCF10..ARL198912-199208

BLUISH GRAY MICA M,172

main87910-50120-05iUCF10..ARL198912-199208

BEIGE METALLIC,4K9

main87910-50120-06iUCF10..ARL198912-199004

DARK BROWN MICA,4K8

main87910-50120-07iUCF10..ARL199004-199208

DARK GREEN M.I.O.,6K4

main87910-50120-08iUCF10..ARL198912-199012

SUPER WHITE 4,050

main87910-50120-12iUCF10..ARL198912-199208

GRAYISH ROSE MICA M,3H9

main87910-50120-13iUCF10..ARL198912-199208

SUPER SILVER 3 M,176

main87910-50120-23iUCF10..ARL198912-199208

GRAY MICA METALLIC,180

main87910-50120-A0iUCF10..ARL199103-199208

WHITE PEARL MICA,051

main87910-50160-A0iUCF10..ARL199208-199410

SU.WHITE PM.,051

main87910-50160-B0iUCF10..ARL199208-199308

SUPER SILVER 3 M,176

main87910-50160-B1iUCF10..ARL199208-199410

GRAY MICA M,180

main87910-50160-B2iUCF10..ARL199308-199410

SILVER ME.,199

main87910-50160-C0iUCF10..ARL199208-199410

BLACK,202

main87910-50160-E0iUCF10..ARL199208-199410

LI.BE.BROWN ME,4K7

main87910-50160-E1iUCF10..ARL199208-199410

BEIGE MM,4K9

main87910-50160-G0iUCF10..ARL199208-199410

DK.GREEN MI,6K4

main87910-50160-J0iUCF10..ARL199208-199410

DK.BLUE MCFP,8J5

main87910-50170-A0iUCF10..LHD199208-199410

SUPER WHITE PM.,051

main87910-50170-B0iUCF10..LHD199208-199308

SUPER SILVER 3 M,176

main87910-50170-B1iUCF10..LHD199208-199410

GRAY MICA M,180

main87910-50170-B2iUCF10..LHD199308-199410

SILVER ME.,199

main87910-50170-C0iUCF10..LHD199208-199410

BLACK,202

main87910-50170-E0iUCF10..LHD199208-199410

LI.RE.BROWN ME,4K7

main87910-50170-E1iUCF10..LHD199208-199410

BEIGE MM,4K9

main87910-50170-G0iUCF10..LHD199208-199410

DK.GREEN MI,6K4

main87910-50170-J0iUCF10..LHD199208-199410

DK.BLUE MCFP,8J5

main87910-50180-A0iUCF10..RHD..(EUR,GEN)199208-199410

SU.WHITE PM.,051

main87910-50180-B0iUCF10..RHD..(EUR,GEN)199208-199308

SUPER SILVER 3 M,176

main87910-50180-B1iUCF10..RHD..(EUR,GEN)199208-199410

GRAY MICA M,180

main87910-50180-B2iUCF10..RHD..(EUR,GEN)199308-199410

SILVER ME.,199

main87910-50180-C0iUCF10..RHD..(EUR,GEN)199208-199410

BLACK,202

main87910-50180-E0iUCF10..RHD..(EUR,GEN)199208-199410

LI.RE.BROWN ME,4K7

main87910-50180-E1iUCF10..RHD..(EUR,GEN)199208-199410

BEIGE MM,4K9

main87910-50180-G0iUCF10..RHD..(EUR,GEN)199208-199410

DK.GREEN MI,6K4

main87910-50180-J0iUCF10..RHD..(EUR,GEN)199208-199410

DK.BLUE MCFP,8J5

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-50100-01iUCF10..LHD198912-199004

BLACK,202

main87940-50100-02iUCF10..LHD198912-199004

DEEP RED MICA,3H8

main87940-50100-03iUCF10..LHD198912-199004

BLUISH GRAY MICA M,172

main87940-50100-05iUCF10..LHD198912-199004

BEIGE METALLIC,4K9

main87940-50100-06iUCF10..LHD198912-199004

DARK BROWN MICA,4K8

main87940-50100-07iUCF10..LHD198912-199004

DARK GREEN M.I.O.,6K4

main87940-50100-08iUCF10..LHD..EUR198912-199004

WHITE PEARL MICA,051

main87940-50100-12iUCF10..LHD198912-199004

GRAYISH ROSE MICA M,3H9

main87940-50100-13iUCF10..LHD198912-199004

SUPER SILVER 3 M,176

main87940-50100-18iUCF10..V198912-199004

SUPER WHITE 4,050

main87940-50100-23iUCF10..LHD198912-199004

GRAY MICA METALLIC,180

main87940-50101-01iUCF10..LHD199004-199208

BLACK,202

main87940-50101-02iUCF10..LHD199004-199208

DARK RED MICA,3H8

main87940-50101-03iUCF10..LHD199004-199208

BLUEISH GRAY MICA M,172

main87940-50101-05iUCF10..LHD199004-199208

BEIGE M,4K9

main87940-50101-06iUCF10..LHD199004-199208

DARK BROWN MICA,4K8

main87940-50101-07iUCF10..LHD199004-199208

DARK GREEN M.I.O.,6K4

main87940-50101-08iUCF10..LHD..EUR199004-199208

WHITE PEARL MICA,051

main87940-50101-12iUCF10..LHD199004-199208

GRAY ROSE MICA M,3H9

main87940-50101-13iUCF10..LHD199004-199208

SUPER SILVER 3 M,176

main87940-50101-18iUCF10..V199004-199012

SUPER WHITE 4,050

main87940-50101-23iUCF10..LHD199004-199208

GRAY MICA M,180

main87940-50110-01iUCF10..RHD198912-199004

BLACK,202

main87940-50110-02iUCF10..RHD198912-199004

DEEP RED MICA,3H8

main87940-50110-03iUCF10..RHD198912-199004

BLUISH GRAY MICA M,172

main87940-50110-05iUCF10..RHD198912-199004

BEIGE METALLIC,4K9

main87940-50110-06iUCF10..RHD198912-199004

DARK BROWN MICA,4K8

main87940-50110-07iUCF10..RHD..EUR198912-199004

DARK GREEN M.I.O.,6K4

main87940-50110-08iUCF10..RHD..EUR198912-199004

WHITE PEARL MICA,051

main87940-50110-12iUCF10..RHD198912-199004

GRAYISH ROSE MICA M,3H9

main87940-50110-13iUCF10..RHD198912-199004

SUPER SILVER 3 M,176

main87940-50110-18iUCF10..ARL,GEN198912-199004

SUPER WHITE 4,050

main87940-50110-23iUCF10..RHD198912-199004

GRAY MICA M,180

main87940-50111-01iUCF10..RHD199004-199208

BLACK,202

main87940-50111-02iUCF10..RHD199004-199208

DARK RED MKICA,3H8

main87940-50111-03iUCF10..RHD199004-199208

BLUEISH GRAY MICA M,172

main87940-50111-05iUCF10..RHD199004-199208

BEIGE M,4K9

main87940-50111-06iUCF10..RHD..(EUR,GEN)199004-199208

DARK BROWN MICA,4K8

main87940-50111-07iUCF10..RHD199103-199208

DARK GREEN M.I.O.,6K4

main87940-50111-08iUCF10..RHD199103-199208

WHITE PEARL MICA,051

main87940-50111-12iUCF10..RHD199004-199208

GRAYISH ROSE MICA M,3H9

main87940-50111-13iUCF10..RHD199004-199208

SUPER SILVER 3 M,176

main87940-50111-18iUCF10..ARL,GEN199004-199012

SUPER WHITE 4,050

main87940-50111-23iUCF10..RHD199004-199208

GRAY MICA M,180

main87940-50170-A0iUCF10..LHD199208-199410

SU.WHITE PM.,051

main87940-50170-B0iUCF10..LHD199208-199308

SUPER SILVER 3 M,176

main87940-50170-B1iUCF10..LHD199208-199410

GRAY MICA M,180

main87940-50170-B2iUCF10..LHD199308-199410

SILVER ME.,199

main87940-50170-C0iUCF10..LHD199208-199410

BLACK,202

main87940-50170-E0iUCF10..LHD199208-199410

LI.RE.BROWN ME,4K7

main87940-50170-E1iUCF10..LHD199208-199410

BEIGE MM,4K9

main87940-50170-G0iUCF10..LHD199208-199410

DK.GREEN MI,6K4

main87940-50170-J0iUCF10..LHD199208-199410

DK.BLUE MCFP,8J5

main87940-50180-A0iUCF10..RHD199208-199410

SU.WHITE PM.,051

main87940-50180-B0iUCF10..RHD199208-199308

SUPER SILVER 3 M,176

main87940-50180-B1iUCF10..RHD199208-199410

GRAY MICA M,180

main87940-50180-B2iUCF10..RHD199308-199410

SILVER ME.,199

main87940-50180-C0iUCF10..RHD199208-199410

BLACK,202

main87940-50180-E0iUCF10..RHD199208-199410

LI.RE.BROWN ME,4K7

main87940-50180-E1iUCF10..RHD199208-199410

BEIGE MM,4K9

main87940-50180-G0iUCF10..RHD199208-199410

DK.GREEN MI,6K4

main87940-50180-J0iUCF10..RHD199208-199410

DK.BLUE MCFP,8J5

9014950050

main90149-50050

9015940199

main90159-40199

9015950260

main90159-50260

9354013008

main93540-13008

10 parts on this diagram · 1 diagram in section
