Toyota 151330 — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85168NUT, WINDSHIELD WIPER LINK PIVOT
85178NUT (FOR FRONT WIPER ARM SETTING)
85190ARM ASSY, WINDSHIELD WIPER
85220BLADE ASSY, WINDSHIELD WIPER
85221BLADE, WINDSHIELD WIPER
85293STEP, LINEAR WIPER, RH
85294STEP, LINEAR WIPER, LH
8514512630
9011906471
9016840027
9016840057
9338516014
16 parts on this diagram · 1 diagram in section

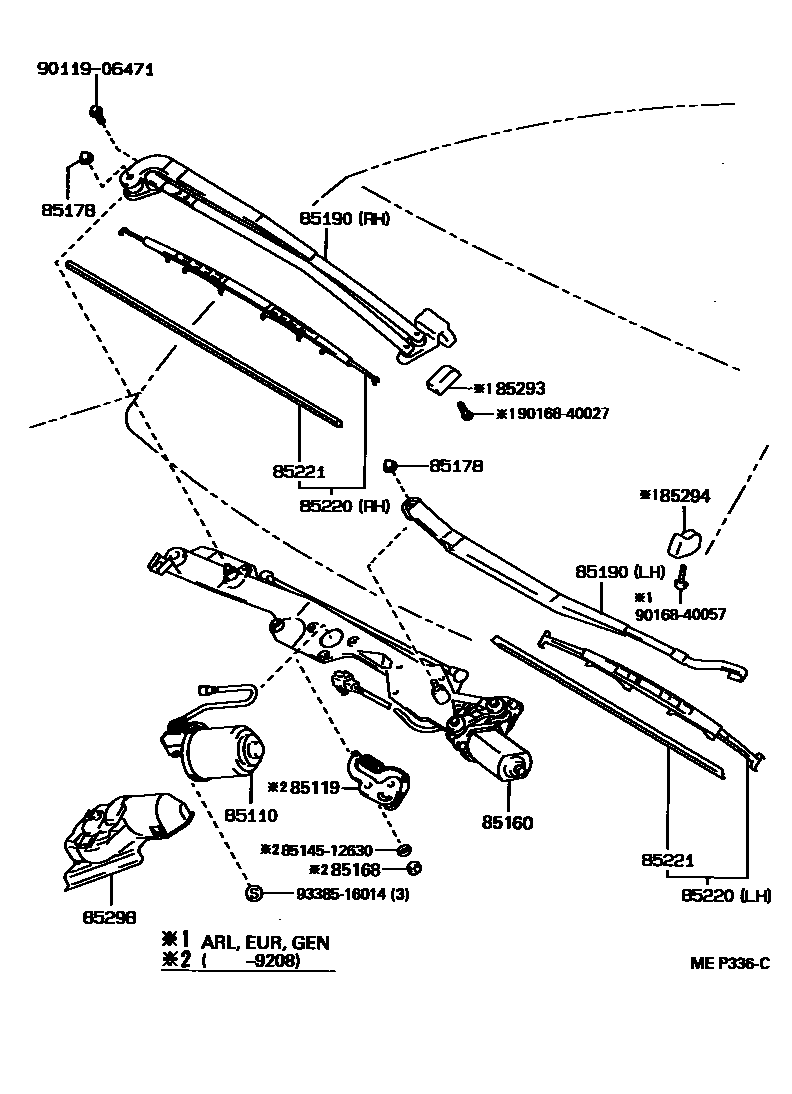

WINDSHIELD WIPER for Toyota 151330
This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota 151330. Key components include: MOTOR ASSY, WINDSHIELD WIPER, CRANK, WINDSHIELD WIPER MOTOR, LINK ASSY, WINDSHIELD WIPER, NUT, WINDSHIELD WIPER LINK PIVOT, NUT (FOR FRONT WIPER ARM SETTING).
