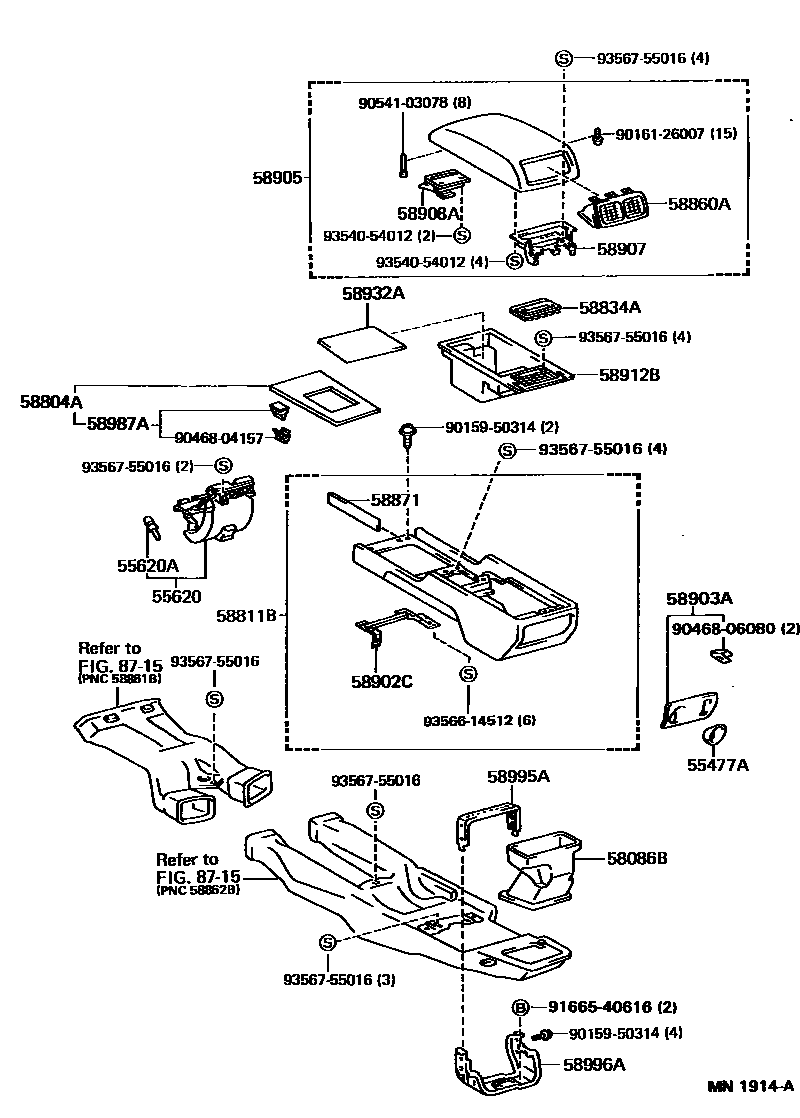

CONSOLE BOX & BRACKET

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-50010iUCF10198912-199410

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-50011-02iUCF10..V198912-199108

DEEP RED,TRIM3#

sub55620-50012

main55620-50011-03iUCF10198912-199110

SHADOW GRAY,TRIM1#

sub55620-50012

main55620-50011-04iUCF10198912-199110

DARK BLUE,TRIM8#

sub55620-50012

main55620-50011-05iUCF10198912-199110

GREIGE,TRIM0#

sub55620-50012

main55620-50011-06iUCF10198912-199110

DARK ROSE,TRIM4#

sub55620-50012

main55620-50012-C0iUCF10..EUR199208-199410

BLACK,TRIM2#

sub55620-50012

main55620-50012-E0iUCF10199208-199410

OAK,TRIM0#

sub55620-50012

main55620-50012-E2iUCF10199110-199208

GREIGE,TRIM0#

sub55620-50012

main55620-50012-E4iUCF10199110-199208

DARK ROSE,TRIM4#

sub55620-50012

main55620-50012-K0iUCF10..ARL,GEN,V199208-199410

TAUPE,TRIM9#

sub55620-50012

main55620-50012-P0iUCF10199110-199410

SHADOW GRAY,TRIM1#

sub55620-50012

main55620-50012-W3iUCF10199110-199410

DARK BLUE,TRIM8#

sub55620-50012

55620ACUSHION(FOR CUP HOLDER)

main90541-02008-02iUCF10..V198912-199108

DEEP RED,TRIM3#

sub90541-02008

main90541-02008-03iUCF10198912-199208

SHADOW GRAY,TRIM1#

sub90541-02008

main90541-02008-04iUCF10198912-199208

DARK BLUE,TRIM8#

sub90541-02008

main90541-02008-05iUCF10198912-199208

GREIGE,TRIM0#

sub90541-02008

main90541-02008-06iUCF10198912-199208

DARK ROSE,TRIM4#

sub90541-02008

main90541-02008-B0iUCF10199208-199410

SHADOW GRAY,TRIM1#

sub90541-02008

main90541-02008-C0iUCF10..EUR199208-199410

BLACK,TRIM2#

sub90541-02008

main90541-02008-E0iUCF10199208-199410

OAK,TRIM0#

sub90541-02008

main90541-02008-J0iUCF10199208-199410

DK. BLUE,TRIM8#

sub90541-02008

main90541-02008-K0iUCF10..ARL,GEN,V199208-199410

TAUPE,TRIM9#

sub90541-02008

58086BDUCT SUB-ASSY, CONSOLE BOX

main58086-50010iUCF10198912-199410

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-50010iUCF10198912-199410

58811BBOX, CONSOLE

main58801-50010-02iUCF10..V198912-199104

DEEP RED,TRIM3#

sub58801-50011

main58801-50010-03iUCF10198912-199104

SHADOW GRAY,TRIM1#

sub58801-50011

main58801-50010-04iUCF10198912-199104

DARK BLUE,TRIM8#

sub58801-50011

main58801-50010-05iUCF10198912-199104

GREIGE,TRIM0#

sub58801-50011

main58801-50010-06iUCF10198912-199104

DARK ROSE,TRIM4#

sub58801-50011

main58801-50011-C0iUCF10..EUR199208-199211

BLACK,TRIM2#

sub58801-50012

main58801-50011-D5iUCF10..V199104-199108

DEEP RED,TRIM3#

sub58801-50012

main58801-50011-E0iUCF10199208-199211

OAK,TRIM0#

sub58801-50012

main58801-50011-E2iUCF10199104-199208

GREIGE,TRIM0#

sub58801-50012

main58801-50011-E4iUCF10199104-199208

DARK ROSE,TRIM4#

sub58801-50012

main58801-50011-K0iUCF10..ARL,GEN,V199208-199211

TAUPE,TRIM9#

sub58801-50012

main58801-50011-P0iUCF10199104-199211

SHADOW GRAY,TRIM1#

sub58801-50012

main58801-50011-W3iUCF10199104-199211

DARK BLUE,TRIM8#

sub58801-50012

main58801-50012-C0iUCF10..EUR199211-199410

BLACK,TRIM2#

main58801-50012-E0iUCF10199211-199410

OAK,TRIM0#

main58801-50012-K0iUCF10..ARL,GEN,V199211-199410

TAUPE,TRIM9#

main58801-50012-P0iUCF10199211-199410

SHADOW GRAY,TRIM1#

main58801-50012-W3iUCF10199211-199410

DK. BLUE,TRIM8#

58834ACOVER, CONSOLE, LOWER

main58834-50010iUCF10198912-199410

58860AREGISTER ASSY, CONSOLE BOX

main58860-50010-02iUCF10..V198912-199108

DEEP RED,TRIM3#

sub58860-50010

main58860-50010-03iUCF10198912-199208

GRAY,TRIM1#

sub58860-50010

main58860-50010-04iUCF10198912-199208

BLUE,TRIM8#

sub58860-50010

main58860-50010-06iUCF10198912-199208

ROSE,TRIM4#

sub58860-50010

main58860-50010-08iUCF10198912-199208

IVORY,TRIM0#

sub58860-50010

main58860-50010-A0iUCF10199208-199410

IVORY,TRIM0#

sub58860-50010

main58860-50010-C0iUCF10..EUR199208-199410

BLACK,TRIM2#

sub58860-50010

main58860-50010-K0iUCF10..ARL,GEN,V199208-199410

ME. TAUPE,TRIM9#

sub58860-50010

main58860-50010-S7iUCF10199208-199410

SLATE GRAY,TRIM1#

sub58860-50010

main58860-50010-W4iUCF10199208-199410

EISEN BLUE,TRIM8#

sub58860-50010

58871CUSHION, CONSOLE BOX

main58871-50010iUCF10198912-199211

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-50010iUCF10198912-199211

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-50010-02iUCF10..V198912-199108

DEEP RED,TRIM3#

sub58903-50010

main58903-50010-03iUCF10..LHD198912-199208

SHADOW GRAY,TRIM1#

sub58903-50010

main58903-50010-04iUCF10..LHD198912-199208

DARK BLUE,TRIM8#

sub58903-50010

main58903-50010-05iUCF10..LHD198912-199208

GREIGE,TRIM0#

sub58903-50010

main58903-50010-06iUCF10..LHD198912-199208

DARK ROSE,TRIM4#

sub58903-50010

main58903-50010-C0iUCF10..LHD..EUR199208-199410

BLACK,TRIM2#

sub58903-50010

main58903-50010-E0iUCF10..LHD199208-199410

OAK,TRIM0#

sub58903-50010

main58903-50010-K0iUCF10..V199208-199410

TAUPE,TRIM9#

sub58903-50010

main58903-50010-P0iUCF10..LHD199208-199410

SHADOW GRAY,TRIM1#

sub58903-50010

main58903-50010-W3iUCF10..LHD199208-199410

DK. BLUE,TRIM8#

sub58903-50010

main58903-50020-03iUCF10..RHD198912-199208

SHADOW GRAY,TRIM1#

sub58903-50020

main58903-50020-04iUCF10..RHD198912-199208

DARK BLUE,TRIM8#

sub58903-50020

main58903-50020-05iUCF10..RHD198912-199208

GREIGE,TRIM0#

sub58903-50020

main58903-50020-06iUCF10..RHD198912-199208

DARK ROSE,TRIM4#

sub58903-50020

main58903-50020-C0iUCF10..RHD..EUR199208-199410

BLACK,TRIM2#

sub58903-50020

main58903-50020-E0iUCF10..RHD199208-199410

OAK,TRIM0#

sub58903-50020

main58903-50020-K0iUCF10..ARL,GEN199208-199410

TAUPE,TRIM9#

sub58903-50020

main58903-50020-P0iUCF10..RHD199208-199410

SHADOW GRAY,TRIM1#

sub58903-50020

main58903-50020-W3iUCF10..RHD199208-199410

DK. BLUE,TRIM8#

sub58903-50020

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-50010-02iUCF10..V198912-199108

W(LEATHER SEAT),DEEP RED,TRIM3#

sub58905-50010

sub58905-50070

main58905-50010-03iUCF10198912-199208

W(LEATHER SEAT),GRAY,TRIM1#

sub58905-50010

sub58905-50070

main58905-50010-04iUCF10198912-199208

W(LEATHER SEAT),BLUE,TRIM8#

sub58905-50010

sub58905-50070

main58905-50010-06iUCF10198912-199208

W(LEATHER SEAT),ROSE,TRIM4#

sub58905-50010

sub58905-50070

main58905-50010-08iUCF10198912-199208

W(LEATHER SEAT),IVORY,TRIM0#

sub58905-50010

sub58905-50070

main58905-50010-A0iUCF10..GEN,V;UCF10..LHD..EUR199208-199410

IVORY,TRIM0#

sub58905-50010

sub58905-50070

main58905-50010-A0iUCF10..RHD..(ARL,EUR)199208-199410

W(LEATHER SEAT),IVORY,TRIM0#

sub58905-50010

sub58905-50070

main58905-50010-B0iUCF10..RHD199208-199406

W(LEATHER SEAT),SLATE GRAY,TRIM1#

sub58905-50010

sub58905-50070

main58905-50010-B0iUCF10..RHD199208-199406

SLATE GRAY,TRIM1#

sub58905-50010

sub58905-50070

main58905-50010-C0iUCF10..RHD..EUR199208-199410

BLACK,TRIM2#

sub58905-50010

sub58905-50070

main58905-50010-C0iUCF10..RHD..EUR199208-199410

W(LEATHER SEAT),BLACK,TRIM2#

sub58905-50010

sub58905-50070

main58905-50010-J0iUCF10..GEN,V;UCF10..LHD..EUR199208-199410

EISEN BLUE,TRIM8#

sub58905-50010

sub58905-50070

main58905-50010-J0iUCF10..RHD..(ARL,EUR)199208-199410

W(LEATHER SEAT),EISEN BLUE,TRIM8#

sub58905-50010

sub58905-50070

main58905-50010-K0iUCF10..ARL199208-199410

ME. TAUPE,TRIM9#

sub58905-50010

sub58905-50070

main58905-50010-K0iUCF10..ARL199208-199410

W(LEATHER SEAT),ME. TAUPE,TRIM9#

sub58905-50010

sub58905-50070

main58905-50020-02iUCF10..V198912-199108

DEEP RED,TRIM3#

sub58905-50020

main58905-50020-03iUCF10198912-199208

GRAY,TRIM1#

sub58905-50020

main58905-50020-04iUCF10198912-199208

BLUE,TRIM8#

sub58905-50020

main58905-50020-06iUCF10198912-199208

ROSE,TRIM4#

sub58905-50020

main58905-50020-B0iUCF10..GEN,V;UCF10..LHD..EUR199208-199410

SLATE GRAY,TRIM1#

sub58905-50020

main58905-50020-J0iUCF10..LHD199208-199410

EISEN BLUE,TRIM8#

sub58905-50020

main58905-50070-B0iUCF10..LHD199406-199410

GRAY,TRIM1#

sub58905-50010

main58905-50070-B0iUCF10..RHD199406-199410

W(LEATHER SEAT),GRAY,TRIM1#

sub58905-50010

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-50010iUCF10198912-199410

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-50010iUCF10198912-199410

58912BBOX, REAR CONSOLE, LOWER

main58912-50010iUCF10..ARL,V;UCF10..LHD..EUR198912-199410

main58912-50020iUCF10..RHD..(EUR,GEN)198912-199108

58932AGARNISH, REAR CONSOLE BOX

main58932-50010iUCF10198912-199410

58987ARETAINER, CONSOLE BOX, NO.2

main58987-50010iUCF10198912-199410

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-50010iUCF10198912-199105

sub58995-50011

main58995-50011iUCF10199105-199410

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-50010iUCF10198912-199410

8715

9015950314

main90159-50314

9016126007

main90161-26007

9046804157

main90468-04157

9046806080

main90468-06080

9054103078

main90541-03078

9166540616

main91665-40616

9354054012

main93540-54012

9356614512

main93566-14512

9356755016

main93567-55016

29 parts on this diagram · 1 diagram in section
