Toyota 151330 — FRONT DISC BRAKE CALIPER & DUST COVER

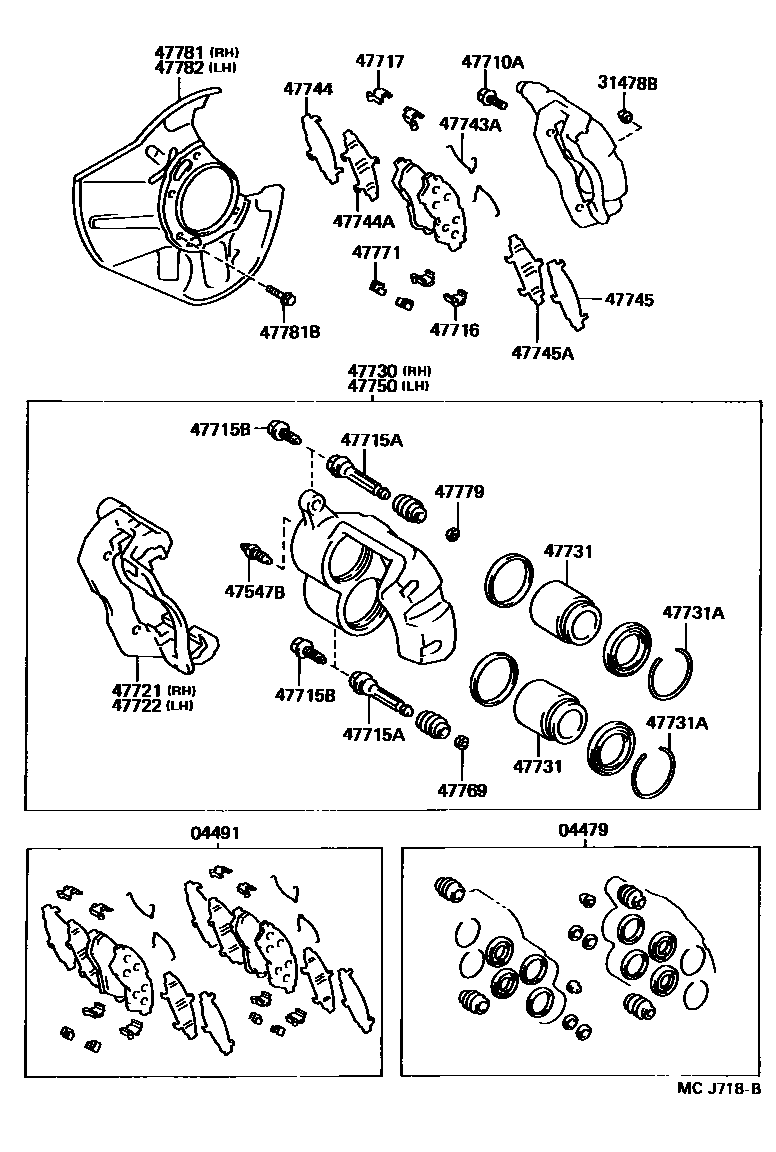

Parts diagram

04479CYLINDER KIT, DISC BRAKE, FRONT

04491PAD KIT, DISC BRAKE, FRONT

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

47731PISTON, FRONT DISC BRAKE

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

47750CYLINDER ASSY, DISC BRAKE, LH

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

47771PLATE, PAD WEAR INDICATOR, NO.1

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

47781COVER, DISC BRAKE DUST, FRONT RH

47781BBOLT(FOR DUST COVER SETTING)

47782COVER, DISC BRAKE DUST, FRONT LH

26 parts on this diagram · 3 diagrams in section

FRONT DISC BRAKE CALIPER & DUST COVER for Toyota 151330

This section contains 43 genuine Toyota parts for the FRONT DISC BRAKE CALIPER & DUST COVER system of the Toyota 151330. Key components include: PAD KIT, DISC BRAKE, FRONT, CYLINDER KIT, DISC BRAKE, FRONT, SHIM KIT, ANTI SQUEAL, FRONT, FITTING KIT, DISC BRAKE, FRONT.
