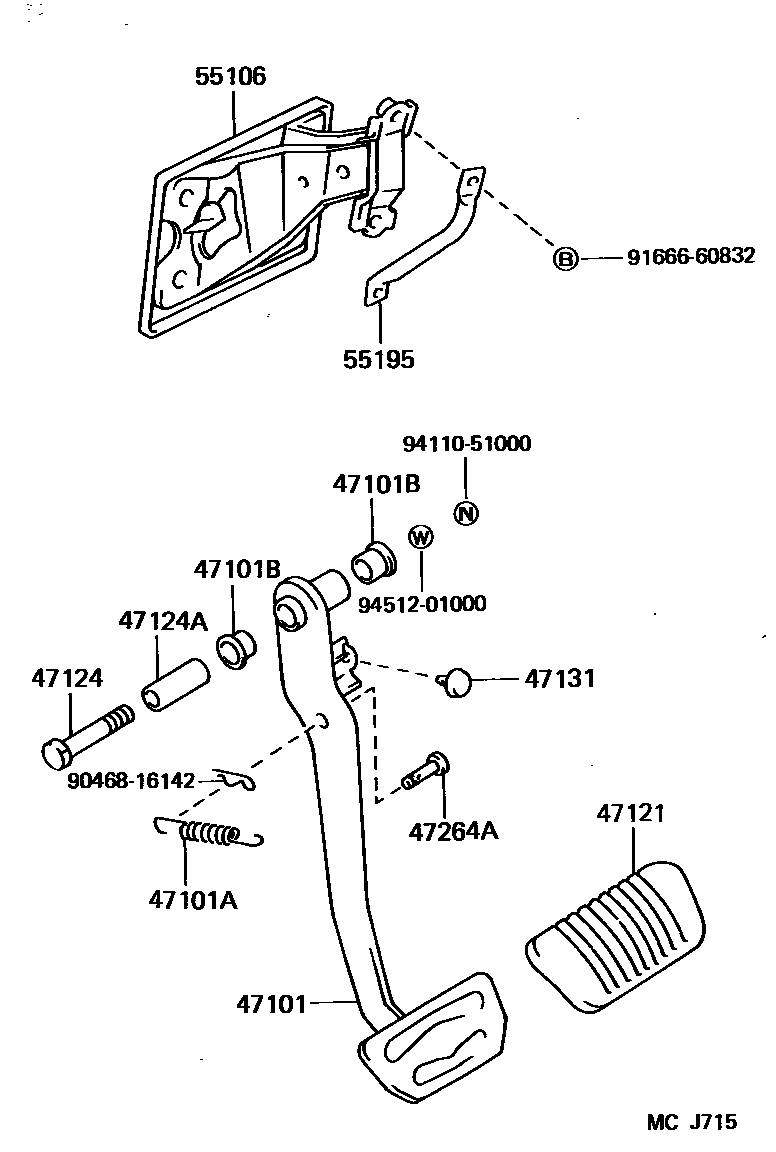

Toyota LEXUS LS400 — BRAKE PEDAL & BRACKET
47101ASPRING(FOR BRAKE PEDAL RETURN)
47101BBUSH(FOR BRAKE PEDAL)
47121PAD, BRAKE PEDAL
47124ACOLLAR(FOR BRAKE PEDAL SHAFT)
47264APIN(FOR PUSH ROD)
55106SUPPORT SUB-ASSY, BRAKE PEDAL
9046816142
9166660832
9411051000
9451201000
14 parts on this diagram · 2 diagrams in section
BRAKE PEDAL & BRACKET for Toyota LEXUS LS400
This section contains 14 genuine Toyota parts for the BRAKE PEDAL & BRACKET system of the Toyota LEXUS LS400. Key components include: PEDAL SUB-ASSY, BRAKE, SPRING(FOR BRAKE PEDAL RETURN), BUSH(FOR BRAKE PEDAL), PAD, BRAKE PEDAL, SHAFT, BRAKE PEDAL.
