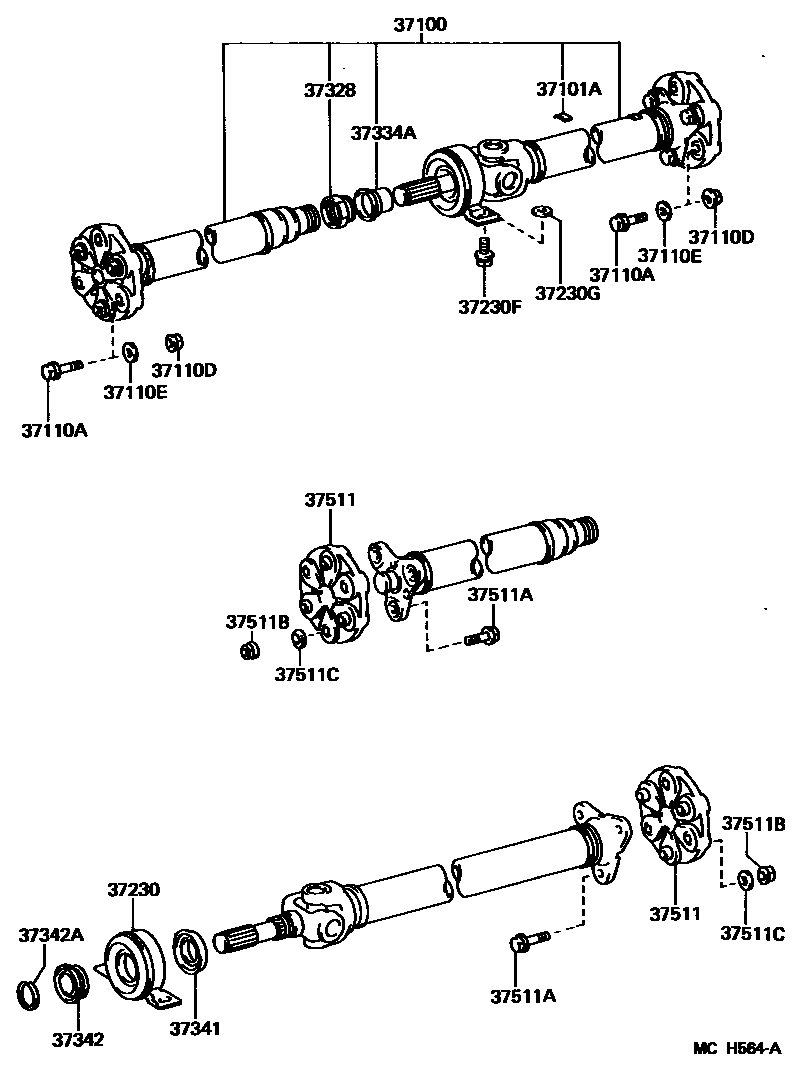

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-50010iUCF10198912-199208

main37100-50020iUCF10199208-199410

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01342iUCF10198912-199410

1G

main90937-01343iUCF10198912-199410

2G

main90937-01344iUCF10198912-199410

3G

main90937-01345iUCF10198912-199410

4G

main90937-01346iUCF10198912-199410

5G

main90937-01347iUCF10198912-199410

6G

main90937-01348iUCF10198912-199410

8G

main90937-01349iUCF10198912-199410

10G

main90937-01350iUCF10198912-199410

12G

main90937-01351iUCF10198912-199410

14G

main90937-01352iUCF10198912-199410

16G

main90937-01353iUCF10198912-199410

18G

main90937-01354iUCF10198912-199410

20G

main90937-01366iUCF10198912-199410

7G

main90937-01444iUCF10199208-199410

9G

main90937-01445iUCF10199208-199410

11G

main90937-01446iUCF10199208-199410

13G

main90937-01447iUCF10199208-199410

15G

main90937-01448iUCF10199208-199410

17G

main90937-01449iUCF10199208-199410

19G

main90937-01473iUCF10199306-199410

1.5G

main90937-01474iUCF10199306-199410

2.5G

main90937-01475iUCF10199306-199410

3.5G

main90937-01476iUCF10199306-199410

4.5G

37110ABOLT (FOR PROPELLER SHAFT)

main90105-12176×6iUCF10198912-199005

*12-1.25PX59.5-15,68G

main90105-12177×6iUCF10198912-199208

*12-1.25PX56-15,67G,NO MARK

main90105-12202×6iUCF10198912-199208

*12-1.25PX56-15,68G,MARK 1

main90105-12203×6iUCF10198912-199208

*12-1.25PX56-15,69G,MARK 2

main90105-12204×6iUCF10198912-199208

*12-1.25PX56-15,71G,MARK 4

main90105-12205×6iUCF10198912-199208

*12-1.25PX56-15,70G,MARK 3

main90105-12206×6iUCF10198912-199208

*12-1.25PX56-15,75G,MARK 8

main90105-12242×6iUCF10199208-199410

*12-1.25PX56-20,*12-1.25PX56-20,67G,NO MARK

main90105-12246×6iUCF10199208-199410

*12-1.25PX56-15,68G,MARK 1

main90105-12247×6iUCF10199208-199410

*12-1.25PX56-15,69G,MARK 2

main90105-12248×6iUCF10199208-199410

*12-1.25PX56-15,71G,MARK 4

main90105-12249×6iUCF10199208-199410

*12-1.25PX56-15,70G,MARK 3

main90105-12250×6iUCF10199208-199410

*12-1.25PX56-15,75G,MARK 8

37110DNUT (FOR PROPELLER SHAFT)

main90179-12080×6iUCF10198912-199302

main90179-12128×6iUCF10199302-199410

37110EWASHER (FOR PROPELLER SHAFT)

main90201-12058×6iUCF10198912-199303

main90560-12059×6iUCF10199303-199410

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-30110iUCF10198912-199208

main37230-50011iUCF10199208-199410

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10133×2iUCF10198912-199410

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008×2iUCF10198912-199410

T=4.5

main90201-10017×2iUCF10198912-199410

T=9.0

main90201-10033×2iUCF10198912-199410

T=6.5

main90201-10034×2iUCF10198912-199410

T=11.0

main90201-10035×2iUCF10198912-199410

T=13.5

main90201-10106×2iUCF10199208-199410

T=2.0

37328NUT, PROPELLER SHAFT ADJUSTING

main37328-50010iUCF10198912-199410

37334ABOOT, SLIDING SHAFT

main37334-50010iUCF10198912-199410

37341DEFLECTOR, PROPELLER SHAFT DUST, NO.1

main37341-22010iUCF10198912-199410

37342DEFLECTOR, PROPELLER SHAFT DUST, NO.2

main37342-50010iUCF10198912-199410

37342ARING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2)

main90520-28009iUCF10198912-199410

37511COUPLING, FLEXIBLE

main37511-50010iUCF10198912-199005

FR

main37511-50020iUCF10198912-199005

RR

main37511-50030×2iUCF10199208-199410

37511ABOLT (FOR FLEXIBLE COUPLING)

main90105-12176×3iUCF10198912-199005

*12-1.25PX59.5-15,FR

main90105-12177×3iUCF10198912-199005

*12-1.25PX56-15,RR

main90105-12242×6iUCF10199208-199410

*12-1.25PX56-20

37511BNUT (FOR FLEXIBLE COUPLING)

main90179-12080×6iUCF10198912-199302

main90179-12128×6iUCF10199302-199410

37511CWASHER, PLATE (FOR FLEXIBLE COUPLING)

main90201-12058×6iUCF10198912-199303

main90560-12059×6iUCF10199303-199410

17 parts on this diagram · 1 diagram in section
