TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

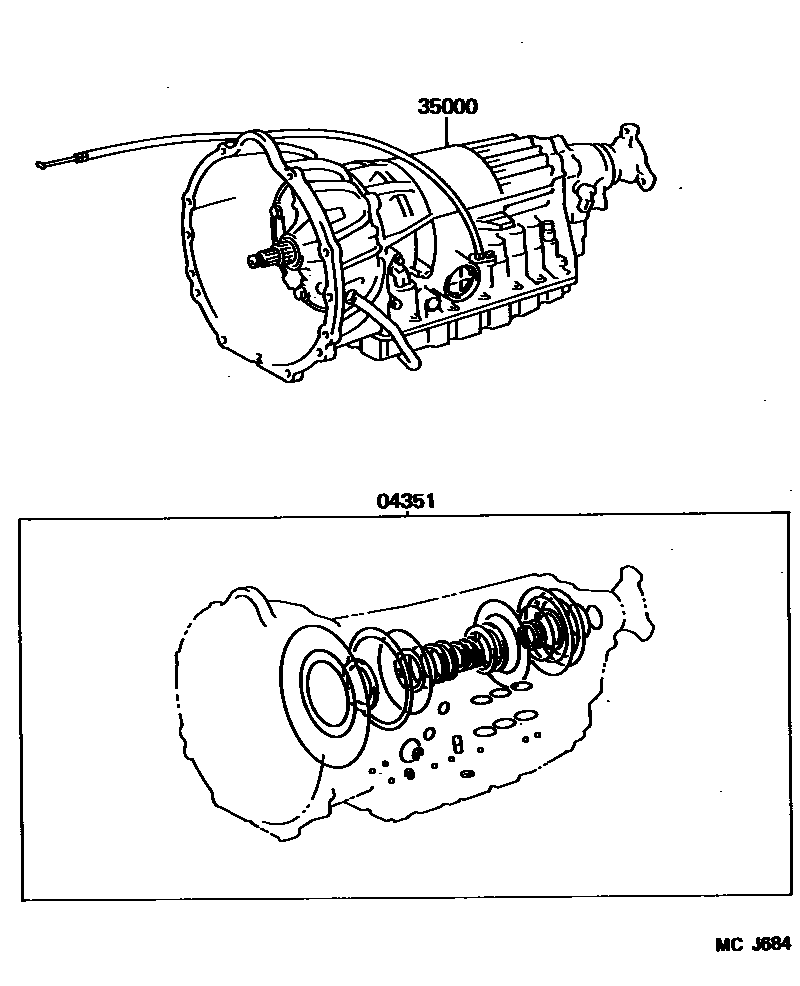

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-50010i198912-199410

main04351-50020i198912-199410

35000TRANSMISSION ASSY, AUTOMATIC

main35000-50011i198912-199003

main35000-50012i199003-199007

main35000-50013i199007-199208

main35000-50030i198912-199003

main35000-50031i199003-199007

main35000-50032i199007-199208

main35000-50060i199208-199410

main35000-50070i199208-199410

2 parts on this diagram · 1 diagram in section
