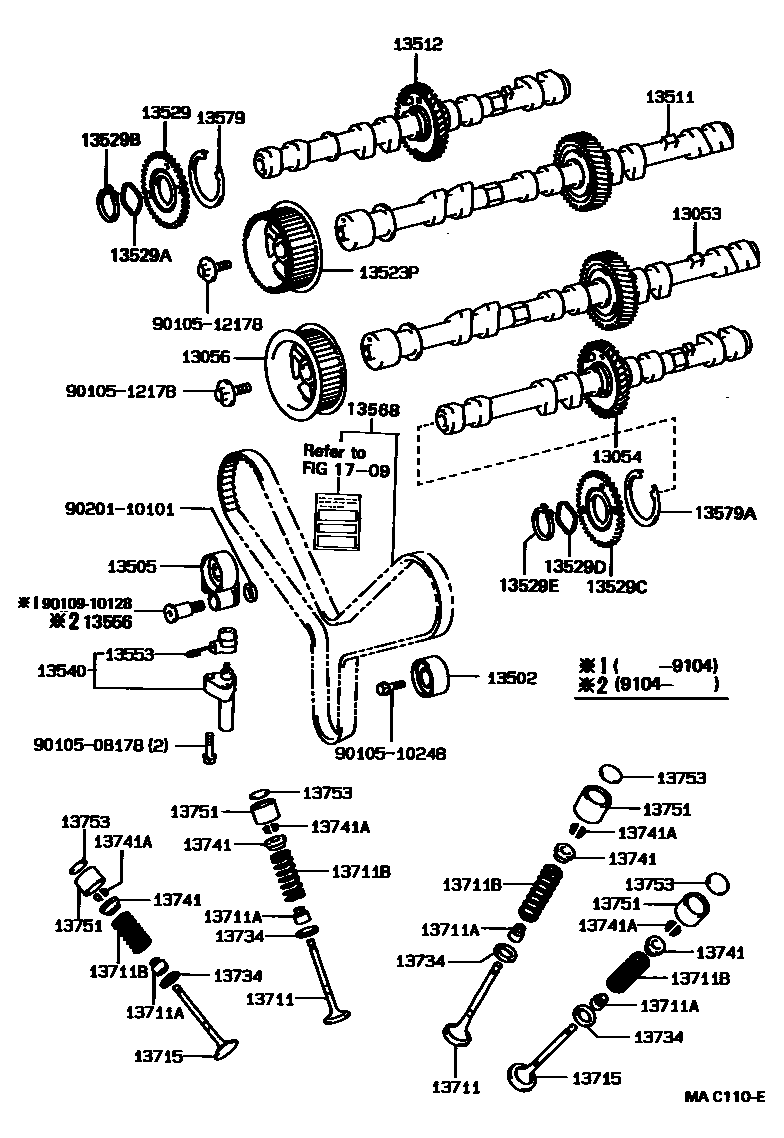

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
HONG KONG SPEC
HONG KONG SPEC
SINGAPORE SPEC
SINGAPORE SPEC
13054CAMSHAFT SUB-ASSY, NO.4
13056PULLEY SUB-ASSY, CAMSHAFT TIMING, LH
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
HONG KONG SPEC
SINGAPORE SPEC
SINGAPORE SPEC
13512CAMSHAFT, NO.2
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13540TENSIONER ASSY, CHAIN, NO.1
13553COVER, CHAIN TENSIONER DUST
13556SHAFT, TIMING BELT IDLER
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
13711VALVE, INTAKE
HONG KONG SPEC
SOUTH AFRICA SPEC
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
HONG KONG SPEC
SOUTH AFRICA SPEC
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50,MARK 01
T=2.60,MARK 06
T=2.70,MARK 13
T=2.75,MARK 18
T=2.80,MARK 23
T=2.85,MARK 28
T=2.90,MARK 33
T=2.95,MARK 38
T=3.00,MARK 43
T=3.05,MARK 48
T=3.10,MARK 51
T=3.20,MARK 56
T=3.30,MARK 61
T=2.525,MARK 62
T=2.55,MARK 63
T=2.575,MARK 64
T=2.625,MARK 65
T=2.65,MARK 66
T=2.675,MARK 67
T=2.725,MARK 68
T=2.775,MARK 69
T=2.825,MARK 70
T=2.875,MARK 71
T=2.925,MARK 72
T=2.975,MARK 73
T=3.025,MARK 74
T=3.075,MARK 75
T=3.125,MARK 76
T=3.15,MARK 77
T=3.175,MARK 78
T=3.225,MARK 79
T=3.25,MARK 80
T=3.275,MARK 81
1709CAUTION PLATE & NAME PLATE (ENGINE)
9010508178
main90105-08178
9010510248
main90105-10248
9010512178
main90105-12178
9010910128
main90109-10128
9020110101
main90201-10101
35 parts on this diagram · 1 diagram in section
