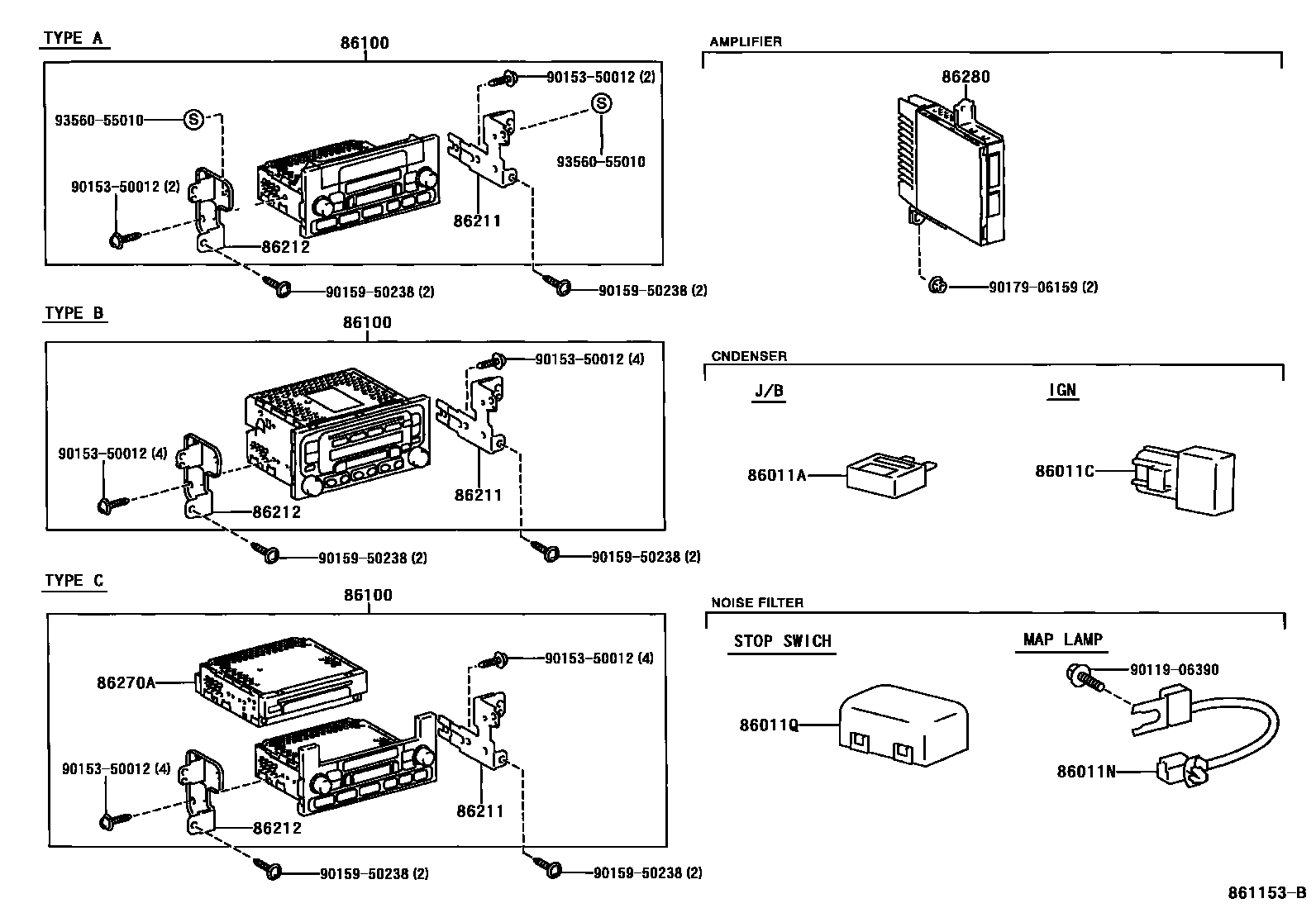

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1CD AUTO CHANGER 0005 1CONDENSER & NOISE FILTER

86011ACONDENSER, RADIO SETTING

main90980-04066iMCX10200004-200309

86011CFILTER, NOISE

main90980-04083iMCX10200004-200309

86011NFILTER, NOISE

main90084-98008iMCX10200004-200309

86011QCONDENSER, RADIO SETTING

main90084-98052iMCX10200004-200309

main90089-88002iMCX10200309

86100RADIO ASSY

main86100-YF010iMCX10..CONQ,CSX200004-200110

TYPE A:REFER TO ILLUSTRATION

main86100-YF020iMCX10..CSX,VXI200004-200209

TYPE B:REFER TO ILLUSTRATION

main86100-YF030iMCX10..GD200004-200209

TYPE B:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)

main86100-YF040iMCX10..CONQ200004-200309

TYPE C:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-YF010iMCX10200004-200309

main86211-YF030iMCX10200309

86212BRACKET, RADIO, NO.2

main86212-YF010iMCX10200004-200309

main86212-YF030iMCX10200309

86270ADISC PLAYER ASSY

main86270-YF010iMCX10..CONQ200004-200309

main86270-YF020iMCX10..GD200110-200309

CD AUTO CHANGER

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-YF010iMCX10..GD200004-200309

main86280-YF020iMCX10..GD200110-200309

W(MULTI AV STATION & NAVIGATION SYSTEM)

main86280-YF030iMCX10..VXI200209-200309

main86280-YF040iMCX10..GD200309

9011906390

main90119-06390

9015350012

main90153-50012

9015950238

main90159-50238

9017906159

main90179-06159

9356055010

main93560-55010

14 parts on this diagram · 5 diagrams in section
