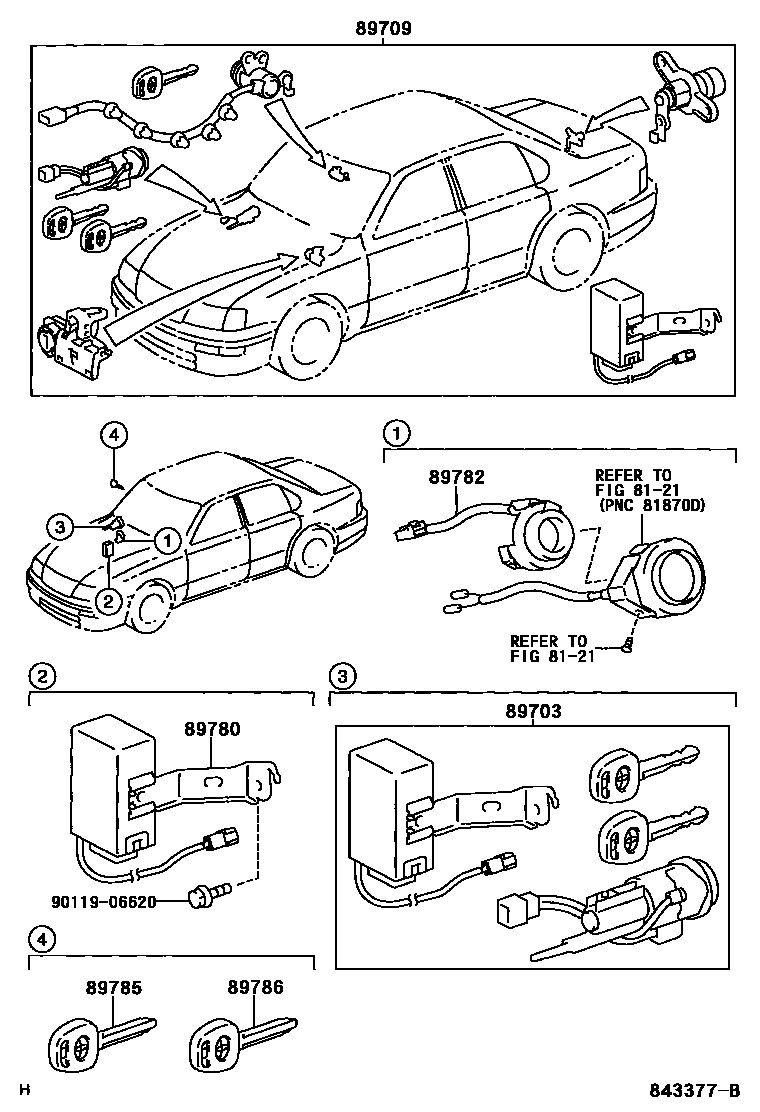

ANTI-THEFT DEVICE

0001 1IMMOBILIZER 0002 1THEFT WARNING SYSTEM

8121INTERIOR LAMP

→ Go to FIG 81-21

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-41050iMCX10..CONQ,CSX,VXI200004-200107

main89703-41051iMCX10..CONQ,CSX,VXI200107-200309

main89703-41060iMCX10..GD200004-200107

main89703-41061iMCX10..GD200107-200309

89709COMPUTER SET, TRANSPONDER KEY

main89709-41010iMCX10..CONQ,CSX200004-200107

main89709-41011iMCX10..CONQ,CSX200107-200309

main89709-41020iMCX10..VXI200004-200107

main89709-41021iMCX10..VXI200107-200309

main89709-41030iMCX10..GD200004-200107

main89709-41031iMCX10..GD200107-200309

main89709-41040iMCX10..CONQ,CSX200004-200107

W(ANTI-THEFT DEVICE:IMMOBILIZER & ALARM)

main89709-41041iMCX10..CONQ,CSX200107-200309

W(ANTI-THEFT DEVICE:IMMOBILIZER & ALARM)

main89709-41050iMCX10..CONQ200309

main89709-41060iMCX10..CONQ,CSX,VXI200309

W(ANTI-THEFT DEVICE:IMMOBILIZER & ALARM)

main89709-41070iMCX10..GD200309

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-41010iMCX10200004-200107

main89780-41011iMCX10200107-200309

89782COIL, TRANSPONDER KEY

main89782-41030iMCX10200004-200309

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-26020iMCX10200004-200309

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iMCX10200004-200309

9011906620

main90119-06620

8 parts on this diagram · 2 diagrams in section
