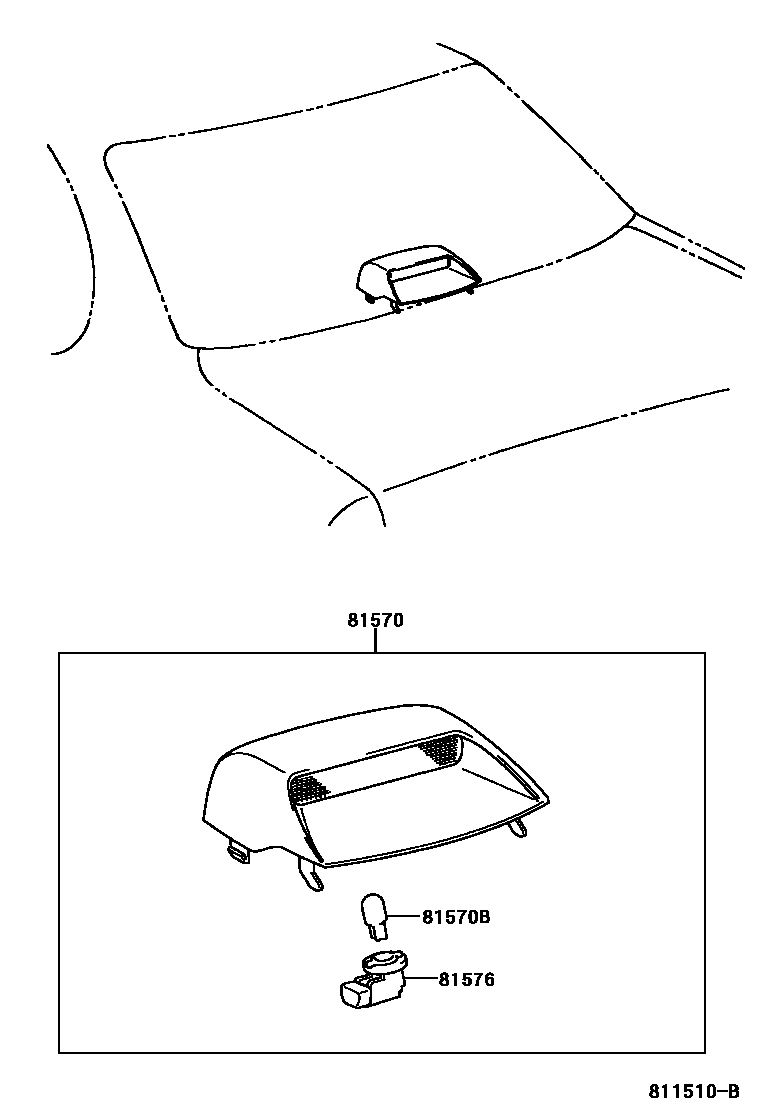

CENTER STOP LAMP
81570LAMP ASSY, CENTER STOP
TYPE B:REFER TO ILLUSTRATION,DK. STONE,TRIM1#
sub81570-AC010
TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM4#
sub81570-AC010
TYPE A:REFER TO ILLUSTRATION,DK. STONE,TRIM1#
TYPE A:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM4#
81570BBULB (FOR CENTER STOP LAMP)
12V 16W,TYPE B:REFER TO ILLUSTRATION
12V 21W,TYPE A:REFER TO ILLUSTRATION
81576SOCKET & WIRE, CENTER STOP LAMP
3 parts on this diagram · 2 diagrams in section
