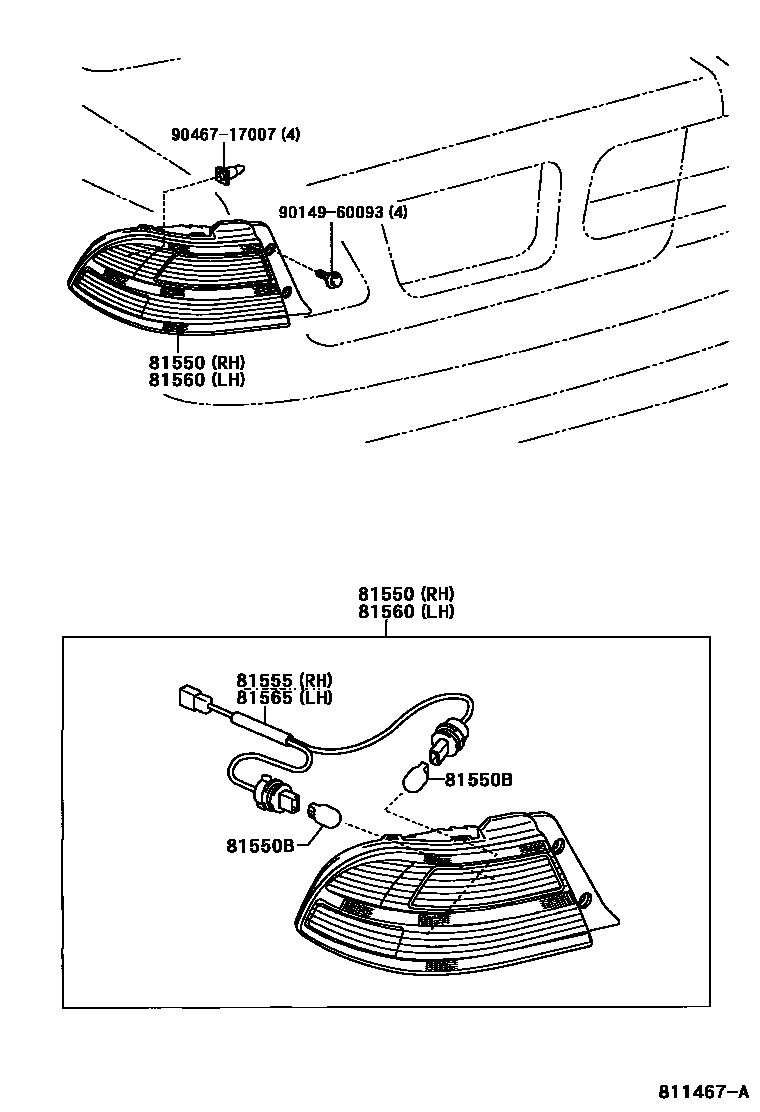

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-07020iMCX10200004-200309

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13050×2iMCX10200004-200309

12V 21W

main90981-13051×2iMCX10200004-200309

12V 21/5W

main99132-21210×2iMCX10200309

12V 21/5W,NO.1

main99132-8Y001×2iMCX10200309

12V 21W,YELLOW,NO.2

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-07020iMCX10200004-200309

main81555-8Y002iMCX10200309

81560LAMP ASSY, REAR COMBINATION, LH

main81560-07020iMCX10200004-200309

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-8Y002iMCX10200309

main81565-07020iMCX10200004-200309

9014960093

main90149-60093

9046717007

main90467-17007

7 parts on this diagram · 2 diagrams in section
