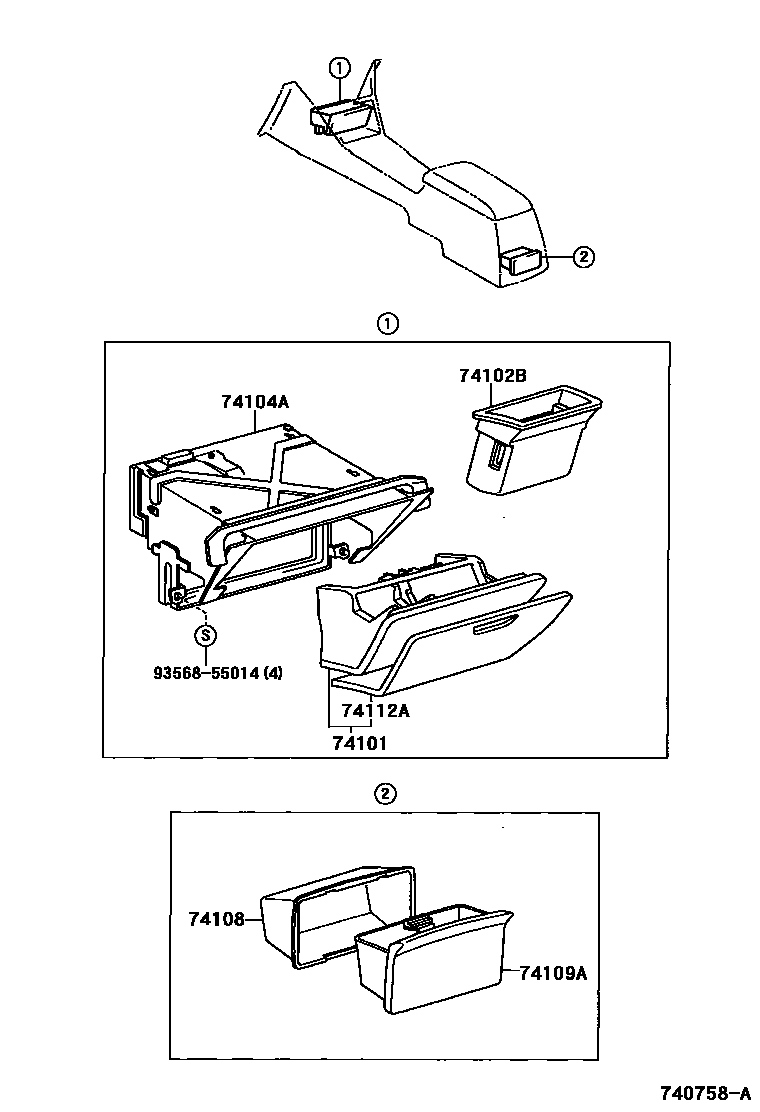

ASH RECEPTACLE

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-41020-B0iMCX10..CONQ,CSX200004-200506

STONE,TRIM1#

main74101-41020-E0iMCX10..CONQ,CSX200004-200309

FAWN,TRIM4#

main74101-41030-B0iMCX10..GD,VXI200004-200506

STONE,TRIM1#

main74101-41030-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-41010iMCX10200004-200309

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-41010iMCX10..GD,VXI200004-200309

main74104-41020iMCX10..CONQ,CSX200004-200309

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-YC010iMCX10200004-200309

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-YC010-B0iMCX10200004-200506

STONE,TRIM1#

main74109-YC010-E0iMCX10200004-200506

FAWN,TRIM4#

74112ADOOR, FRONT ASH RECEPTACLE

main74112-41010-B0iMCX10..GD,VXI200004-200506

STONE,TRIM1#

main74112-41010-E2iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

9356855014

main93568-55014

7 parts on this diagram · 1 diagram in section
