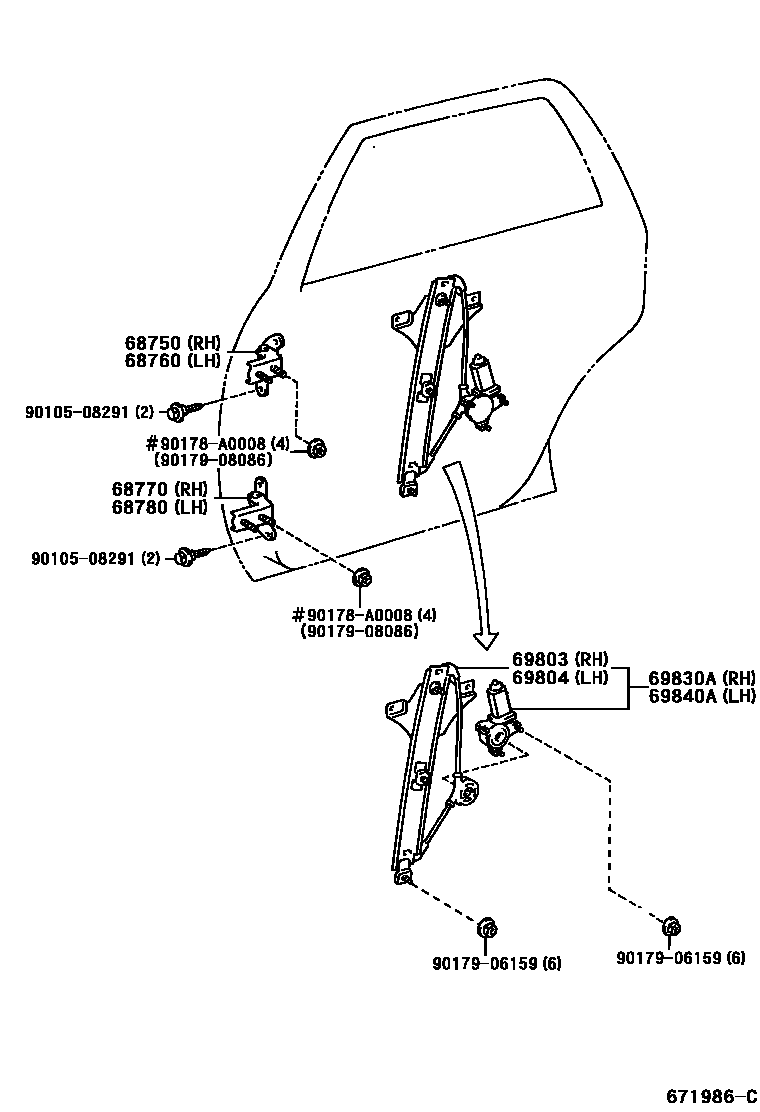

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-07010iMCX10200004-200309

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-07010iMCX10200004-200309

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-07010iMCX10200004-200309

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-07010iMCX10200004-200309

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-YF010iMCX10200004-200309

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-YF010iMCX10200004-200309

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-YF010iMCX10200004-200309

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-YF010iMCX10200004-200309

9010508291

main90105-08291

90178A0008

main90178-A0008

9017906159

main90179-06159

9017908086

main90179-08086

12 parts on this diagram · 1 diagram in section
