INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-YF010-B1iMCX10200004-200506

DK. STONE,TRIM1#

main62101-YF010-E1iMCX10..GD,VXI200004-200506

SANDAL WOOD,TRIM4#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06158-C0iMCX10..GD,VXI200004-200506

BLACK,TRIM1#,4#

main90467-06158-C0iMCX10..CONQ,CSX200309-200506

BLACK,TRIM1#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-YF010-B1iMCX10200004-200506

DK. STONE,TRIM1#

main62102-YF010-E1iMCX10200004-200506

SANDAL WOOD,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-YF010-B0iMCX10..CONQ,CSX200004-200506

STONE,TRIM1#

main62210-YF010-E0iMCX10..CONQ,CSX200004-200309

FAWN,TRIM4#

main62210-YF020-B0iMCX10..GD,VXI200004-200506

STONE,TRIM1#

main62210-YF020-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iMCX10200004-200309

62212GARNISH, FRONT PILLAR, LH

main62220-YF010-B0iMCX10..CONQ,CSX200004-200506

STONE,TRIM1#

main62220-YF010-E0iMCX10..CONQ,CSX200004-200309

FAWN,TRIM4#

main62220-YF020-B0iMCX10..GD,VXI200004-200506

STONE,TRIM1#

main62220-YF020-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-YF010iMCX10200004-200309

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-YF010iMCX10200004-200309

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-YF010iMCX10200004-200309

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-YF010iMCX10200004-200309

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-YF010iMCX10200004-200309

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-YF010iMCX10200004-200309

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-YF010-B0iMCX10..CONQ,CSX200004-200506

STONE,TRIM1#

main62410-YF010-E0iMCX10..CONQ,CSX200004-200309

FAWN,TRIM4#

main62410-YF020-B0iMCX10..GD,VXI200004-200506

STONE,TRIM1#

main62410-YF020-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-YF010-B0iMCX10..CONQ,CSX200004-200506

STONE,TRIM1#

main62420-YF010-E0iMCX10..CONQ,CSX200004-200309

FAWN,TRIM4#

main62420-YF020-B0iMCX10..GD,VXI200004-200506

STONE,TRIM1#

main62420-YF020-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-YF010-B0iMCX10200004-200101

STONE,TRIM1#

sub62413-YF011

main62413-YF010-E0iMCX10200004-200101

FAWN,TRIM4#

sub62413-YF011

main62413-YF011-B0iMCX10200101-200506

STONE,TRIM1#

main62413-YF011-E0iMCX10200101-200506

FAWN,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-YF010-B0iMCX10200004-200101

STONE,TRIM1#

sub62414-YF011

main62414-YF010-E0iMCX10200004-200101

FAWN,TRIM4#

sub62414-YF011

main62414-YF011-B0iMCX10200101-200506

STONE,TRIM1#

main62414-YF011-E0iMCX10..GD,VXI200101-200506

FAWN,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-YF010-B0iMCX10..CONQ,CSX200004-200506

STONE,TRIM1#

main62470-YF010-E0iMCX10..CONQ,CSX200004-200309

FAWN,TRIM4#

main62470-YF020-B0iMCX10..GD,VXI200004-200506

STONE,TRIM1#

main62470-YF020-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90089-46143iMCX10200004-200309

62472AGARNISH, ROOF SIDE, INNER LH

main62480-YF010-B0iMCX10..CONQ,CSX200004-200506

STONE,TRIM1#

main62480-YF010-E0iMCX10..CONQ,CSX200004-200309

FAWN,TRIM4#

main62480-YF020-B0iMCX10..GD,VXI200004-200506

STONE,TRIM1#

main62480-YF020-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-AC010iMCX10200004-200309

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-AC010iMCX10200004-200309

67913PLATE, FRONT DOOR SCUFF, RH

main67913-YF010-B0iMCX10200004-200506

STONE,TRIM1#

main67913-YF010-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-YF010-B0iMCX10200004-200506

STONE,TRIM1#

main67914-YF010-E0iMCX10..GD,VXI200004-200506

FAWN,TRIM4#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-AC010iMCX10200004-200309

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-AC010iMCX10200004-200309

67917APLATE, REAR DOOR SCUFF, RH

main67917-YF010-B0iMCX10200004-200506

STONE,TRIM1#

main67917-YF010-E0iMCX10200004-200506

FAWN,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-YF010-B0iMCX10200004-200506

STONE,TRIM1#

main67918-YF010-E0iMCX10200004-200506

FAWN,TRIM4#

7104

6792106010RETAINER, FRONT DOOR SCUFF PLATE

main67921-06010

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9008946143

main90089-46143

9046710161

main90467-10161

9046805077

main90468-05077

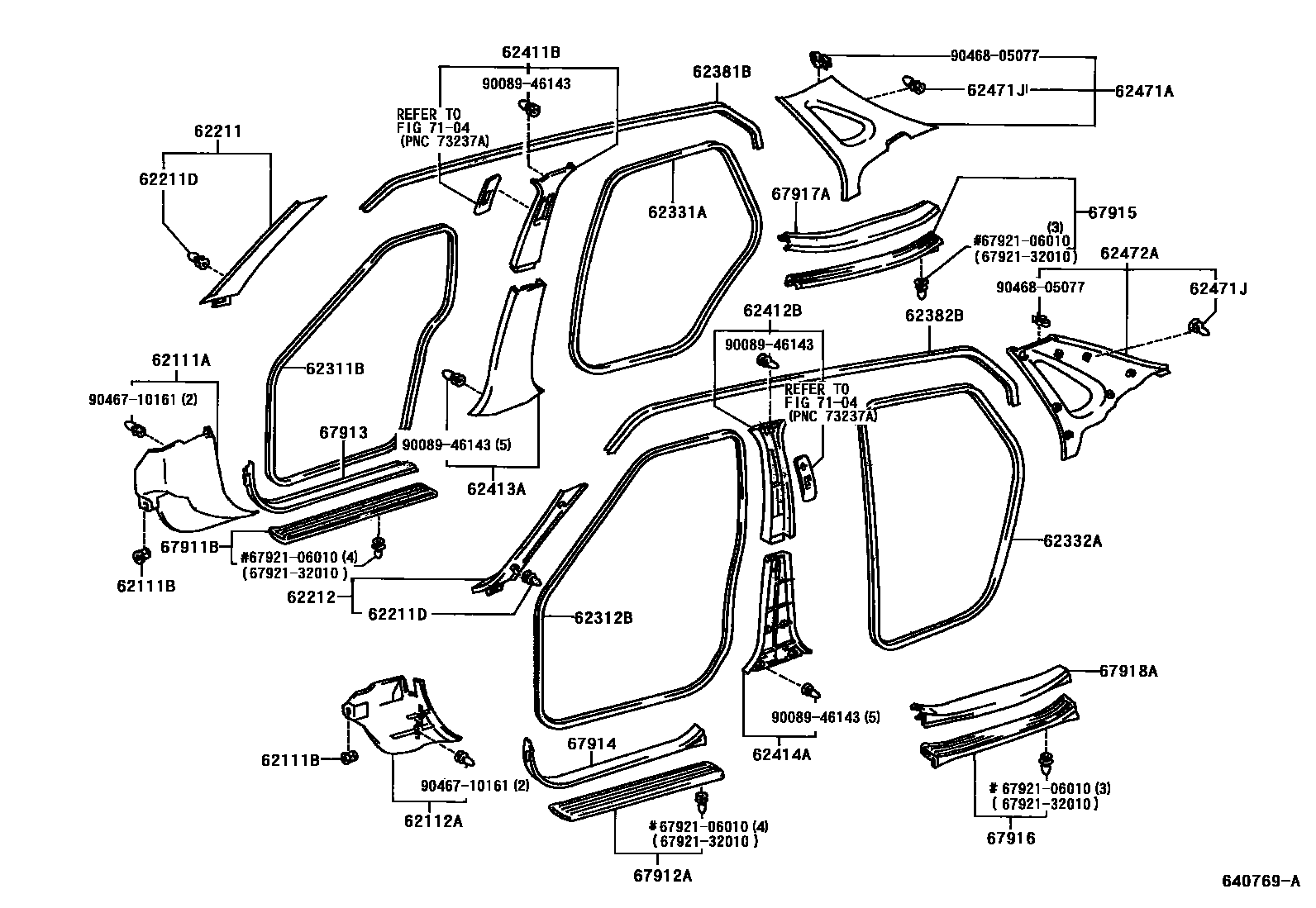

33 parts on this diagram · 1 diagram in section
