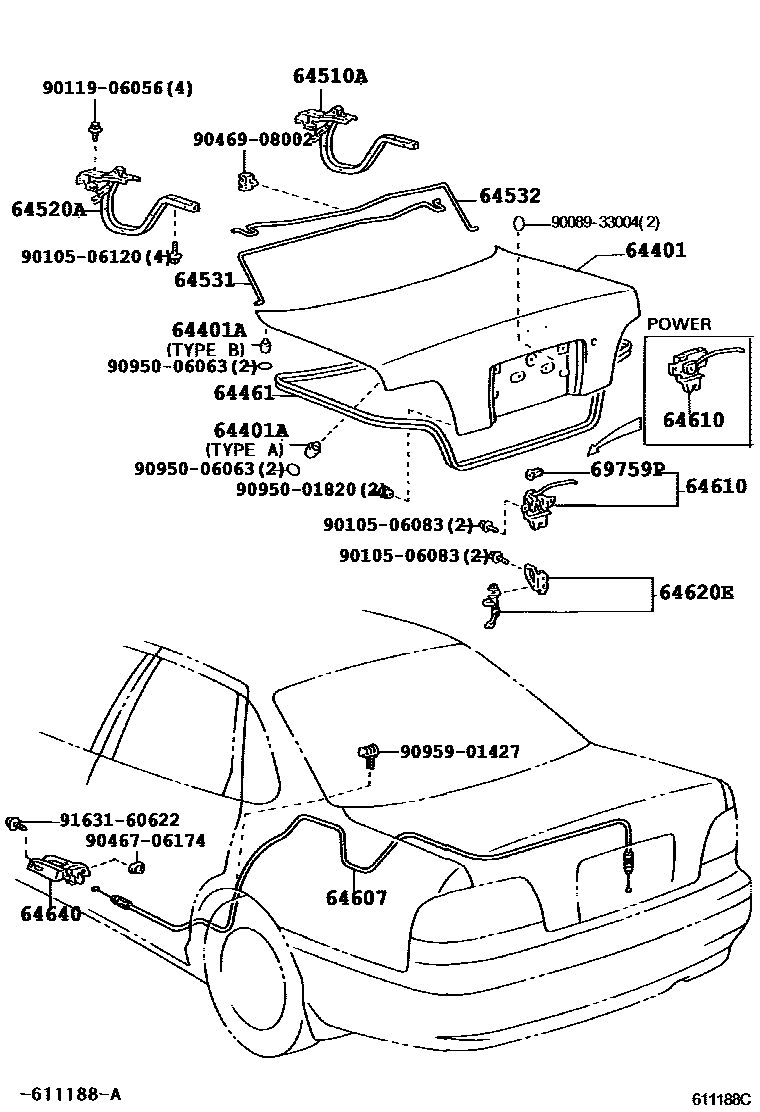

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-YF010iMCX10200004-200309

main64401-YF020iMCX10200309

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main64459-41010×2iMCX10200309

TYPE A:REFER ILLUST.

main90541-06059×2iMCX10200004-200309

TYPE B:REFER TO ILLUSTRATION

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-YF010iMCX10200004-200309

64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-AC020iMCX10200004-200309

64520AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-AC020iMCX10200004-200309

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-AC020iMCX10200004-200309

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-AC020iMCX10200004-200309

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-YF010iMCX10..CONQ,CSX200004-200309

main64607-YF021iMCX10..CONQ,CSX200309-200409

main64607-YF030iMCX10..CONQ,CSX200409

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-07020iMCX10..GD,VXI200004-200309

main64600-41010iMCX10..GD,VXI200309

main64610-41010iMCX10..CONQ,CSX200309

main64610-AC020iMCX10..CONQ,CSX200004-200309

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-YF010iMCX10200004-200309

main64621-YC010iMCX10200309

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64606-YC020iMCX10..CONQ,CSX200309

main77306-YC020iMCX10..GD,VXI200309

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-24050iMCX10..CONQ,CSX200004-200309

main69759-24080iMCX10200309

9008933004

main90089-33004

9010506083

main90105-06083

9010506120

main90105-06120

9011906056

main90119-06056

9046706174

main90467-06174

9046908002

main90469-08002

9095001820

main90950-01820

9095006063

main90950-06063

9095901427

main90959-01427

9163160622

main91631-60622

22 parts on this diagram · 2 diagrams in section
