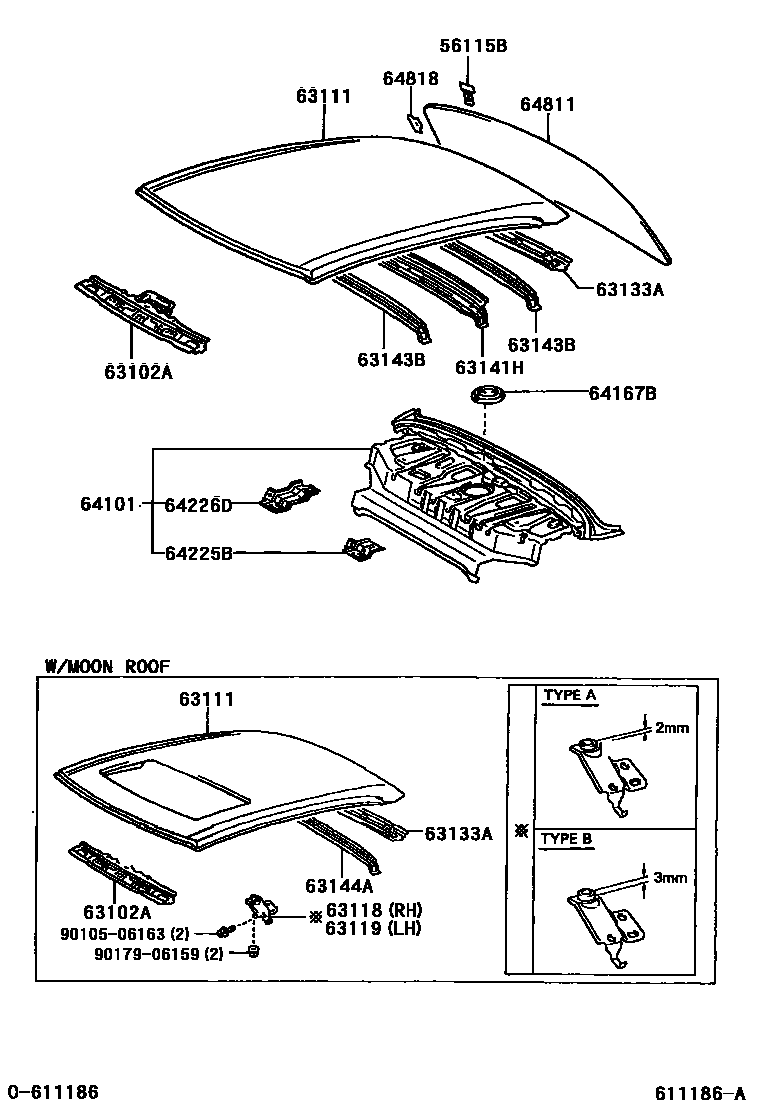

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56116-22080×2iMCX10200309

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-07010iMCX10200309

main63102-07020iMCX10..CONQ; MCX10..CSX,GD,VXI200309

W(SPOT LAMP)

63111PANEL, ROOF

main63101-07900iMCX10200004-200309

W(MOON ROOF)

main63111-07010iMCX10200004-200309

63118SUPPORT, ROOF PANEL, RH

main63118-07011iMCX10200309

TYPE A:REFER TO ILLUSTRATION

main63118-07021iMCX10200004-200309

TYPE B:REFER TO ILLUSTRATION

63119SUPPORT, ROOF PANEL, LH

main63119-07011iMCX10200004-200309

TYPE A:REFER TO ILLUSTRATION

main63119-07021iMCX10200004-200309

TYPE B:REFER TO ILLUSTRATION

63133AFRAME, BACK WINDOW, UPPER

main63133-07010iMCX10200309

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-07010iMCX10200309

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-07010×2iMCX10200004-200309

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-07010iMCX10200004-200309

64101PANEL SUB-ASSY, UPPER BACK

main64101-YF010iMCX10..CONQ,CSX,VXI; MCX10..GD200309-200506

NEW ZEALAND SPEC

main64101-YF020iMCX10..GD200110-200309

main64101-YF030iMCX10..GD200110-200309

W(CD AUTO CHANGER)

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-YF010iMCX10..CONQ,CSX,VXI200004-200309

64225BHANGER, REAR SEAT CUSHION SUPPORT

main64225-41010iMCX10200004-200309

64226DHANGER, REAR SEAT CUSHION SUPPORT, NO.2

main64226-41010×2iMCX10200004-200309

64811GLASS, BACK WINDOW

main64811-YF010iMCX10200004-200110

*EHT,T=3.5,GREEN

main64811-YF020iMCX10200110-200309

*EHTT,T=3.5,GREEN

main64811-YF030iMCX10200309

*EHTT,T=3.5,GREEN

64818SPACER, BACK WINDOW GLASS

main56126-22030×2iMCX10200309

9010506163

main90105-06163

9017906159

main90179-06159

17 parts on this diagram · 2 diagrams in section
