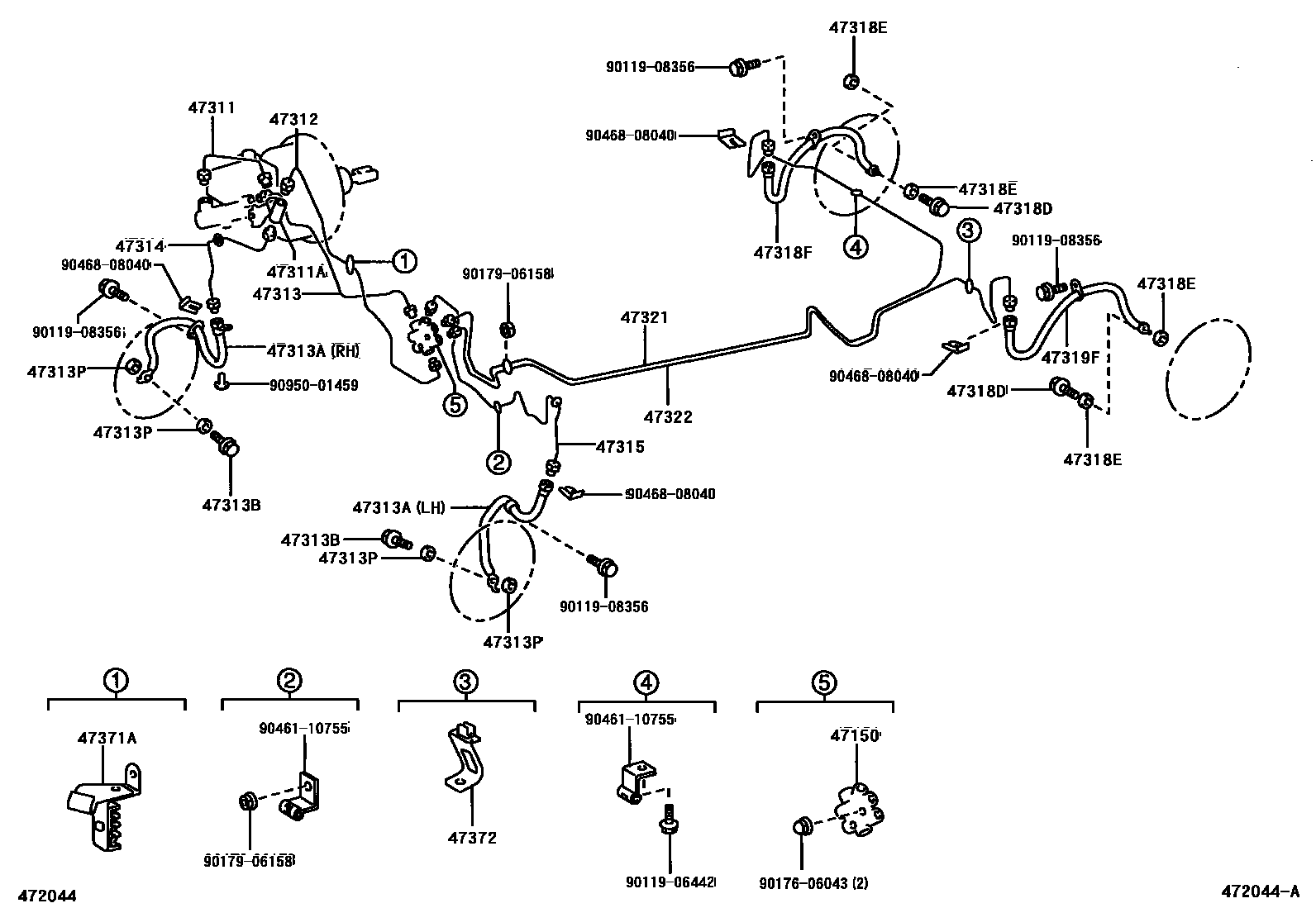

BRAKE TUBE & CLAMP

0001 1 0003 1W(ABS) 0004 1W(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-12150iMCX10200309

W(ABS)

main47150-12240iMCX10..CONQ200309

main47150-33010iMCX10..CONQ,VXI200004-200309

main47150-33020iMCX10..CONQ,VXI; MCX10..CSX,GD200004-200309

W(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-33040iMCX10..CONQ,VXI200004-200309

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-13014iMCX10..CONQ,VXI200004-200309

47312TUBE, FRONT BRAKE, NO.2

main47312-YF020iMCX10..CONQ200309

47313TUBE, FRONT BRAKE, NO.3

main47313-YF020iMCX10..CONQ,VXI200004-200309

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90080-94040iMCX10200004-200309

RH

main90080-94041iMCX10200004-200309

LH

main90080-94167iMCX10200309

RH

main90080-94168iMCX10200309

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iMCX10200004-200309

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90089-43002×4iMCX10200004-200309

47314TUBE, FRONT BRAKE, NO.4

main47314-YF020iMCX10..CONQ,VXI200004-200309

47315TUBE, FRONT BRAKE, NO.5

main47315-YF030iMCX10..CONQ,VXI200004-200309

main47315-YF040iMCX10..CONQ,VXI; MCX10..CSX,GD200004-200309

W(ABS)

47318TUBE, FRONT BRAKE, NO.8

main47318-YC020iMCX10200004-200309

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iMCX10200004-200309

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90089-43002×4iMCX10200004-200309

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90080-94042iMCX10200004-200309

main90080-94169iMCX10200309

47319TUBE, FRONT BRAKE, NO.9

main47319-YF020iMCX10200004-200309

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90080-94043iMCX10200004-200309

main90080-94170iMCX10200309

47321TUBE, REAR BRAKE, NO.1

main47321-YF020iMCX10200004-200309

47322TUBE, REAR BRAKE, NO.2

main47322-YF020iMCX10200004-200309

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33260iMCX10200004-200309

47372CLAMP, BRAKE TUBE, NO.2

main47371-YC030iMCX10200004-200309

9011906442

main90119-06442

9011908356

main90119-08356

9017606043

main90176-06043

9017906158

main90179-06158

9046110755

main90461-10755

9046808040

main90468-08040

9095001459

main90950-01459

27 parts on this diagram · 3 diagrams in section
