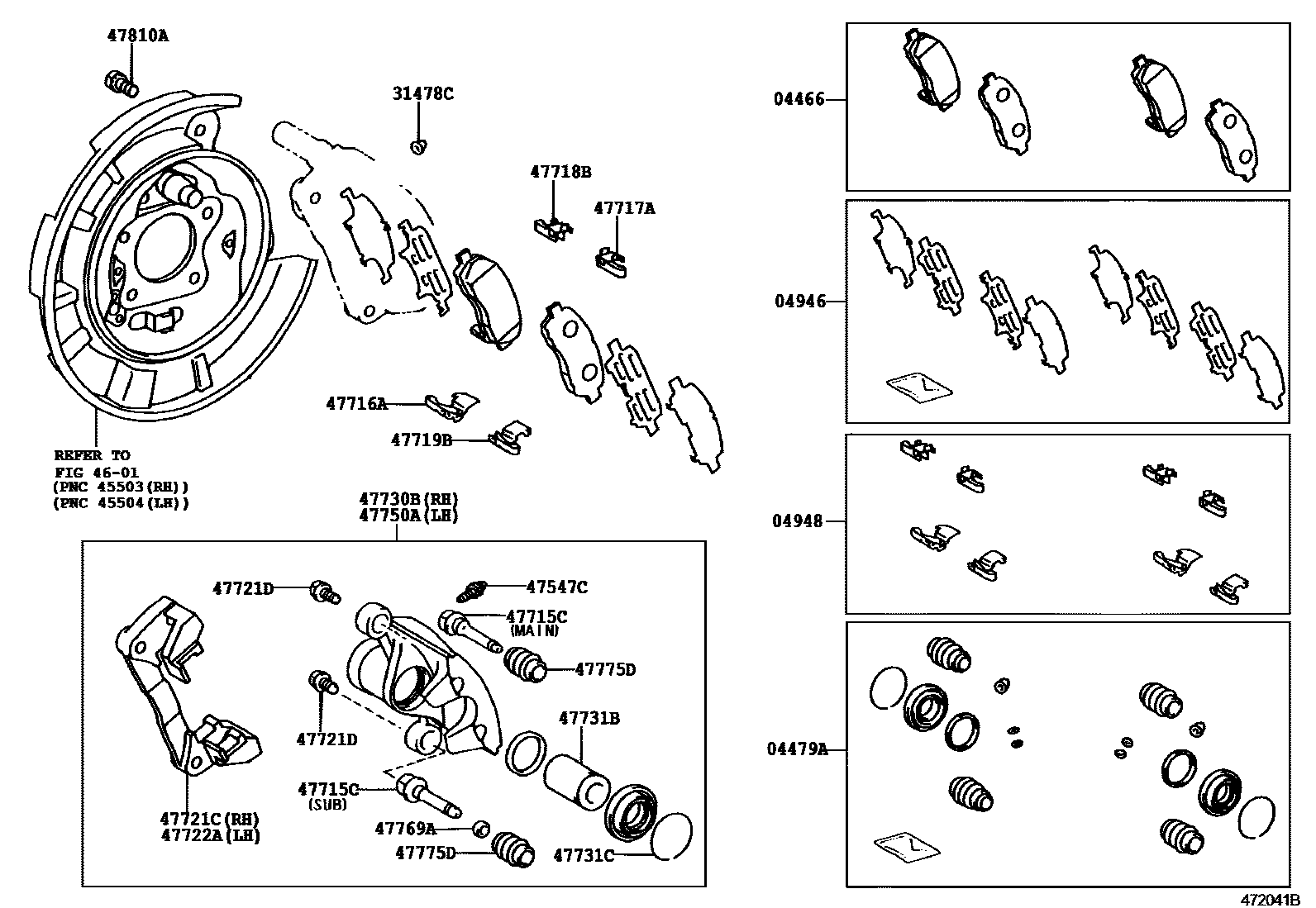

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-06020iMCX10200309

main04466-07020iMCX10200004-200309

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06121iMCX10200309

main04479-07050iMCX10200004-200309

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-07010iMCX10200004-200309

04948FITTING KIT, DISC BRAKE, REAR

main04948-07010iMCX10200004-200309

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMCX10200004-200309

main47548-06020×4iMCX10200309

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-06010×2iMCX10200004-200309

main47547-06030×2iMCX10200309

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-06140×4iMCX10200309

main47715-07010×2iMCX10200004-200309

SUB

main47715-07020×2iMCX10200004-200309

MAIN

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-07010×2iMCX10200004-200207

main47716-07011×2iMCX10200207-200309

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-07010×2iMCX10200004-200207

main47717-07011×2iMCX10200207-200309

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47718-07010×2iMCX10200004-200309

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47719-07010×2iMCX10200004-200309

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-06130iMCX10200309-200506

main47721-07021iMCX10200004-200210

main47721-07022iMCX10200210-200309

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90080-10043×4iMCX10200004-200309

*8-1.25PX23-20.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-06130iMCX10200309-200506

main47722-07021iMCX10200004-200210

main47722-07022iMCX10200210-200309

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-06130iMCX10200309

main47730-07031iMCX10200004-200210

main47730-07032iMCX10200210-200309

47731BPISTON, REAR DISC BRAKE

main47731-06070×2iMCX10200309

main47731-07030×2iMCX10200004-200309

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90080-52066×2iMCX10200004-200309

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-06130iMCX10200309

main47750-07031iMCX10200004-200210

main47750-07032iMCX10200210-200309

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-07020×2iMCX10200004-200309

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-06050×4iMCX10200309

main47775-07020×4iMCX10200004-200309

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4iMCX10200004-200208

main90119-10445×4iMCX10200309-200506

main90119-10939×4iMCX10200208-200309

22 parts on this diagram · 2 diagrams in section
