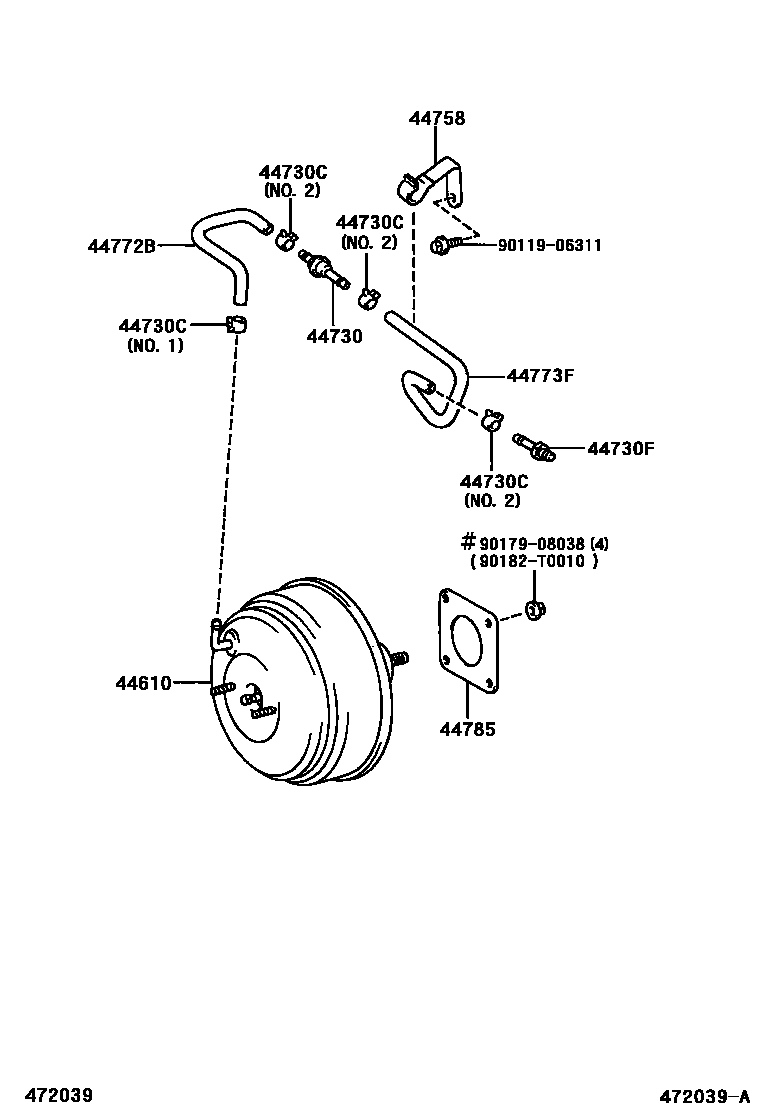

BRAKE BOOSTER & VACUUM TUBE

44610BOOSTER ASSY, BRAKE

main44610-41010iMCX10200004-200309

main44610-41020iMCX10200309

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCX10200309

44730CCLIP(FOR VACUUM HOSE)

main90467-16014iMCX10200309-200506

NO.1

main96133-41500×3iMCX10200309-200506

NO.2

main96134-51500×4iMCX10200004-200309

NO.1 & NO.2

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iMCX10200309

44758BRACKET, VACUUM CHECK VALVE

main44758-33030iMCX10200309

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-07060iMCX10200309

main44772-33060iMCX10200004-200309

44773FHOSE, UNION TO CHECK VALVE

main44773-07050iMCX10200309

main44773-33070iMCX10200004-200309

44785GASKET, BRAKE BOOSTER

main44785-YA020iMCX10200004-200309

9011906311

main90119-06311

9017908038

main90179-08038

90182T0010

main90182-T0010

11 parts on this diagram · 1 diagram in section
