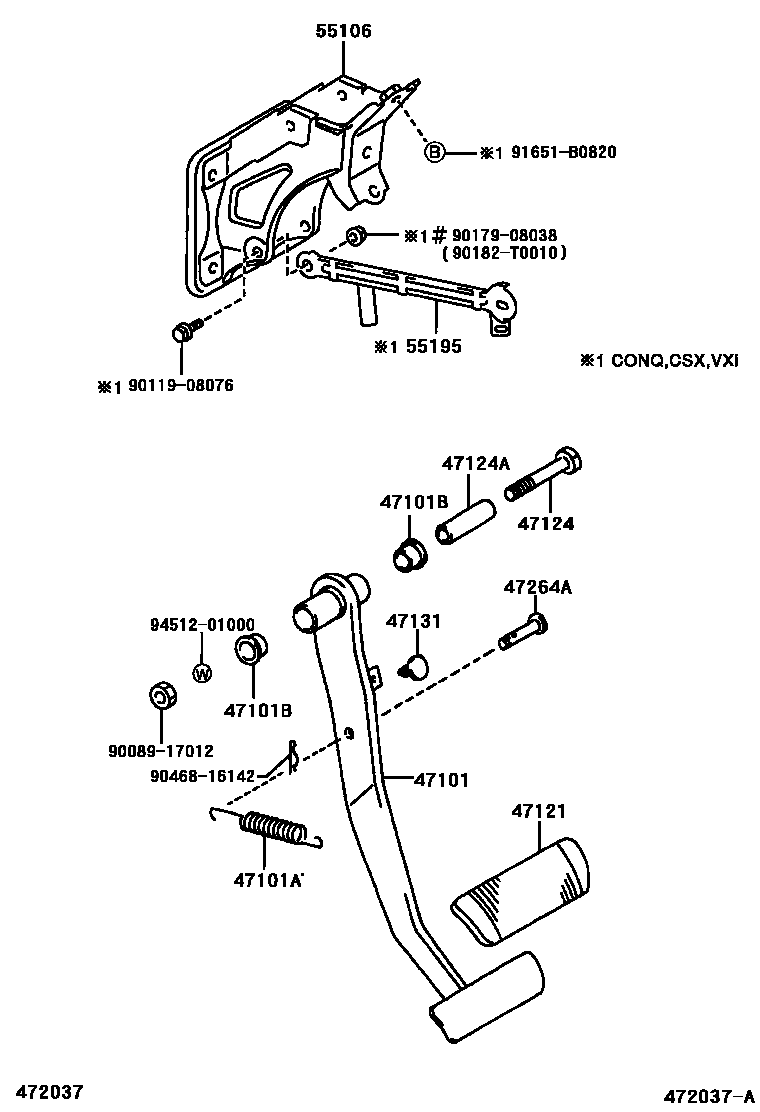

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-YC020iMCX10200004-200309

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iMCX10200004-200309

47101BBUSH(FOR BRAKE PEDAL)

main90089-38004×2iMCX10200004-200309

47121PAD, BRAKE PEDAL

main47121-YB010iMCX10200004-200309

47124SHAFT, BRAKE PEDAL

main90089-10013iMCX10200004-200309

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90089-38001iMCX10200004-200309

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCX10200004-200309

47264APIN(FOR PUSH ROD)

main47148-33010iMCX10200004-200110

main47148-33030iMCX10200110-200309

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-YF010iMCX10200004-200309

55195STAY, PEDAL BRACKET, NO.1

main55195-YF010iMCX10..CONQ,CSX,VXI200004-200309

9008917012

main90089-17012

9011908076

main90119-08076

9017908038

main90179-08038

90182T0010

main90182-T0010

9046816142

main90468-16142

91651B0820

main91651-B0820

9451201000

main94512-01000

17 parts on this diagram · 1 diagram in section
