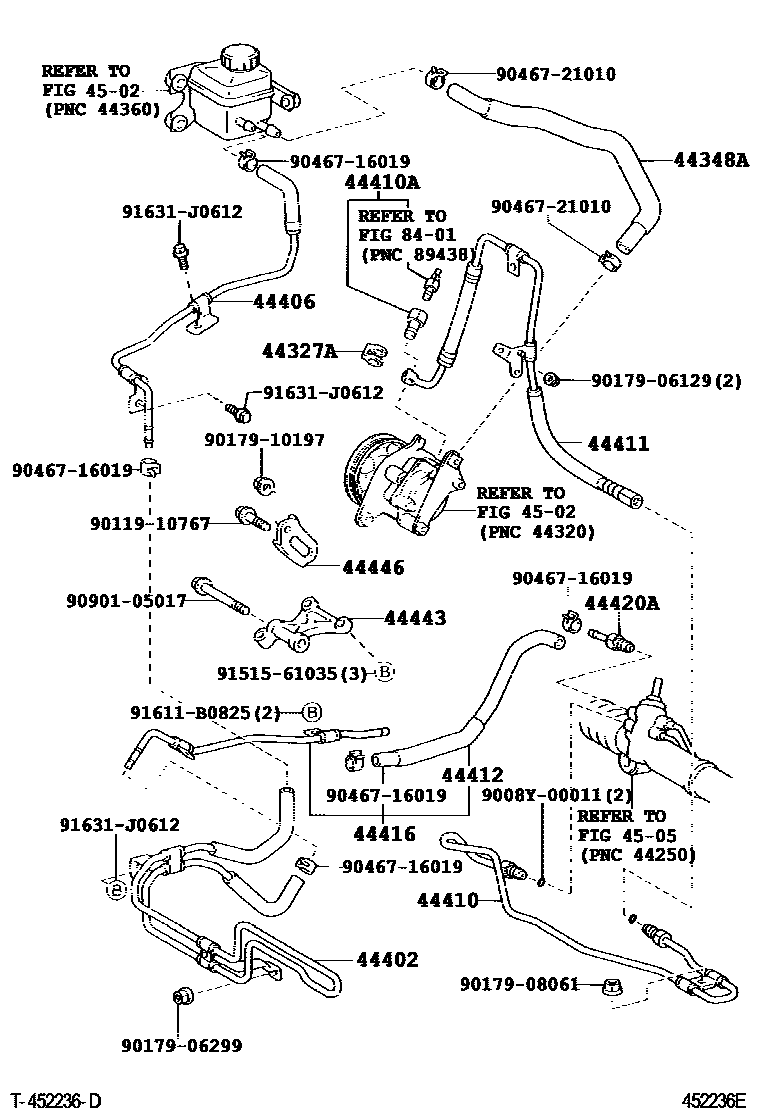

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCX10200309

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06150iMCX10200004-200309

(L)

main44348-07030iMCX10200309

main44348-33130iMCX10200004-200309

(J)

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-07010iMCX10200004-200309

44406TUBE SUB-ASSY, RETURN

main44406-07060iMCX10200004-200309

44410TUBE ASSY, PRESSURE FEED

main44410-06200iMCX10200309

main44410-07060iMCX10200004-200309

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCX10200004-200309

44411HOSE, PRESSURE FEED

main44411-06090iMCX10200309

main44411-07070iMCX10200004-200103

main44411-07071iMCX10200103-200309

44412HOSE, RETURN

main44412-8Y002iMCX10200004-200309

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-07050iMCX10200004-200309

44420ATUBE ASSY, RETURN

main44420-06010iMCX10200004-200309

44443BRACKET, PUMP

main44443-YC041iMCX10200004-200309

44446STRUT, ADJUSTING

main44446-33010iMCX10200004-200309

(J)

main44446-AC010iMCX10200004-200309

(L)

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008Y00011

main9008Y-00011

9011910767

main90119-10767

9017906129

main90179-06129

9017906299

main90179-06299

9017908061

main90179-08061

9017910197

main90179-10197

9046716019

main90467-16019

9046721010

main90467-21010

9090105017

main90901-05017

9151561035

main91515-61035

91611B0825

main91611-B0825

91631J0612

main91631-J0612

27 parts on this diagram · 1 diagram in section
