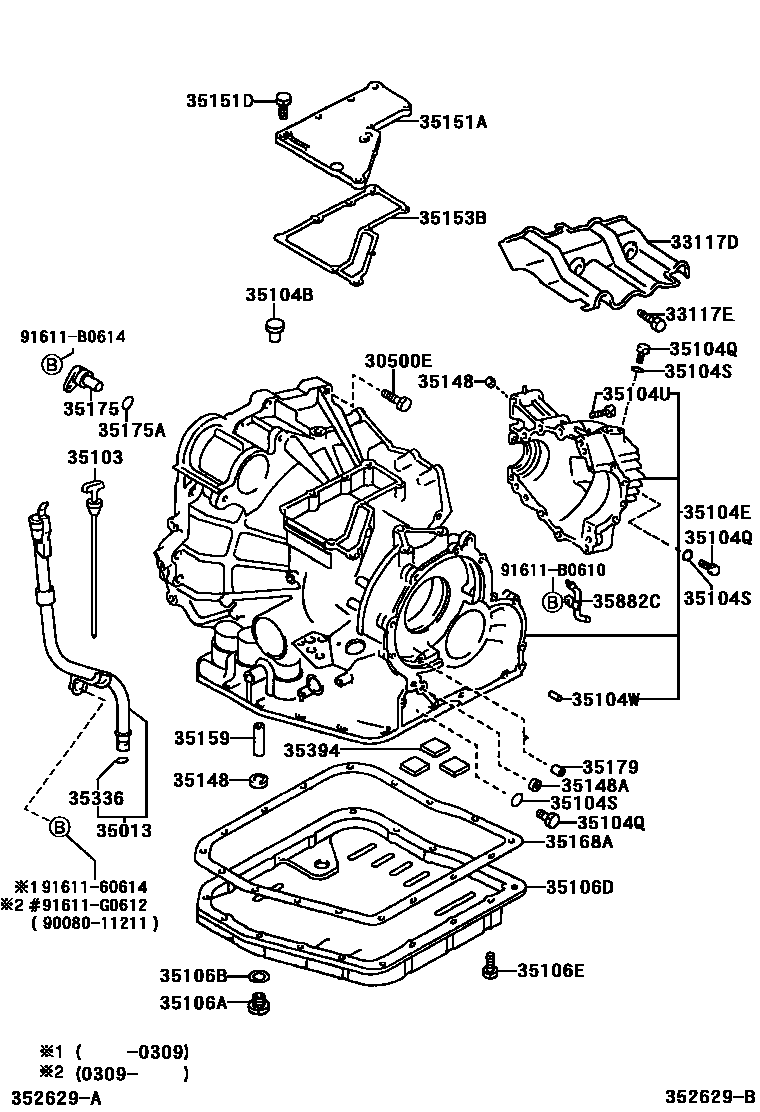

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90119-12168×4iMCX10200004-200309

*12-1.25PX55-30

main91619-61265iMCX10200309

*12-1.25PX65-30

main92412-H1055iMCX10200004-200309

*10-1.25PX55-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-YC010iMCX10200004-200309

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iMCX10200004-200309

main91641-H0820×2iMCX10200309

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-33090iMCX10200004-200309

main35013-YC060iMCX10200309

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-33160iMCX10200004-200309

main35103-YC040iMCX10200309

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iMCX10200004-200309

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33903iMCX10200004-200309

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iMCX10200309

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iMCX10200004-200309

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222×6iMCX10200309

*10-1.25PX65-30

main90105-10223×2iMCX10200004-200309

*10-1.25PX75-30

main90105-10224×2iMCX10200004-200309

*10-1.25PX100-30

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10232×2iMCX10200004-200309

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iMCX10200004-200309

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iMCX10200004-200309

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33020iMCX10200004-200309

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×17iMCX10200004-200309

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010×2iMCX10200309

main35148-16010×2iMCX10200004-200309

35148AGASKET, GOVERNOR APPLY, NO.2

main35145-21010iMCX10200309

main35148-16010iMCX10200004-200309

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-33022iMCX10200309

35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90105-06113×8iMCX10200004-200309

*6-1.00PX20-18

main90109-08235iMCX10200004-200309

*10-1.25PX30-22

main91511-H0620×8iMCX10200309

*6-1.0PX20-20

35153BGASKET, TRANSAXLE CASE UPPER COVER

main35153-33020iMCX10200004-200309

35159GASKET, BRAKE DRUM

main35159-32011iMCX10200309

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33030iMCX10200004-200211

main35168-33031iMCX10200211-200309

35175CAP, TRANSAXLE CASE, NO.2

main35175-33010iMCX10200004-200309

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-16006iMCX10200004-200309

35179GASKET, OVERDRIVE BRAKE

main35179-32010iMCX10200004-200309

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90089-30001iMCX10200309

main90301-09173iMCX10200004-200309

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iMCX10200004-200309

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-33020iMCX10200004-200309

9008011211

main90080-11211

9161160614

main91611-60614

91611B0610

main91611-B0610

91611B0614

main91611-B0614

91611G0612

main91611-G0612

33 parts on this diagram · 1 diagram in section
