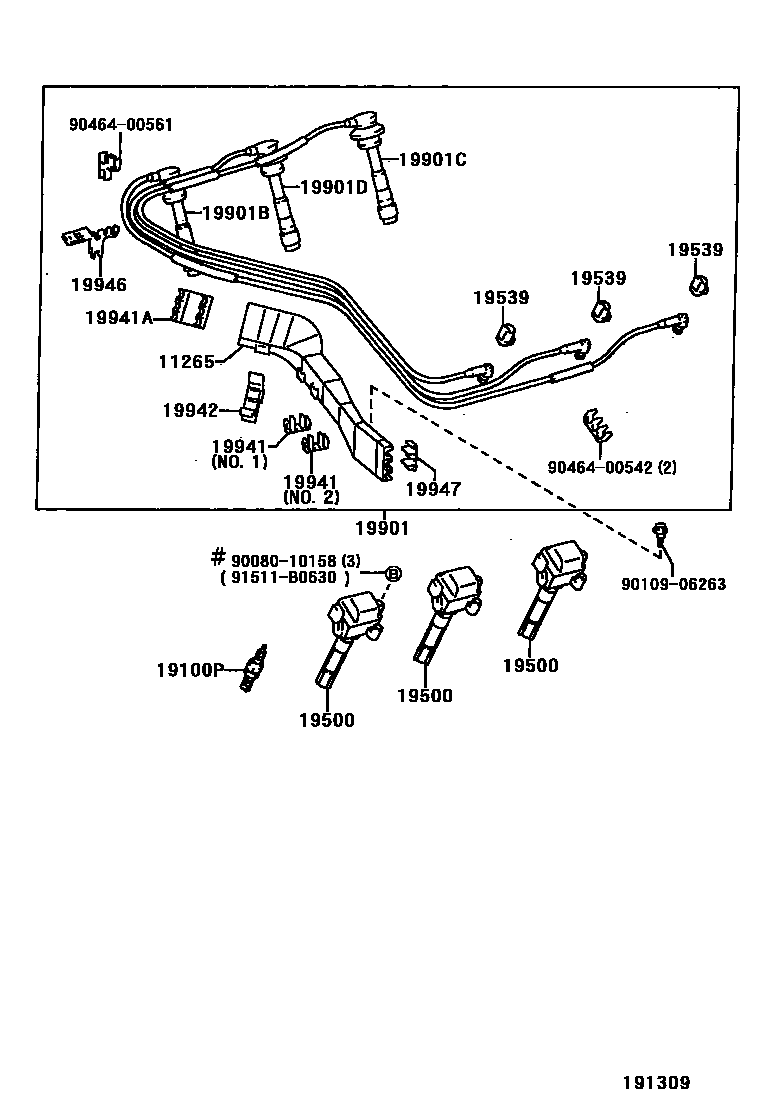

IGNITION COIL & SPARK PLUG / GLOW PLUG

11265COVER, COIL & RESISTIVE CORD, UPR

main11265-20020i1MZFE..MCX10200004-200309

19100PPLUG, SPARK

main90080-91116i1MZFE..MCX10200012-200309

PK20TR11,(L)

main90919-01194i1MZFE..MCX10200012-200309

PK20TR11,(J)

main90919-01194i1MZFE..MCX10200004-200012

PK20TR11

main90919-01195i1MZFE..MCX10200004-200309

BKR6EKPB11

19500COIL ASSY, IGNITION

main90080-19012i1MZFE..MCX10200012-200309

(L)

main90919-02215i1MZFE..MCX10200004-200012

main90919-02215i1MZFE..MCX10200012-200309

(J)

19539HOLDER, RESISTIVE CODE, NO.4

main19539-11040i1MZFE..MCX10200004-200309

19901CORD SET, COIL & SPARK, W/RESISTIVE

main19037-20011i1MZFE..MCX10200004-200309

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15308i1MZFE..MCX10200004-200309

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15309i1MZFE..MCX10200004-200309

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15310i1MZFE..MCX10200004-200309

19941CLAMP, RESISTIVE CORD, NO.1

main19941-20010i1MZFE..MCX10200004-200309

NO.1

main19941-20020i1MZFE..MCX10200004-200309

NO.2

19941ACLAMP(FOR RESISTIVE CORD)

main19941-65040i1MZFE..MCX10200004-200309

19942CLAMP, RESISTIVE CORD, NO.2

main19942-20010i1MZFE..MCX10200004-200309

19946CLAMP, RESISTIVE CORD, NO.3

main19946-20010i1MZFE..MCX10200004-200309

19947CLAMP, RESISTIVE CORD, NO.4

main19947-20010i1MZFE..MCX10200004-200309

9008010158

main90080-10158

9010906263

main90109-06263

9046400542

main90464-00542

9046400561

main90464-00561

91511B0630

main91511-B0630

18 parts on this diagram · 1 diagram in section
