STANDARD TOOL

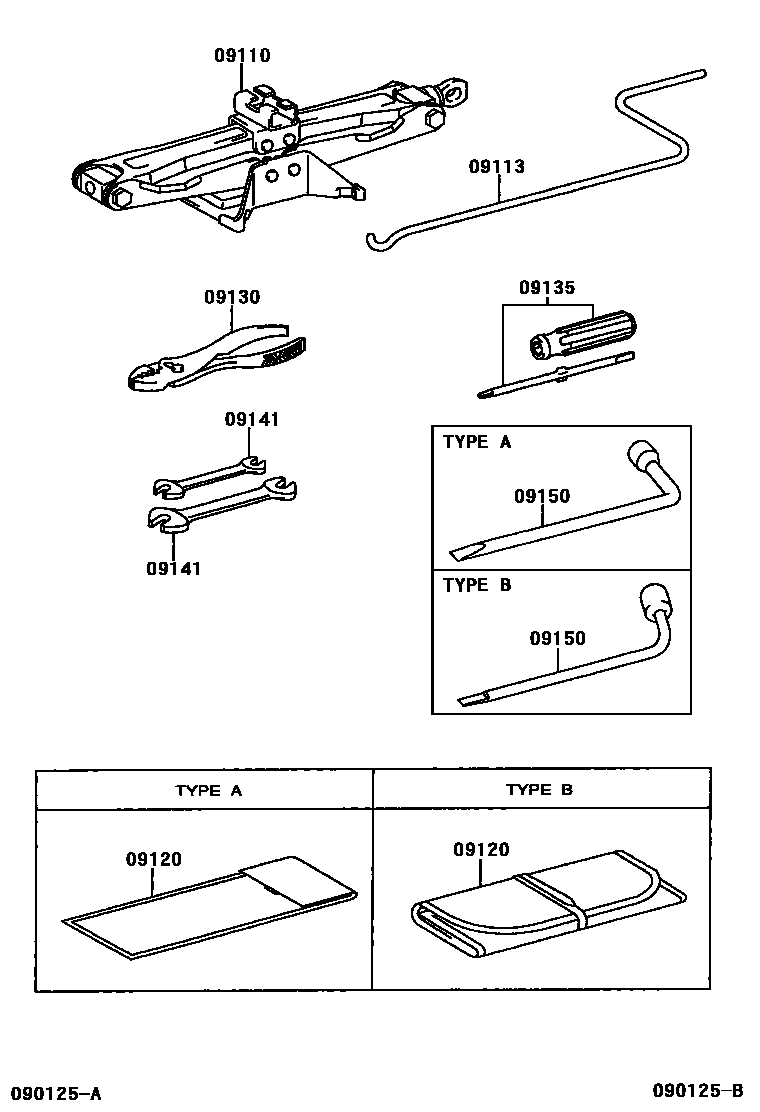

Parts diagram

09110JACK ASSY

main09111-22060i200004-200107

main09111-YC040i200107-200309

09113HANDLE, JACK

main09113-YA020i200309

09120BAG, TOOL

main09120-16030i200004-200309

TYPE B:REFER TO ILLUSTRATION

main09120-YA020i200004-200309

TYPE A:REFER TO ILLUSTRATION

09130PLIERS

main99913-11500i200309

09135DRIVER, SCREW

main99915-10700i200309

09141SPANNER

main99914-10810i200309

8 X 10

main99914-11214i200004-200309

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010i200309

TYPE B:REFER TO ILLUSTRATION

main09150-YA010i200004-200309

TYPE A:REFER TO ILLUSTRATION

7 parts on this diagram · 1 diagram in section
