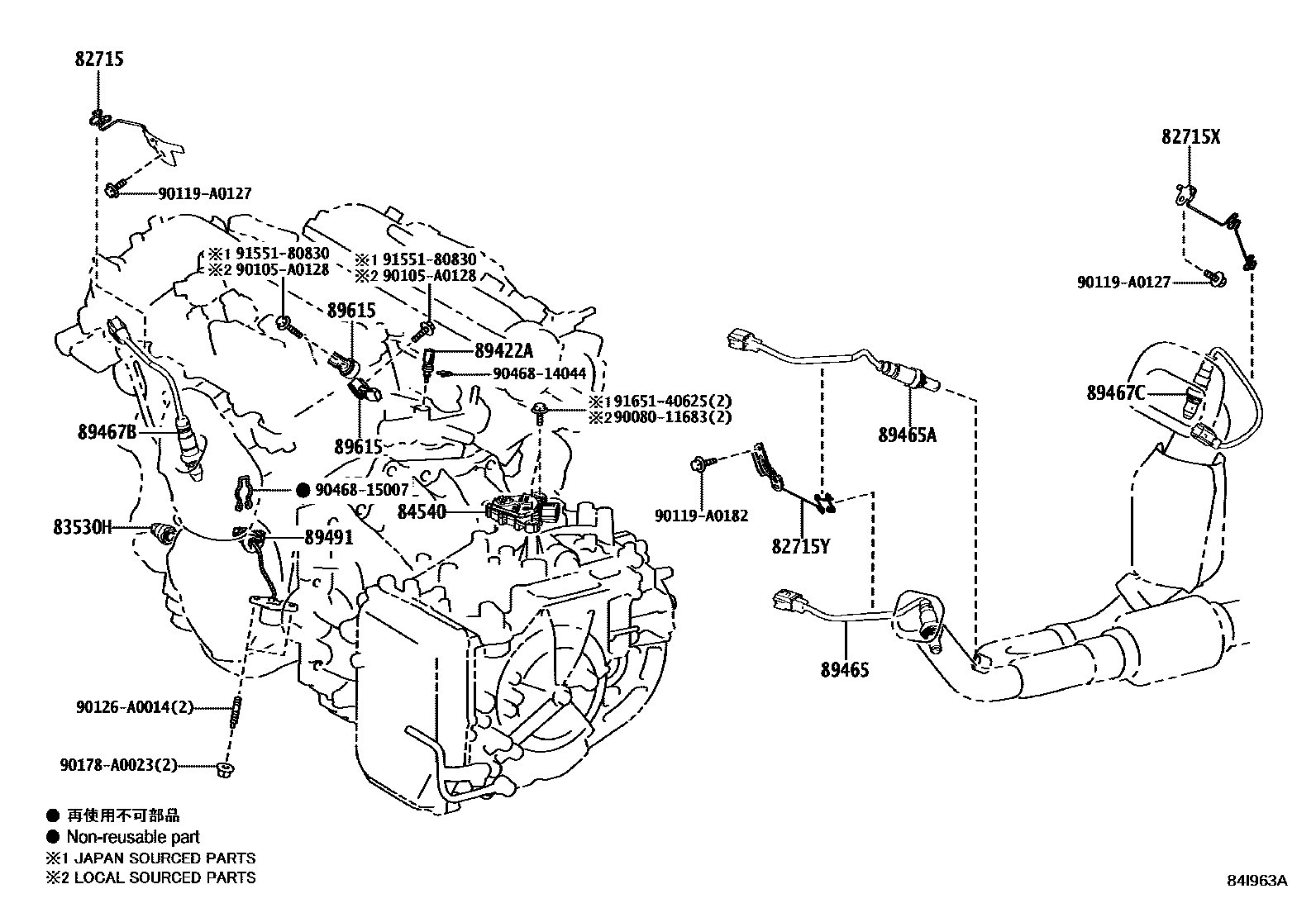

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1SEAT 0007 1DOOR, FLOOR & LUGGAGE

82715BRACKET,WIRING HARNESS CLAMP

main82715-33J90iGSX50201806-202008

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-33T50iGSX50201806-202008

82715YBRACKET, WIRING HARNESS CLAMP, NO.3

main82715-33K00iGSX50201806-202008

83530HSWITCH ASSY, OIL PRESSURE

main83530-0E010iGSX50201806-202008

(L),DENSO

main83530-28020iGSX50201806-202008

(J),DENSO

main83530-60020iGSX50201806-202008

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-06020iGSX50201806-202111

(L)

sub84540-06021

sub35572-48051

main84540-06021iGSX50202111

(L)

main84540-33020iGSX50201806-202202

(J)

sub84540-33021

sub35572-48051

main84540-33021iGSX50202202

(J)

89422ASENSOR, WATER TEMPERATURE

main89422-47010iGSX50201806-202008

89465SENSOR, OXYGEN

main89465-06370iGSX50201806-202008

89465ASENSOR, OXYGEN NO.2

main89465-06380iGSX50201806-202008

89467BSENSOR, AIR FUEL RATIO

main89467-06230iGSX50201806-202008

LH BANK

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0E250iGSX50201806-202111

RH BANK

89491SENSOR, ENGINE OIL LEVEL

main89491-48020iGSX50201806-201808

sub89491-48021

main89491-48021iGSX50201809-202001

sub89491-48040

main89491-48040iGSX50202002-202204

sub89491-48041

main89491-48041iGSX50202205

89615SENSOR, KNOCK CONTROL

main89615-06010iGSX50201806-202008

(L)

main89615-20090iGSX50201806-202008

(J)

9008011683

main90080-11683

90105A0128

main90105-A0128

90119A0127

main90119-A0127

90119A0182

main90119-A0182

90126A0014

main90126-A0014

90178A0023

main90178-A0023

9046814044

main90468-14044

9046815007

main90468-15007

9155180830

main91551-80830

9165140625

main91651-40625

22 parts on this diagram · 7 diagrams in section
