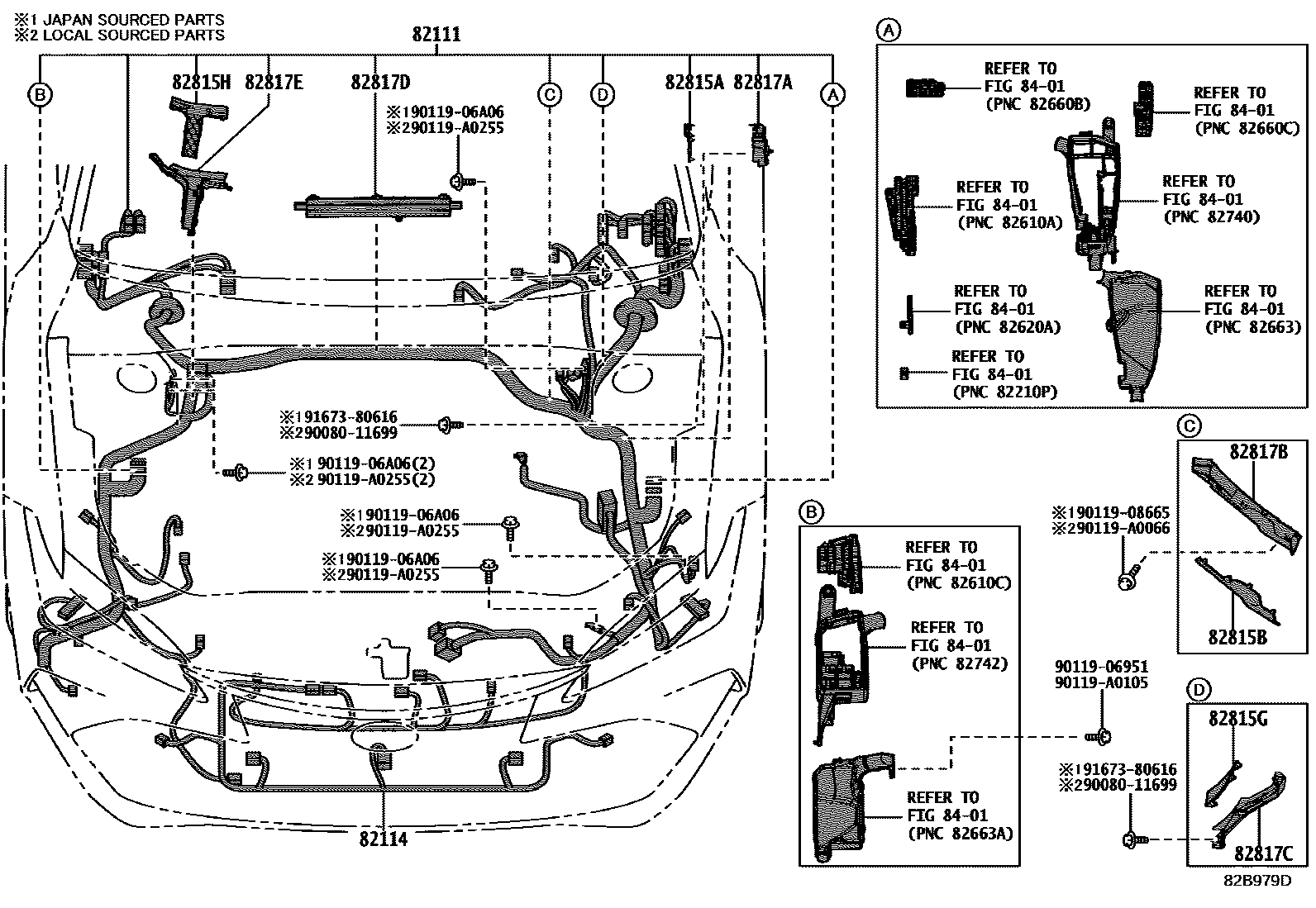

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-07F40supersedes 82111-07F50i201806-201908

ACTIVE SAFETY PACKAGE-WITHOUT&LANE CHANGE ASSIST-WITHOUT

main82111-07F41supersedes 82111-07F51i201908-202008

ACTIVE SAFETY PACKAGE-WITHOUT&LANE CHANGE ASSIST-WITHOUT

main82111-07F42supersedes 82111-07F52i202008-202108

ACTIVE SAFETY PACKAGE-WITHOUT&LANE CHANGE ASSIST-WITHOUT

main82111-07F43supersedes 82111-07F53i202108

ACTIVE SAFETY PACKAGE-WITHOUT&LANE CHANGE ASSIST-WITHOUT

main82111-07G40supersedes 82111-07G20i201806-201908

CLEARANCE & BACK SONAR-WITH(REAR)

main82111-07G41supersedes 82111-07G21i201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR)

main82111-07G42supersedes 82111-07G22i202008-202108

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main82111-07G43supersedes 82111-07G23i202108

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

82114WIRE, ENGINE ROOM, NO.4

main82114-07010i201806-201908

CLEARANCE & BACK SONAR-WITH(REAR)

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-33E00i202008

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-33E10i201806-202008

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-33E20i201806-202008

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-33K50i201806-202008

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-33N30i201806-202008

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-33N40i201806-202008

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-33N60i201806-202008

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-33Y20i201806-202008

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-33Y30i201806-202008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011699

main90080-11699

9011906951

main90119-06951

9011906A06

main90119-06A06

9011908665

main90119-08665

90119A0066

main90119-A0066

90119A0105

main90119-A0105

90119A0255

main90119-A0255

9167380616

main91673-80616

20 parts on this diagram · 10 diagrams in section
