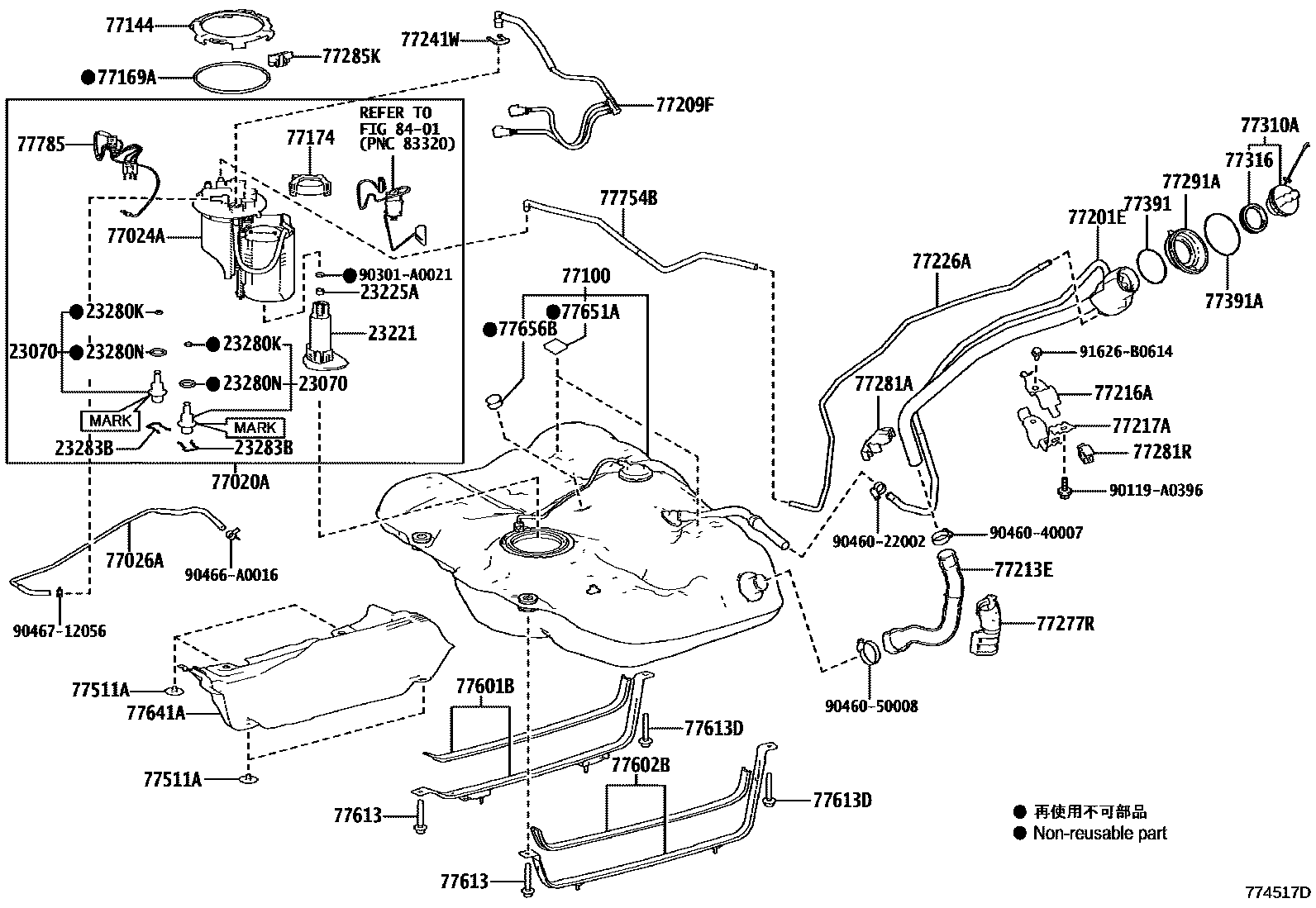

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-31030i2GRFKS..GSX50201806-202008

MARK 23070-31030

main23070-36010i2GRFKS..GSX50201806-202008

MARK 23070-36010

23221PUMP, FUEL

main23220-0P240i2GRFKS..GSX50201806-202008

23225ASPACER, FUEL PUMP

main23225-0P010i2GRFKS..GSX50201806-202008

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2GRFKS..GSX50201806-202008

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i2GRFKS..GSX50201806-202008

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-0P010i2GRFKS..GSX50201806-202008

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-07070iGSX50201806-202008

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-07020iGSX50201806-202008

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-07010iGSX50201806-202008

77100TANK ASSY, FUEL

main77001-07070iGSX50202002-202008

(L)

main77001-07070iGSX50201806-202002

main77001-33270iGSX50202002-202008

(J)

77144RETAINER, FUEL PUMP GAUGE

main77144-06040iGSX50201806-202008

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02050iGSX50201806-202008

77174SUPPORT, FUEL SUCTION, NO.1

main77174-06100iGSX50201806-202008

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-33400iGSX50201806-202008

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-06170iGSX50201806-201905

main77209-06171iGSX50201906-202008

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-33130iGSX50201806-202008

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33150iGSX50201806-202008

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33090iGSX50201806-202008

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33130iGSX50201806-202008

77241WCLIP, TUBE JOINT

main77241-02010iGSX50201806-202008

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-33110iGSX50201806-202008

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-06160iGSX50201806-202008

77281ACLAMP, FUEL FILLER PIPE

main77281-33050iGSX50201806-202008

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-30110iGSX50201806-202008

77285KCLAMP, FUEL TUBE, NO.1

main77285-06240iGSX50201806-202008

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-06200iGSX50201806-202008

77310ACAP ASSY, FUEL TANK

main77300-12020iGSX50201806-202008

77316GASKET, FUEL TANK CAP

main77316-52040iGSX50201806-202008

77391RING, FUEL INLET BOX

main77391-02041iGSX50201806-202008

77391ARING, FUEL INLET BOX

main77391-20040iGSX50201806-201809

main77391-33060iGSX50201809-202008

77511ABRACKET, FUEL TANK

main77512-06060iGSX50201806-202008

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-06180iGSX50201806-202008

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-06180iGSX50201806-202008

77613BOLT, FUEL TANK BAND SET

main90119-10992iGSX50202207

main90119-A0430iGSX50201806-202206

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-A0430iGSX50201806-201903

main90119-A0509iGSX50201903-202008

77641APROTECTOR, FUEL TANK, NO.1

main77641-06030iGSX50201806-202008

77651ACUSHION, FUEL TANK, NO.1

main77651-06130iGSX50201806-202008

(L)

main77652-33060iGSX50202002-202008

(J)

77656BCUSHION, FUEL TANK, NO.6

main77656-06030iGSX50201806-202008

(L)

main77656-33010iGSX50202002-202008

(J)

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-07020iGSX50201806-202008

77785HARNESS, FUEL PUMP

main77785-06150iGSX50201806-202008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0396

main90119-A0396

90301A0021

main90301-A0021

9046022002

main90460-22002

9046040007

main90460-40007

9046050008

main90460-50008

90466A0016

main90466-A0016

9046712056

main90467-12056

91626B0614

main91626-B0614

49 parts on this diagram · 3 diagrams in section
