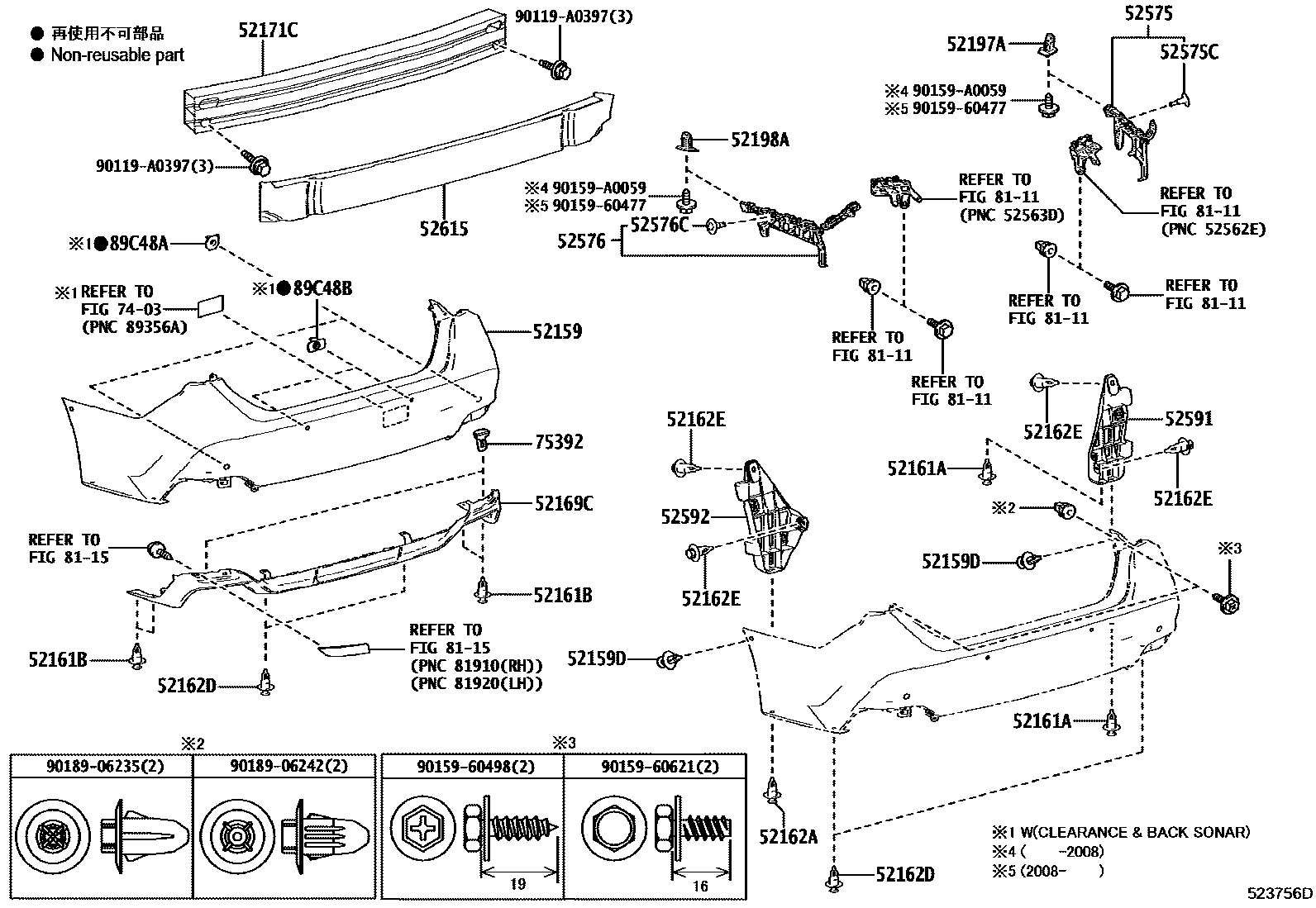

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-07903iGSX50202008

PAINT REQ.

main52159-07904iGSX50..LIMD202008

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

52159DCLIP, REAR BUMPER COVER

main90467-05170×2iGSX50201806-202008

52161APIECE, REAR BUMPER, RH

main52161-02020×2iGSX50201806-202008

52161BPIECE, REAR BUMPER

main52161-02020×4iGSX50202008

52162APIECE, REAR BUMPER, LH

main52161-02020×2iGSX50201806-202008

52162DPIECE, REAR BUMPER

main52161-02020×4iGSX50201806-202008

52162EPIECE, REAR BUMPER

main52161-02020×4iGSX50201806-202008

52169CCOVER, REAR BUMPER, LOWER

main52169-07050-C0iGSX50201806-202008

BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,4X9 ,8W6

52171CREINFORCEMENT, REAR BUMPER

main52171-06170iGSX50201806-202008

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iGSX50202008

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iGSX50201806-202008

52575RETAINER, REAR BUMPER SIDE, RH

main52575-07020iGSX50201806-202008

52575CCLIP, REAR BUMPER SIDE RETAINER

main90467-09237×3iGSX50201806-202008

52576RETAINER, REAR BUMPER SIDE, LH

main52576-07020iGSX50201806-202008

52576CCLIP, REAR BUMPER SIDE RETAINER

main90467-09237×3iGSX50201806-202008

52591SEAL, REAR BUMPER SIDE, RH

main52591-07020iGSX50201806-202008

52592SEAL, REAR BUMPER SIDE, LH

main52592-07020iGSX50201806-202008

52615ABSORBER, REAR BUMPER ENERGY

main52615-07040iGSX50201806-202008

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

75392RETAINER, OUTSIDE MOULDING

main75392-35200×2iGSX50201806-202008

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

8115REFLEX REFLECTOR

→ Go to FIG 81-15

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-07090-A0iGSX50..LIMD201806-201908

CLEARANCE & BACK SONAR-WITH(REAR),PLATINUM WHITE PEARL MC.,089,RH

main89348-07090-B0iGSX50..LIMD201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR),SILVER ME.,1J9,RH

main89348-07090-B1iGSX50..LIMD201806-201908

CLEARANCE & BACK SONAR-WITH(REAR),SLATE GRAY ME.,1K4,RH

main89348-07090-B2iGSX50..LIMD202108

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ASH GRAY ME.,1K6,RH

main89348-07090-C0iGSX50..LIMD202008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ATTITUDE BLACK MC.,218,RH

main89348-07090-D0iGSX50..LIMD202008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),RED MC.,3T3,RH

main89348-07090-D2iGSX50..LIMD202008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),EMOTIONAL RED 2,3U5,RH

main89348-07090-E0iGSX50..LIMD201806-201908

CLEARANCE & BACK SONAR-WITH(REAR),GRAPHITE ME.,4X7,RH

main89348-07090-E1iGSX50..LIMD202008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),BLACKISH BROWN MC.,4X9,RH

main89348-07090-J0iGSX50..LIMD201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR),DK.BLUE M.M.,8W6,RH

main89348-07090-J1iGSX50..LIMD202008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. BLUE MC.,8X8,RH

main89348-07110-A0iGSX50..LIMD201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR),PLATINUM WHITE PEARL MC.,089,LH

main89348-07110-B0iGSX50..LIMD201806-201908

CLEARANCE & BACK SONAR-WITH(REAR),SILVER ME.,1J9,LH

main89348-07110-B1iGSX50..LIMD202008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),SLATE GRAY ME.,1K4,LH

main89348-07110-B2iGSX50..LIMD202108

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),ASH GRAY ME.,1K6,LH

main89348-07110-C0iGSX50..LIMD201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR),ATTITUDE BLACK MC.,218,LH

main89348-07110-D0iGSX50..LIMD201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR),RED MC.,3T3,LH

main89348-07110-D2iGSX50..LIMD202008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),EMOTIONAL RED 2,3U5,LH

main89348-07110-E0iGSX50..LIMD201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR),GRAPHITE ME.,4X7,LH

main89348-07110-E1iGSX50..LIMD201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR),BLACKISH BROWN MC.,4X9,LH

main89348-07110-J0iGSX50..LIMD201908-202008

CLEARANCE & BACK SONAR-WITH(FRONT&REAR),DK.BLUE M.M.,8W6,LH

main89348-07110-J1iGSX50..LIMD202008

CLEARANCE & BACK SONAR-WITH(FRONT & REAR),DK. BLUE MC.,8X8,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-06050×2iGSX50..LIMD201806-201908

CLEARANCE & BACK SONAR-WITH(REAR)

90119A0397

main90119-A0397

9015960477

main90159-60477

9015960498

main90159-60498

9015960621

main90159-60621

90159A0059

main90159-A0059

9018906235

main90189-06235

9018906242

main90189-06242

31 parts on this diagram · 1 diagram in section
