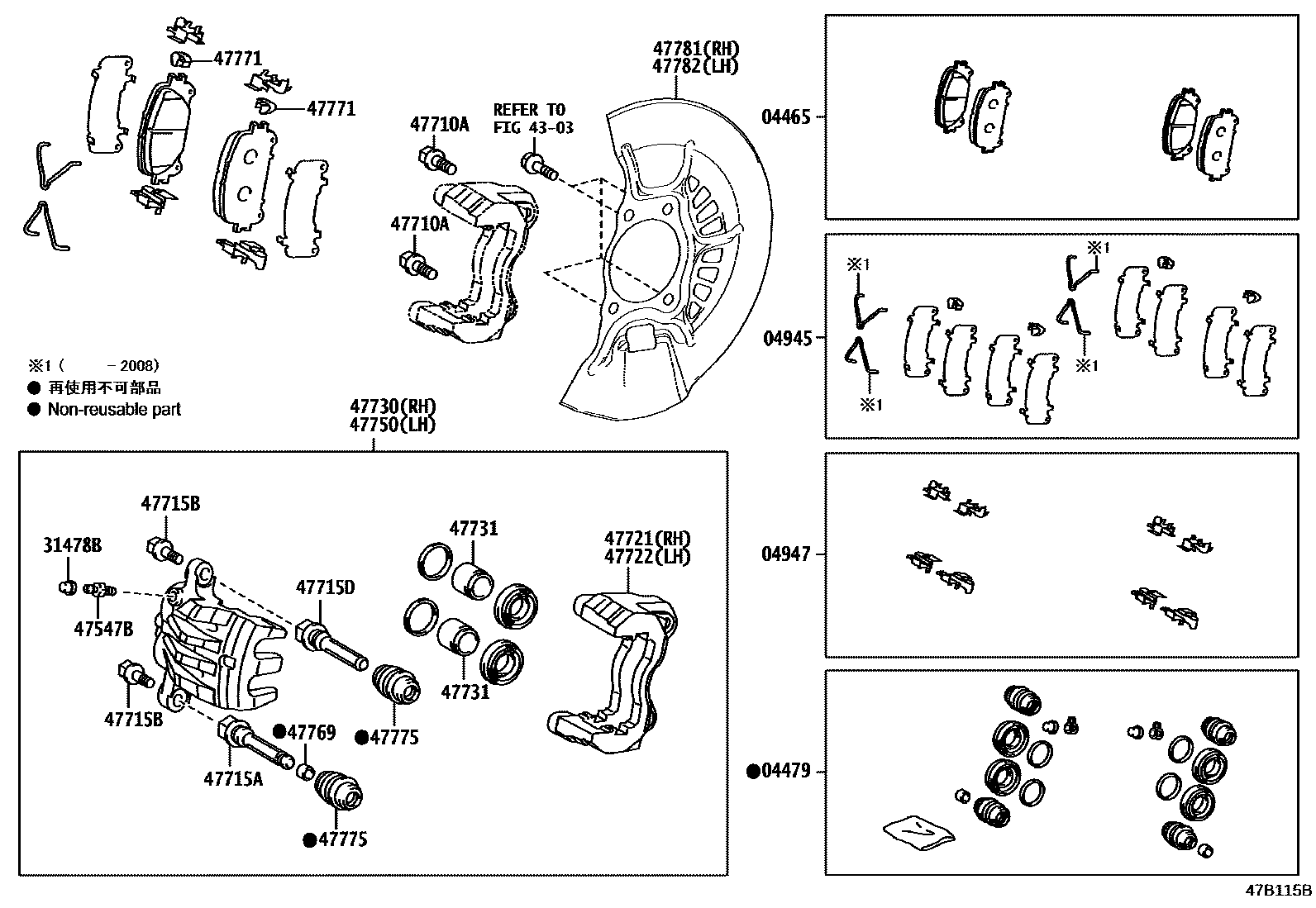

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-33490iGSX50201806-202008

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48200iGSX50201806-202008

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-33310iGSX50201806-202008

main04945-48160iGSX50202008

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iGSX50201806-202008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGSX50201806-202008

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iGSX50201806-202008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067iGSX50201806-202008

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iGSX50201806-202008

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90015-AA602iGSX50201806-202008

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iGSX50201806-202008

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iGSX50201806-202008

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iGSX50201806-202008

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48150iGSX50201806-202008

47731PISTON, FRONT DISC BRAKE

main47731-48150iGSX50201806-202008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48110iGSX50201806-202008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iGSX50201806-202008

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iGSX50201806-202008

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iGSX50201806-202008

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-06180iGSX50201806-202008

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-06180iGSX50201806-202008

20 parts on this diagram · 1 diagram in section
