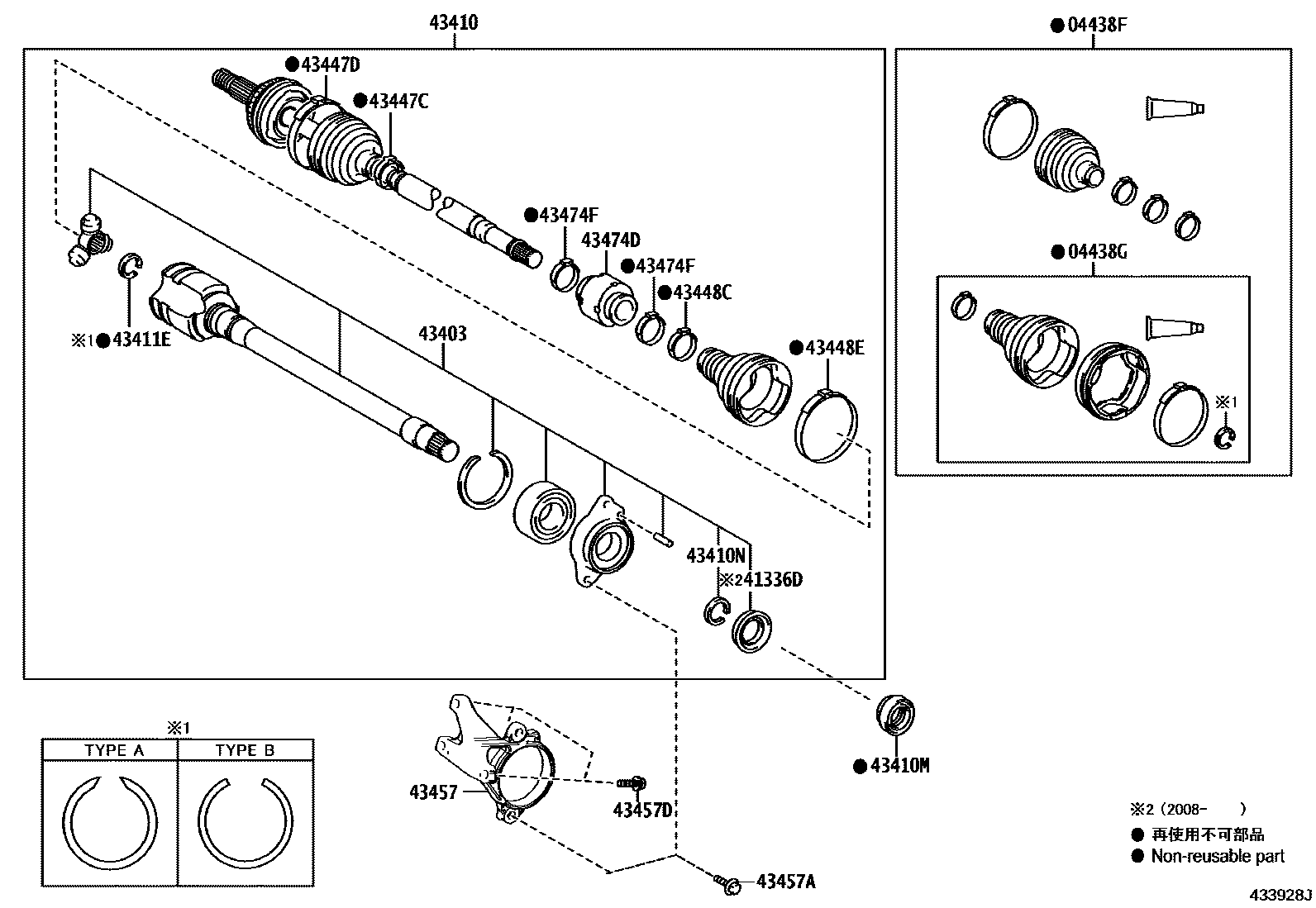

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-08190iGSX50201806-201902

main04427-08240iGSX50201902-202008

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-08070iGSX50201806-201902

main04437-08110iGSX50201902-202008

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-08020iGSX50202008

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-06040iGSX50201806-202008

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-07090iGSX50201806-201904

main43410-07091iGSX50201905-202008

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40046iGSX50201806-202008

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iGSX50201806-202008

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-06450iGSX50201902-202008

TYPE B:REFER ILLUST.

main43425-08040iGSX50201806-201902

TYPE A:REFER ILLUST.

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06A20iGSX50201806-202008

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06A30iGSX50201806-202008

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08080iGSX50201806-202008

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08110iGSX50201806-202008

43457BRACKET, DRIVE SHAFT BEARING

main43457-06210iGSX50201806-202008

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-A0259×2iGSX50201806-202008

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iGSX50201806-202008

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06540iGSX50201806-202008

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06790×2iGSX50201806-202008

17 parts on this diagram · 2 diagrams in section
