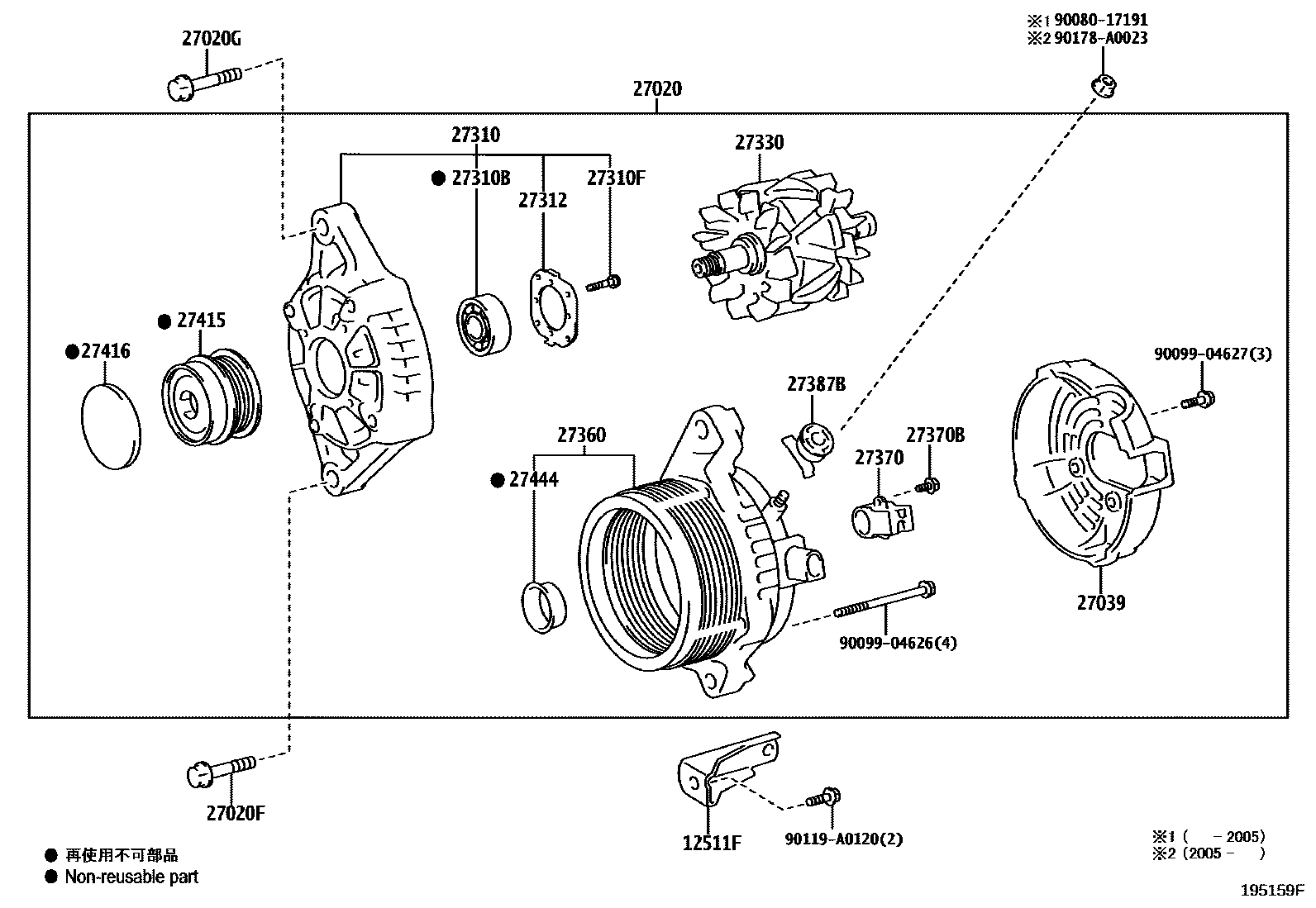

ALTERNATOR
12511FBRACKET, ALTERNATOR, NO.1
27020ALTERNATOR ASSY
12V 100A
12V 100A
12V 130A
12V 130A
27020FBOLT, NO.1(FOR ALTERNATOR)
27020GBOLT, NO.2(FOR ALTERNATOR)
(L)
(J)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)
27387BINSULATOR, ALTERNATOR TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27444PACKING, ALTERNATOR BEARING COVER
9008017191
main90080-17191
9009904626
main90099-04626
9009904627
main90099-04627
90119A0120
main90119-A0120
90178A0023
main90178-A0023
22 parts on this diagram · 1 diagram in section
