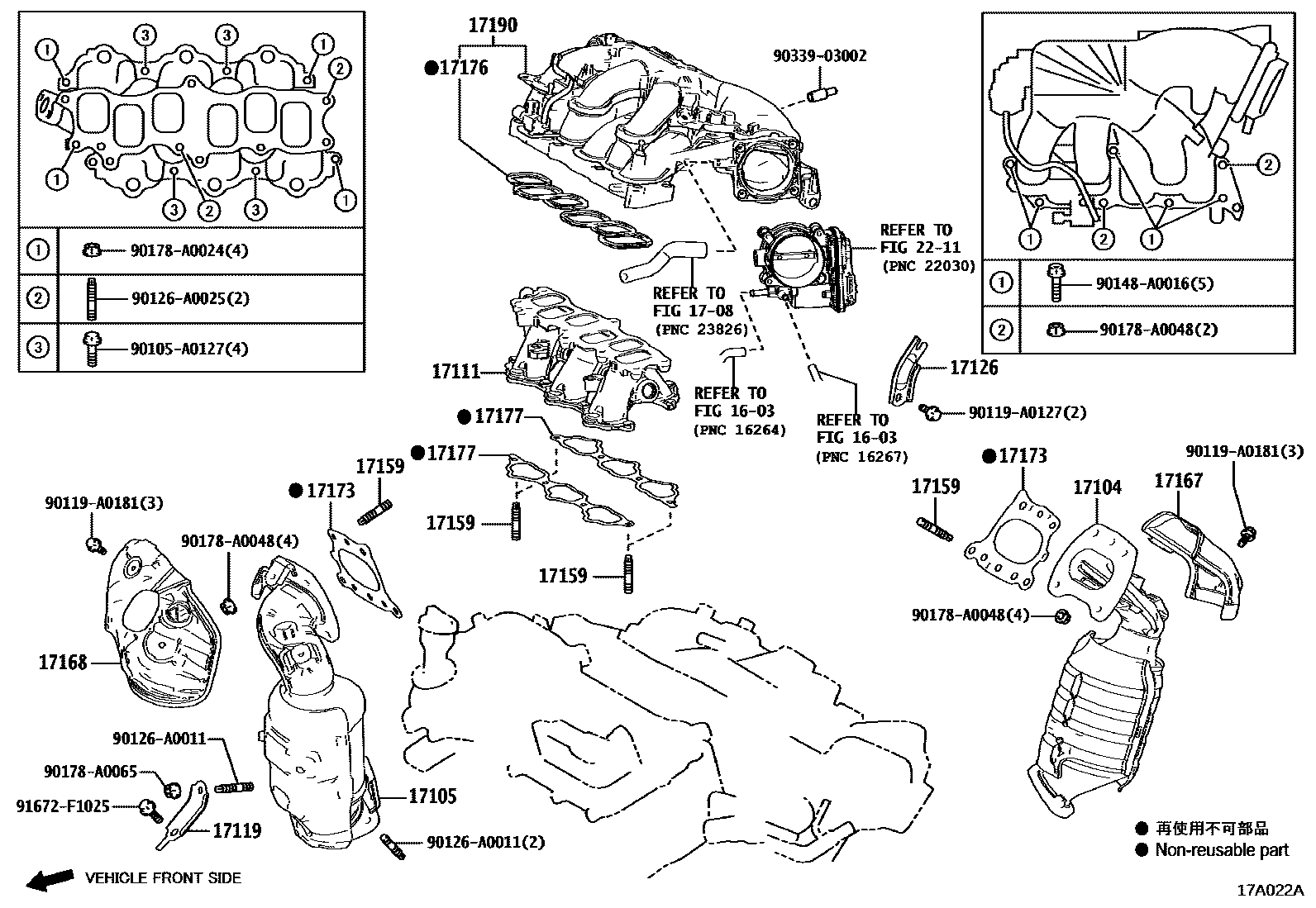

MANIFOLD

1603

1708

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17140-0P340i2GRFKS..GSX50201806-202008

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17150-0P340i2GRFKS..GSX50201806-202008

17111MANIFOLD, INTAKE

main17111-0P060i2GRFKS..GSX50201806-202008

17119STAY, MANIFOLD, NO.2

main17119-0P180i2GRFKS..GSX50201806-202008

17126STAY, SURGE TANK, NO.2

main17126-0P040i2GRFKS..GSX50201806-202008

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-A0019i2GRFKS..GSX50201806-202008

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0P010i2GRFKS..GSX50201806-202008

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0P040i2GRFKS..GSX50201806-202008

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0P040i2GRFKS..GSX50201806-202008

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31130i2GRFKS..GSX50201806-202008

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-0P030i2GRFKS..GSX50201806-202008

17190TANK ASSY, INTAKE AIR SURGE

main17190-0P110i2GRFKS..GSX50201806-202008

2211

90105A0127

main90105-A0127

90119A0127

main90119-A0127

90119A0181

main90119-A0181

90126A0011

main90126-A0011

90126A0025

main90126-A0025

90148A0016

main90148-A0016

90178A0024

main90178-A0024

90178A0048

main90178-A0048

90178A0065

main90178-A0065

9033903002

main90339-03002

91672F1025

main91672-F1025

26 parts on this diagram · 1 diagram in section
