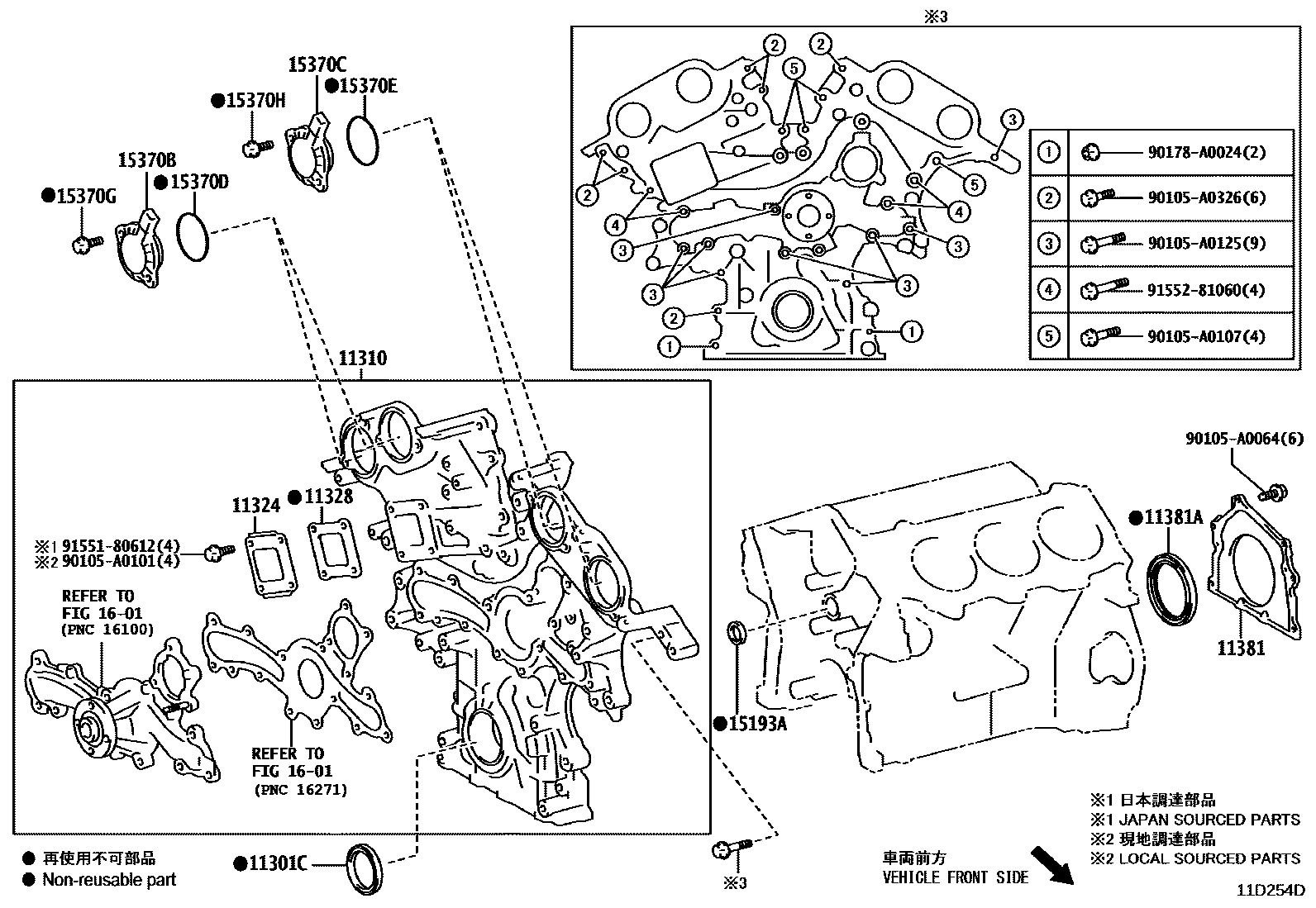

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-A0028i2GRFKS..GSX50202008

11310COVER ASSY, TIMING CHAIN

main11310-0P050i2GRFKS..GSX50201806-202008

11324PLATE, TIMING CHAIN COVER

main11324-0P010i2GRFKS..GSX50201806-202008

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0P010i2GRFKS..GSX50201806-202008

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0P020i2GRFKS..GSX50201806-202008

11381ASEAL, ENGINE REAR OIL

main90311-A0027i2GRFKS..GSX50201806-202008

15193AGASKET, OIL PUMP

main15193-0P010i2GRFKS..GSX50202008

(L)

main15193-31020i2GRFKS..GSX50201806-202008

(J)

15370BSOLENOID ASSY, CAM TIMING OIL CONTROL, RH

main15370-0P020×2i2GRFKS..GSX50201806-202008

15370CSOLENOID ASSY, CAM TIMING OIL CONTROL, LH

main15370-0P020×2i2GRFKS..GSX50201806-202008

15370DRING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)

main90301-50003×2i2GRFKS..GSX50201806-202008

15370ERING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)

main90301-50003×2i2GRFKS..GSX50201806-202008

15370GBOLT(FOR CAM TIMING OIL CONTROL SOLENOID RH)

main90105-A0064×4i2GRFKS..GSX50201806-202008

15370HBOLT(FOR CAM TIMING OIL CONTROL SOLENOID LH)

main90105-A0064×4i2GRFKS..GSX50201806-202008

1601WATER PUMP

→ Go to FIG 16-01

90105A0064

main90105-A0064

90105A0101

main90105-A0101

90105A0107

main90105-A0107

90105A0125

main90105-A0125

90105A0326

main90105-A0326

90178A0024

main90178-A0024

9155180612

main91551-80612

9155281060

main91552-81060

22 parts on this diagram · 2 diagrams in section
