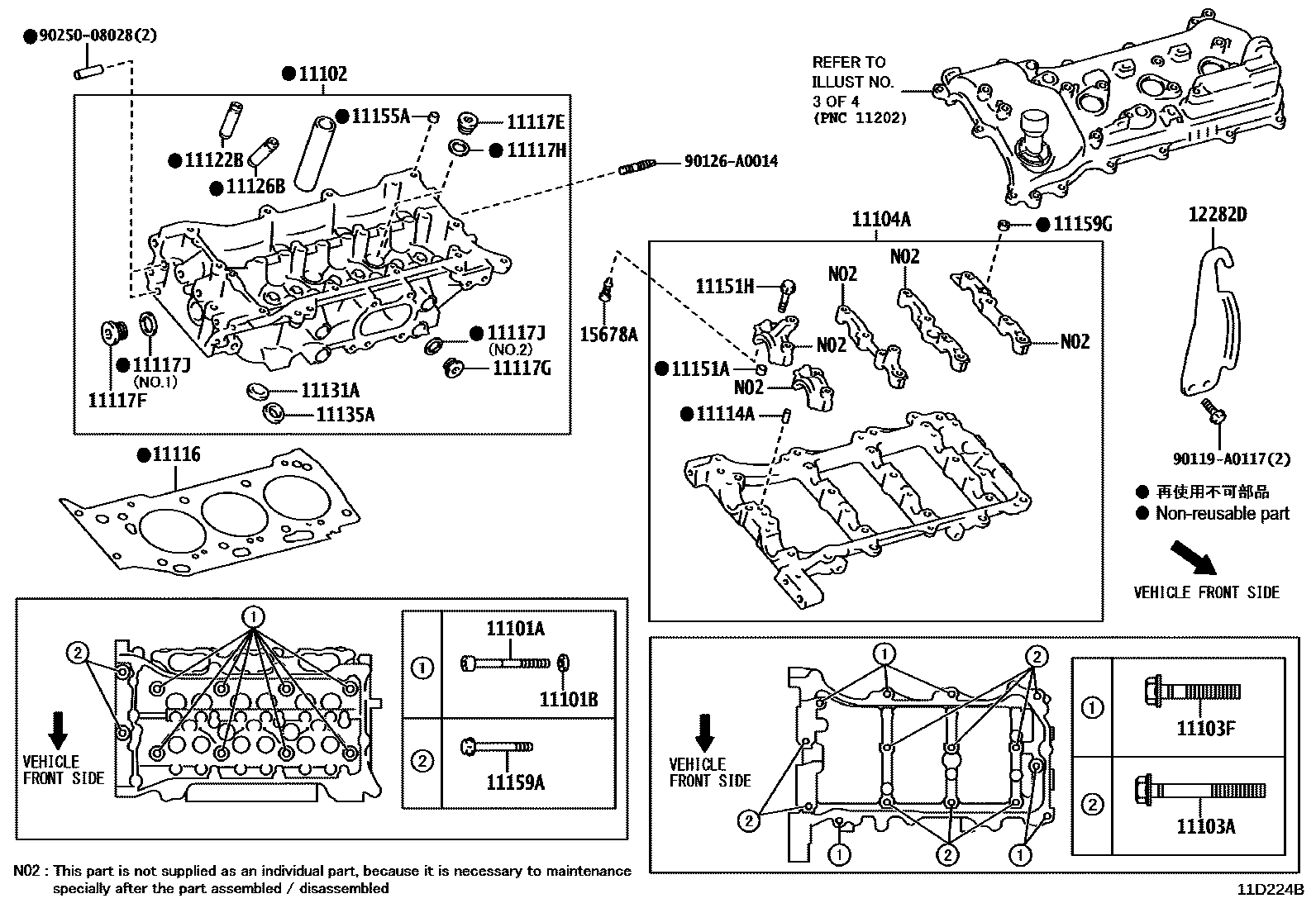

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11103ABOLT(FOR CAMSHAFT HOUSING SET)
11103FBOLT(FOR CAMSHAFT HOUSING SET)
11114APIN, STRAIGHT
L=13.8,OD=5.0,(J)
L=13.8,OD=5.0,(L)
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(L)
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
(J)
(L)
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
NO.2
NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
STD
STD,(L)
O/S 0.03,(L)
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD,(L)
STD
O/S 0.03
O/S 0.03,(L)
11135SEAT, EXHAUST VALVE
STD
STD,(L)
STD,(J)
O/S 0.03,(L)
O/S 0.03
O/S 0.03,(J)
11135ASEAT, EXHAUST VALVE, NO.2
STD
STD,(L)
STD,(J)
O/S 0.03
O/S 0.03,(L)
O/S 0.03,(J)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
12282DHANGER, ENGINE, NO.2
15678AFILTER, OIL CONTROL VALVE
90119A0117
main90119-A0117
90126A0014
main90126-A0014
9025008028
main90250-08028
33 parts on this diagram · 5 diagrams in section
