SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1SEAT 0009 1DOOR & ROOF 0010 1FLOOR & LUGGAGE

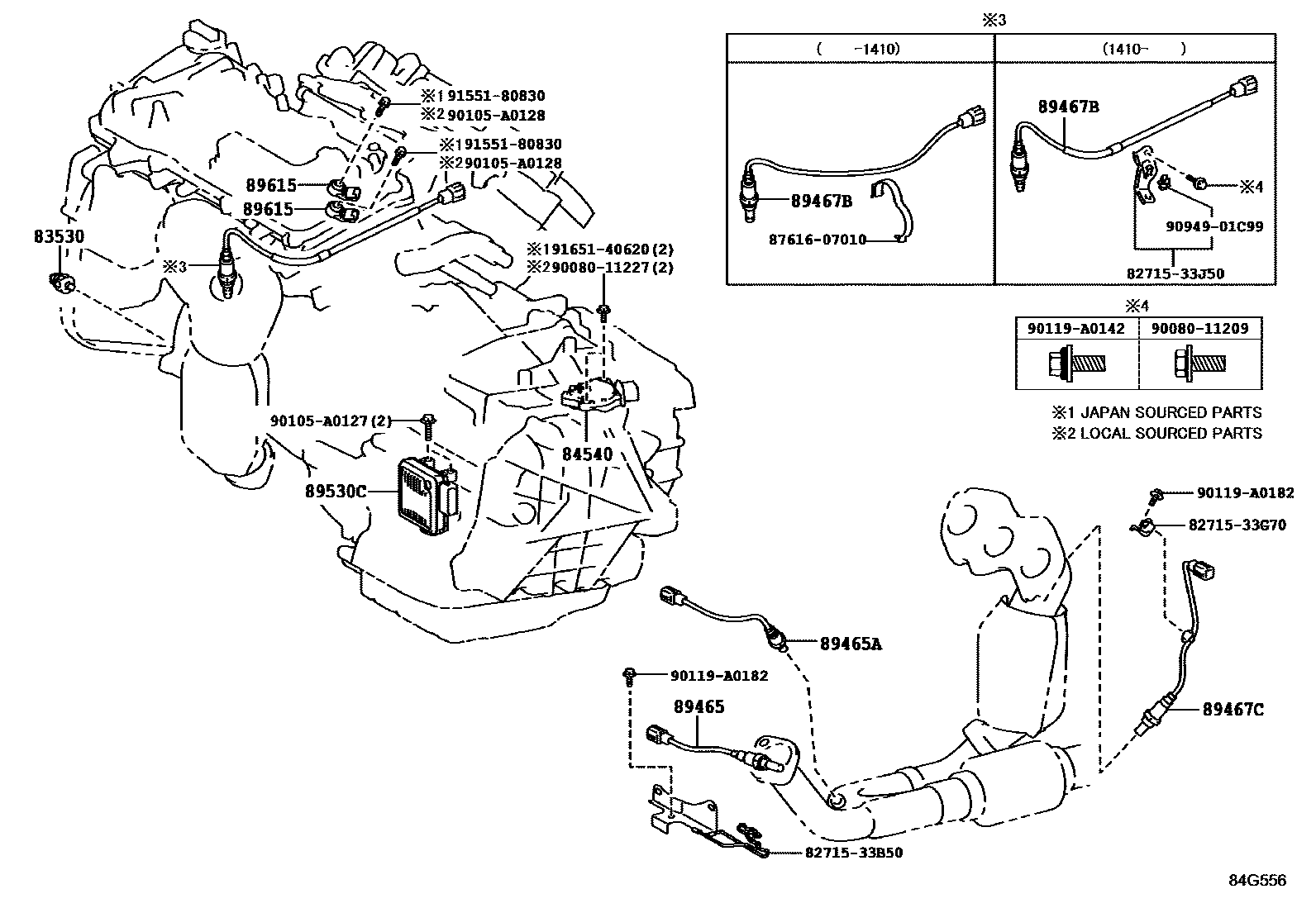

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iGSX40201210-201510

(L)

main83530-28020iGSX40201210-201510

(J)

84540SWITCH ASSY, NEUTRAL START

main84540-07010iGSX40201210-201510

(L)

main84540-33010iGSX40201210-201510

(J)

89465SENSOR, OXYGEN

main89465-06250iGSX40201210-201510

89465ASENSOR, OXYGEN NO.2

main89465-07080iGSX40201210-201510

89467BSENSOR, AIR FUEL RATIO

main89467-06130iGSX40201210-201410

main89467-0E130iGSX40201410-201510

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06140iGSX40201210-201510

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-07080iGSX40201210-201510

main89530-07120iGSX40201510

89615SENSOR, KNOCK CONTROL

main89615-06010iGSX40201210-201510

(L)

main89615-20090iGSX40201210-201510

(J)

8271533B50BRACKET,WIRING HARNESS CLAMP

main82715-33B50

8271533G70BRACKET,WIRING HARNESS CLAMP

main82715-33G70

8271533J50BRACKET,WIRING HARNESS CLAMP

main82715-33J50

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

9008011209

main90080-11209

9008011227

main90080-11227

90105A0127

main90105-A0127

90105A0128

main90105-A0128

90119A0142

main90119-A0142

90119A0182

main90119-A0182

9094901C99

main90949-01C99

9155180830

main91551-80830

9165140620

main91651-40620

21 parts on this diagram · 10 diagrams in section
