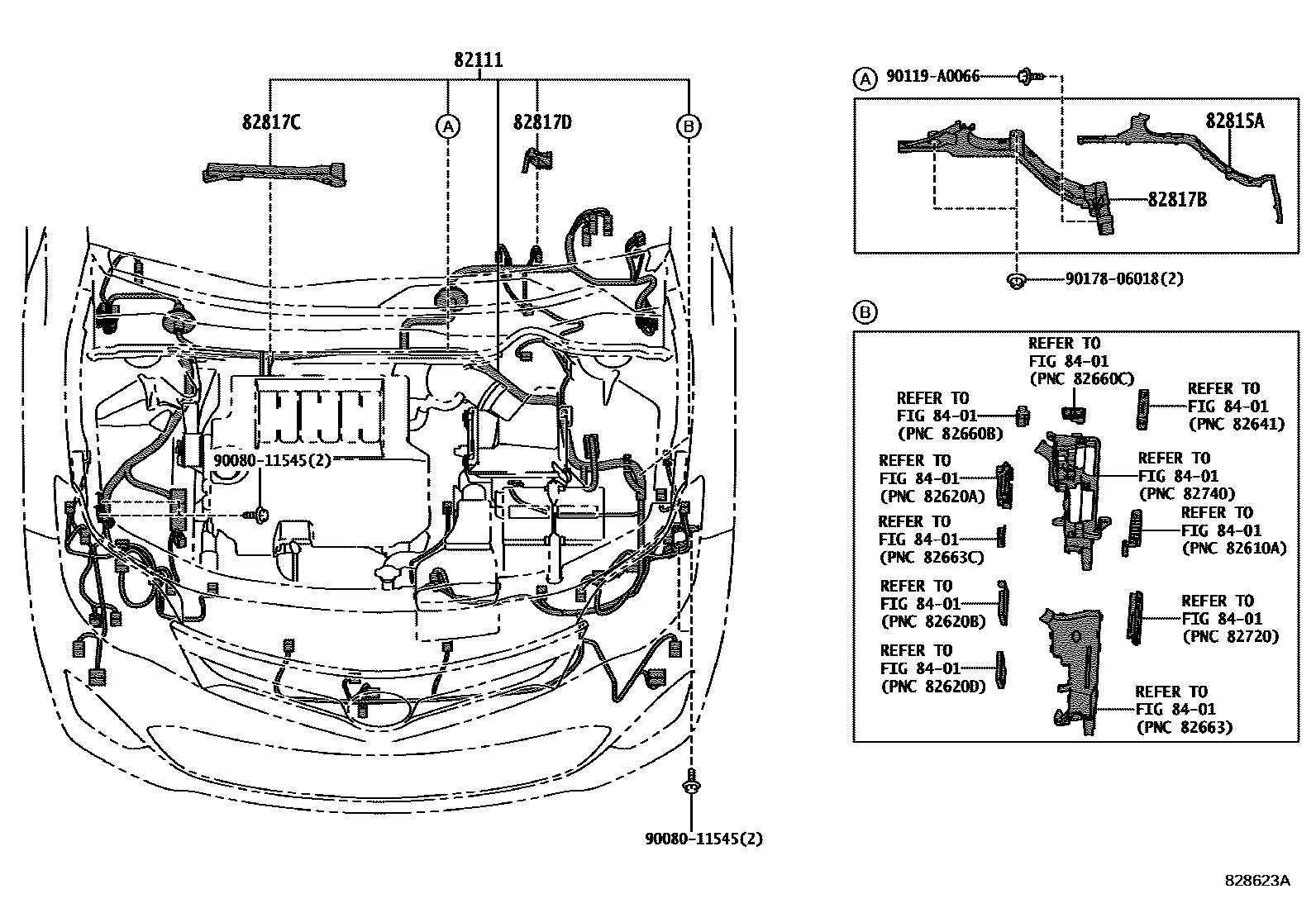

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-07790i201210-201410

main82111-07791i201410-201411

main82111-07792i201412-201510

main82111-07A00i201510-201511

main82111-07810supersedes 82111-07800i201210-201410

PRE-COLLISION SYSTEM-WITH(W/OFF SWITCH)&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

main82111-07811supersedes 82111-07801i201410-201411

PRE-COLLISION SYSTEM-WITH(W/OFF SWITCH)&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

main82111-07812supersedes 82111-07A11i201412-201510

PRE-COLLISION SYSTEM-WITH(W/OFF SWITCH)&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

main82111-07A20supersedes 82111-07A11i201510-201511

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

main82111-07A21supersedes 82111-07A11i201512

CRUISE CONTROL-WITH(MICRO WAVE TYPE)&AUDIO-AVN & 11SPEAKER

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-33420i201210-201510

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-07500i201210-201510

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-33B60i201210-201510

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-33G90i201210-201510

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-33K00i201210-201510

8401SWITCH & RELAY & COMPUTER

9008011545

90119A0066

9017806018

10 parts on this diagram · 10 diagrams in section
