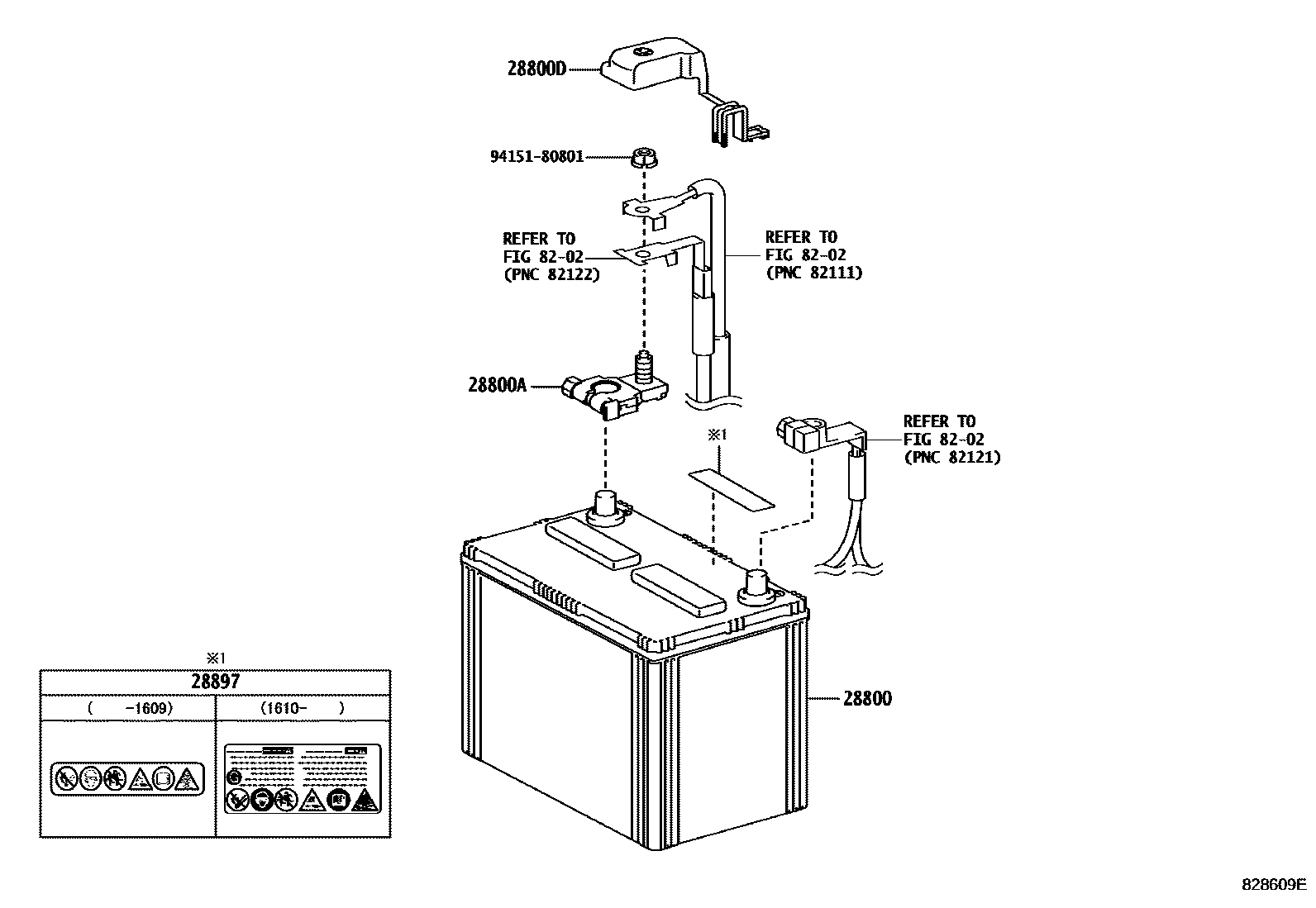

BATTERY & BATTERY CABLE

28800BATTERY

main28800-03044i2GRFE..GSX40201210-201510

80D26L,JOHNSON CONTROLS

main28800-03045i2GRFE..GSX40201604

80D26L,JOHNSON CONTROLS

main28800-AA041i2GRFE..GSX40201210-201510

80D26L,EXIDE

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFE..GSX40201510

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i2GRFE..GSX40201210-201510

28897PLATE, BATTERY CAUTION

main28897-0P010i2GRFE..GSX40201210-201510

main28897-36040i2GRFE..GSX40201610

8202WIRING & CLAMP

→ Go to FIG 82-02

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
