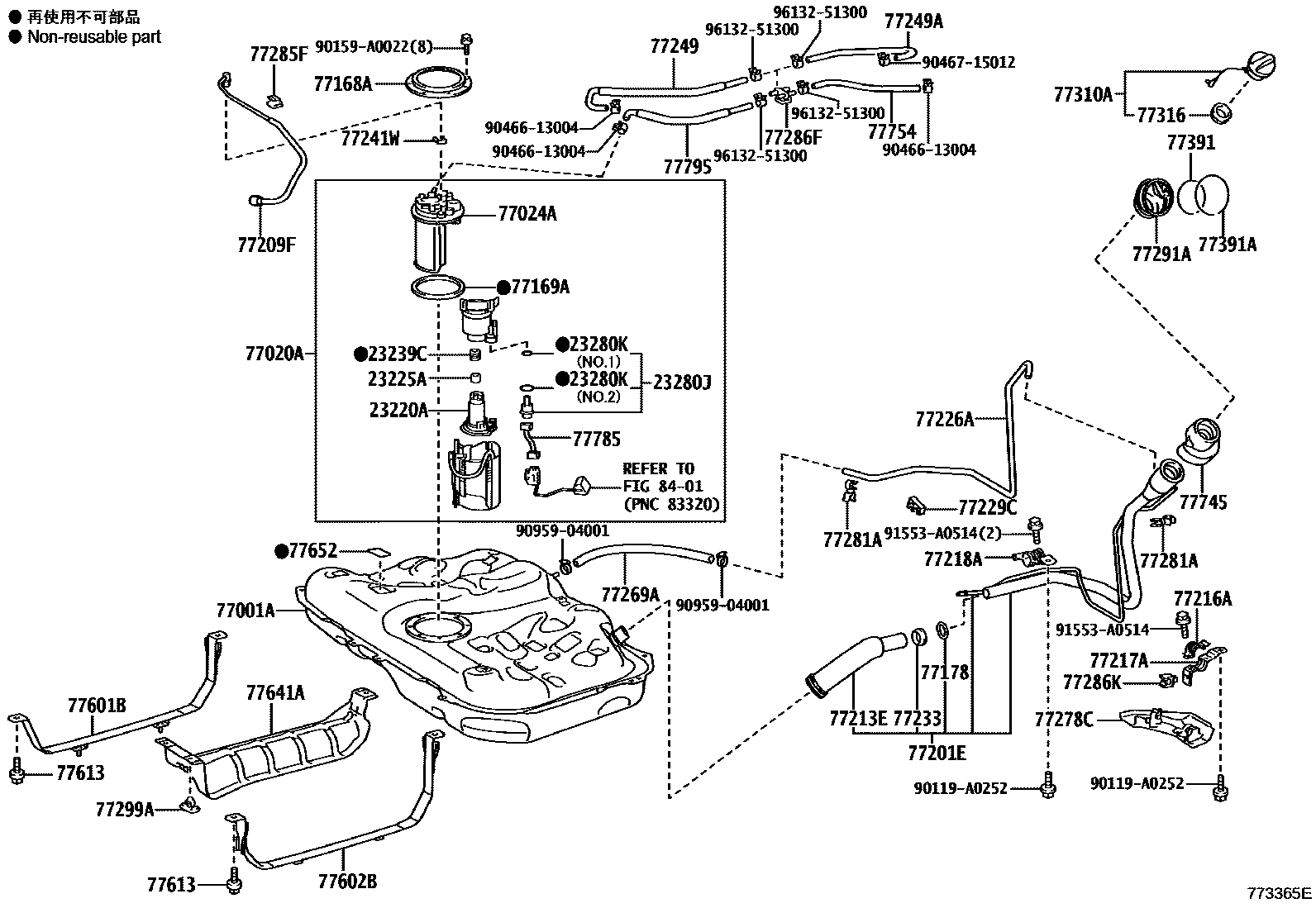

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-31370i2GRFE..GSX40201210-201510

23225ASPACER, FUEL PUMP

main23225-21010i2GRFE..GSX40201210-201510

23239CSEAL, FUEL PUMP FILTER

main23239-21010i2GRFE..GSX40201210-201510

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-38020i2GRFE..GSX40201210-201510

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2GRFE..GSX40201210-201510

NO.1

main90301-15024i2GRFE..GSX40201210-201510

NO.2

77001ATANK SUB-ASSY, FUEL

main77001-07060iGSX40201210-201510

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-33380iGSX40201210-201412

main77020-33381iGSX40201501-201803

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-33190iGSX40201210-201803

77168APLATE, FUEL TANK VENT TUBE SET

main77168-41010iGSX40201210-201510

77169AGASKET, FUEL SUCTION TUBE SET

main77169-53010iGSX40201210-201510

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-33020iGSX40201210-201510

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-33350iGSX40201210-201706

main77201-33460iGSX40201706

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-06051iGSX40201210-201408

main77209-06052iGSX40201409-201510

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-33110iGSX40201210-201510

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-33120iGSX40201210-201503

main77216-33140iGSX40201412-201510

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-33050iGSX40201210-201503

main77217-33080iGSX40201412-201510

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-33070iGSX40201210-201510

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-33110iGSX40201210-201510

77229CCLAMP, BREATHER TUBE

main77229-47060iGSX40201210-201510

77233JOINT, FUEL HOSE

main77233-33050iGSX40201210-201510

77241WCLIP, TUBE JOINT

main77241-06020iGSX40201210-201510

77249HOSE, FUEL EMISSION

main77249-07040iGSX40201210-201510

77249AHOSE, FUEL EMISSION

main77249-07050iGSX40201210-201510

77269AHOSE, FUEL TANK BREATHER

main95313-13038iGSX40201210-201510

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77278-33040iGSX40201210-201510

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-06020iGSX40201210-201510

77281ACLAMP, FUEL FILLER PIPE

main77281-33090iGSX40201210-201510

77285FCLAMP, FUEL TUBE, NO.1

main77285-33110iGSX40201210-201510

77286FCLAMP, FUEL TUBE, NO.2

main77286-07020iGSX40201210-201510

77286KCLAMP, FUEL TUBE, NO.2

main77286-42060iGSX40201210-201510

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-07020iGSX40201210-201510

77299ACLAMP, FUEL TUBE, NO.5

main77299-06070iGSX40201402-201510

main77299-52010iGSX40201210-201401

77310ACAP ASSY, FUEL TANK

main77300-12020iGSX40201706

main77300-52030iGSX40201210-201706

77316GASKET, FUEL TANK CAP

main77316-52040iGSX40201210-201510

77391RING, FUEL INLET BOX

main77391-02041iGSX40201210-201510

77391ARING, FUEL INLET BOX

main77391-07010iGSX40201210-201510

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-06080iGSX40201210-201510

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-06080iGSX40201210-201510

77613BOLT, FUEL TANK BAND SET

main90119-10971iGSX40201210-201510

(J)

main90119-A0267iGSX40201210-201510

(L)

77641APROTECTOR, FUEL TANK, NO.1

main77641-06010iGSX40201210-201510

77652CUSHION, FUEL TANK, NO.1

main77651-20090iGSX40201210-201510

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-12050iGSX40201302-201804

main77745-52030iGSX40201210-201301

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main95326-09028iGSX40201210-201510

L=260

77785HARNESS, FUEL PUMP

main77785-33071iGSX40201210-201709

main77785-33200iGSX40201710

77795HOSE, CHARCOAL CANISTER OUTLET, NO.2

main77795-07010iGSX40201210-201510

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119A0252

main90119-A0252

90159A0022

main90159-A0022

9046613004

main90466-13004

9046715012

main90467-15012

9095904001

main90959-04001

91553A0514

main91553-A0514

9613251300

main96132-51300

53 parts on this diagram · 3 diagrams in section
