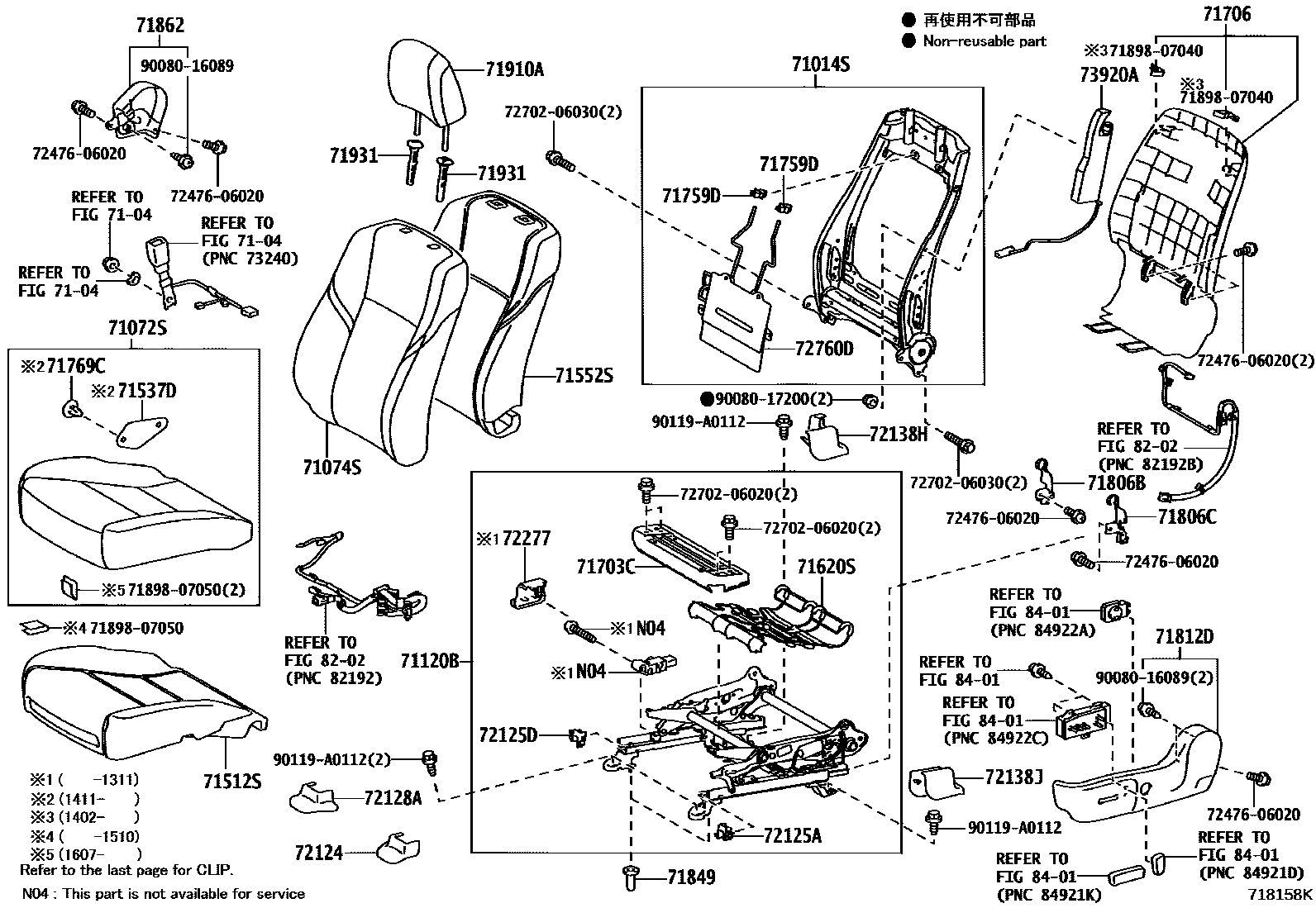

FRONT SEAT & SEAT TRACK

0001 1DRIVER 0002 1DRIVER W(SEAT AIR CONDITIONER0003 1PASSENGER 0004 1PASSENGER W(SEAT AIR CONDITIO0005 1CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71104-07020iGSX40..LIMD201210-201510

main71104-07030iGSX40..XLE201510

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-07180-A3iGSX40..XLE201210-201510

FLAXEN,TRIM0#

main71072-07180-A4iGSX40..XLE201510-201801

FLAXEN,TRIM0#

main71072-07180-B3iGSX40..XLE201210-201510

LT.GRAY,TRIM1#

main71072-07180-B4iGSX40..XLE201510-201801

LT GRAY,TRIM1#

main71072-07180-C3iGSX40..XLE201210-201510

BLACK,TRIM2#

main71072-07180-C4iGSX40..XLE201510-201801

BLACK,TRIM2#

main71072-07181-A4iGSX40..XLE201801

FLAXEN,TRIM0#

main71072-07181-B4iGSX40..XLE201801

LT GRAY,TRIM1#

main71072-07181-C4iGSX40..XLE201801

BLACK,TRIM2#

main71072-07200-A2iGSX40..LIMD201210-201312

FLAXEN,TRIM0#

main71072-07200-B2iGSX40..LIMD201210-201312

LT GRAY,TRIM1#

main71072-07200-C2iGSX40..LIMD201210-201312

BLACK,TRIM2#

main71072-07201-A2iGSX40..LIMD201401-201406

FLAXEN,TRIM0#

main71072-07201-B2iGSX40..LIMD201401-201406

LT GRAY,TRIM1#

main71072-07201-C2iGSX40..LIMD201401-201406

BLACK,TRIM2#

main71072-07202-A2iGSX40..LIMD201407-201510

FLAXEN,TRIM0#

main71072-07202-A3iGSX40..LIMD201510

FLAXEN,TRIM0#

main71072-07202-B2iGSX40..LIMD201407-201510

LT. GRAY,TRIM1#

main71072-07202-B4iGSX40..LIMD201510

LT. GRAY,TRIM1#

main71072-07202-C2iGSX40..LIMD201407-201510

BLACK,TRIM2#

main71072-07202-C3iGSX40..LIMD201510

BLACK,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-07300-A2iGSX40..XLE201210-201410

FLAXEN,TRIM0#

main71074-07300-A3iGSX40..XLE201410-201510

FLAXEN,TRIM0#

main71074-07300-B2iGSX40..XLE201210-201410

LT.GRAY,TRIM1#

main71074-07300-B3iGSX40..XLE201410-201510

LT GRAY,TRIM1#

main71074-07300-C2iGSX40..XLE201210-201410

BLACK,TRIM2#

main71074-07300-C3iGSX40..XLE201410-201510

BLACK,TRIM2#

main71074-07320-A2iGSX40..LIMD201210-201312

FLAXEN,TRIM0#

main71074-07320-B2iGSX40..LIMD201210-201312

LT GRAY,TRIM1#

main71074-07320-C2iGSX40..LIMD201210-201312

BLACK,TRIM2#

main71074-07321-A2iGSX40..LIMD201401-201410

FLAXEN,TRIM0#

main71074-07321-A3iGSX40..LIMD201410-201510

FLAXEN,TRIM0#

main71074-07321-B2iGSX40..LIMD201401-201410

LT GRAY,TRIM1#

main71074-07321-B3iGSX40..LIMD201410-201510

LT. GRAY,TRIM1#

main71074-07321-C2iGSX40..LIMD201401-201410

BLACK,TRIM2#

main71074-07321-C3iGSX40..LIMD201410-201510

BLACK,TRIM2#

main71074-07330-A1iGSX40..XLE201510

FLAXEN,TRIM0#

main71074-07330-B1iGSX40..XLE201510

LT. GRAY,TRIM1#

main71074-07330-C1iGSX40..XLE201510

BLACK,TRIM2#

main71074-07350-A1iGSX40..LIMD201510

FLAXEN,TRIM0#

main71074-07350-B1iGSX40..LIMD201510

LT. GRAY,TRIM1#

main71074-07350-C1iGSX40..LIMD201510

BLACK,TRIM2#

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-07060iGSX40..LIMD201210-201310

main71120-07061iGSX40..LIMD201310-201311

main71120-07062iGSX40..LIMD201510

main71120-07070iGSX40..XLE201210-201310

main71120-07071iGSX40..XLE201310-201311

main71120-07072iGSX40..XLE201311-201510

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-07010iGSX40..XLE201210-201510

main71512-07020iGSX40..LIMD201210-201510

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-06190iGSX40201510

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-07050iGSX40..XLE201210-201510

main71552-07080iGSX40..LIMD201210-201510

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-06370iGSX40201210-201510

71703CPANEL SUB-ASSY, FRONT SEAT CUSHION

main71703-06010iGSX40..XLE201510

main71703-07010iGSX40..LIMD201510

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-07070-A0iGSX40201210-201308

FLAXEN,TRIM0#

main71705-07070-B0iGSX40201210-201308

LT GRAY,TRIM1#

main71705-07070-C0iGSX40201210-201308

BLACK,TRIM2#

main71705-07071-A0iGSX40201510

FLAXEN,TRIM0#

main71705-07071-B0iGSX40201309-201510

LT.GRAY,TRIM1#

main71705-07071-C0iGSX40201309-201510

BLACK,TRIM2#

71759DHOOK, FRONT SEATBACK, NO.2

main71759-06020×2iGSX40201210-201510

71769CCLIP, FRONT SEAT CUSHION COVER

main71769-60010-A4iGSX40..LIMD; GSX40..XLE201411-201510

FLAXEN,TRIM0#

main71769-60010-C0iGSX40..LIMD; GSX40..XLE201510

BLACK,TRIM2#

main71769-60010-P1iGSX40..LIMD; GSX40..XLE201411-201510

LT.GRAY,TRIM1#

71806BSHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1

main71806-06010-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

71806CSHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2

main71806-06020-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-06200-C0iGSX40..XLE201210-201510

BLACK,TRIM0#,1#,2#

main71812-07070-C0iGSX40..LIMD201210-201510

BLACK,TRIM0#,1#,2#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-0T020×2iGSX40201210-201510

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06140-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

71910AHEADREST ASSY, FRONT SEAT

main71910-07140-A4×2iGSX40..XLE201210-201510

FLAXEN,TRIM0#

main71910-07140-A5×2iGSX40..XLE201510-201703

FLAXEN,TRIM0#

main71910-07140-B4×2iGSX40..XLE201210-201510

LT GRAY,TRIM1#

main71910-07140-B5×2iGSX40..XLE201510-201703

LT GRAY,TRIM1#

main71910-07140-C4×2iGSX40..XLE201210-201510

BLACK,TRIM2#

main71910-07140-C6×2iGSX40..XLE201510-201703

BLACK/AMBER,TRIM2#

main71910-07141-A5×2iGSX40..XLE201703

FLAXEN,TRIM0#

main71910-07141-B5×2iGSX40..XLE201703

LT GRAY,TRIM1#

main71910-07141-C6×2iGSX40..XLE201703

BLACK/AMBER,TRIM2#

main71910-07160-A0×2iGSX40..LIMD201210-201510

FLAXEN,TRIM0#

main71910-07160-A1×2iGSX40..LIMD201510-201703

FLAXEN,TRIM0#

main71910-07160-B0×2iGSX40..LIMD201210-201510

LT GRAY,TRIM1#

main71910-07160-B2×2iGSX40..LIMD201510-201703

LT. GRAY,TRIM1#

main71910-07160-C0×2iGSX40..LIMD201210-201510

BLACK,TRIM2#

main71910-07160-C1×2iGSX40..LIMD201510-201703

BLACK,TRIM2#

main71910-07161-A1×2iGSX40..LIMD201703

FLAXEN,TRIM0#

main71910-07161-B2×2iGSX40..LIMD201703

LT GRAY,TRIM1#

main71910-07161-C1×2iGSX40..LIMD201703

BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-A7×2iGSX40201210-201510

W(LOCK),FLAXEN,TRIM0#

main71930-47020-B1×2iGSX40201510

W(LOCK),LT.GRAY,TRIM1#

main71930-47020-C0×2iGSX40201210-201510

W(LOCK),BLACK,TRIM2#

main71930-47020-C4×2iGSX40201710

W(LOCK),BLACK,TRIM2#

main71931-47020-A7×2iGSX40201510

W/O(LOCK),FLAXEN,TRIM0#

main71931-47020-B1×2iGSX40201510

W/O(LOCK),LT.GRAY,TRIM1#

main71931-47020-C0×2iGSX40201510-201710

W/O(LOCK),BLACK,TRIM2#

main71931-47020-C4×2iGSX40201710

W/O(LOCK),BLACK,TRIM2#

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-07020-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-06010×3iGSX40201504-201510

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-06020×3iGSX40201210-201504

72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-07020-C0iGSX40201510

BLACK,TRIM0#,1#,2#

72138HCOVER, FRONT SEAT TRACK, LH REAR INNER

main72158-07030-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72138-07030-C0iGSX40201210-201510

BLACK,TRIM0#,1#,2#

72277PROTECTOR, SEAT SLIDE POSITION SENSOR,

main72277-06010iGSX40201210-201311

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-07010iGSX40..XLE201210-201510

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-07030iGSX40201210-201510

main73920-07040iGSX40201510

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

7189807040RETAINER, REAR SEATBACK COVER SIDE

main71898-07040

7189807050RETAINER, REAR SEATBACK COVER SIDE

main71898-07050

7247606020SCREW, HORIZONTAL JACK, INNER

main72476-06020

7270206020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-06020

7270206030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-06030

9008016089

main90080-16089

9008017200

main90080-17200

90119A0112

main90119-A0112

39 parts on this diagram · 5 diagrams in section
