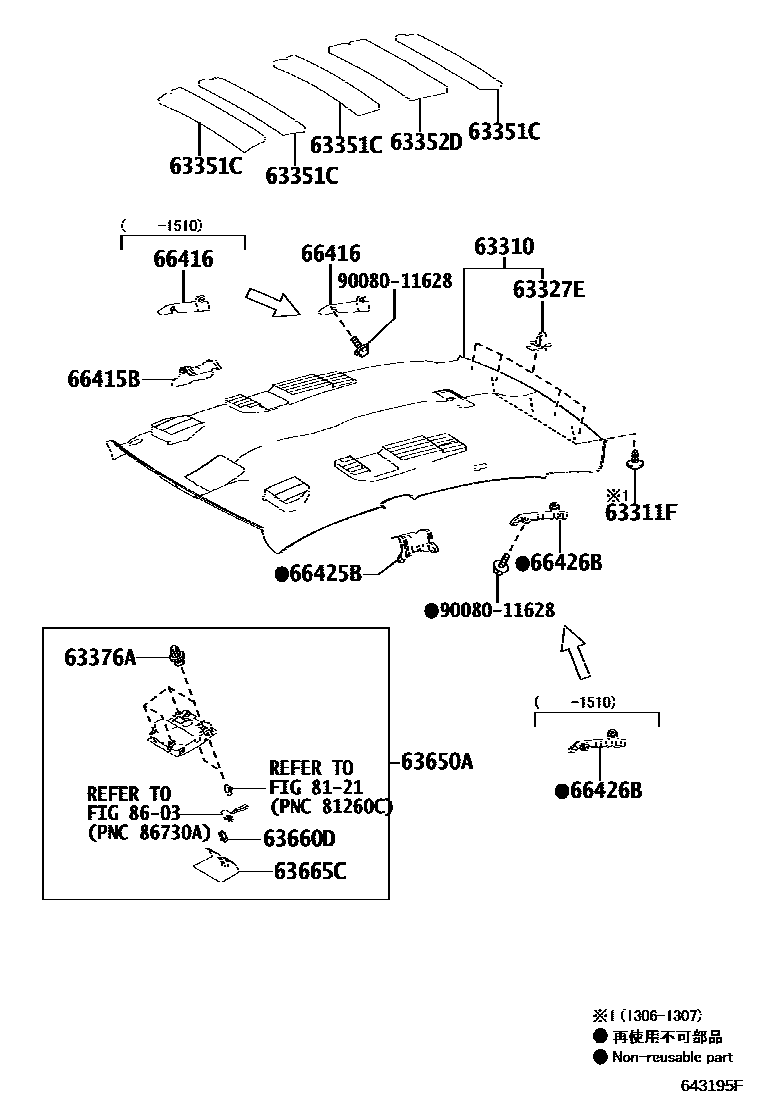

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
FLAXEN,TRIM0#; MOON ROOF-WITH,FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#; MOON ROOF-WITH,LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#; MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#; MOON ROOF-WITH(TILT & SLIDE),LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#; MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#; MOON ROOF-WITH(TILT & SLIDE),LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#; MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#; MOON ROOF-WITH(TILT & SLIDE),LT GRAY,TRIM1#,2#
FLAXEN,TRIM0#; MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#
LT GRAY,TRIM1#,2#; MOON ROOF-WITH(TILT & SLIDE),LT GRAY,TRIM1#,2#
63311FCLIP, ROOF HEADLINING, NO.1
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
63327EFASTENER, ROOF HEADLINING, NO.1
MOON ROOF-WITH(TILT & SLIDE),NO.1:REFER ILLUST.; NO.1:REFER ILLUST.
MOON ROOF-WITH,NO.2:REFER ILLUST.; NO.2:REFER ILLUST.
MOON ROOF-WITH(TILT & SLIDE),NO.3:REFER ILLUST.; NO.3:REFER ILLUST.
63351CPAD, ROOF HEADLINING
63352DPAD, ROOF HEADLINING, NO.2
63376ACLIP, HEADLINING, NO.2
63650ABOX ASSY, ROOF CONSOLE
FLAXEN,TRIM0#
LT.GRAY,TRIM1#,2#
MOON ROOF-WITH(TILT & SLIDE),FLAXEN,TRIM0#
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
63660DLOCK ASSY, ROOF CONSOLE
63665CMAT, ROOF CONSOLE BOX
8121INTERIOR LAMP
8603NAVIGATION & FRONT MONITOR DISPLAY
9008011628
main90080-11628
16 parts on this diagram · 2 diagrams in section
