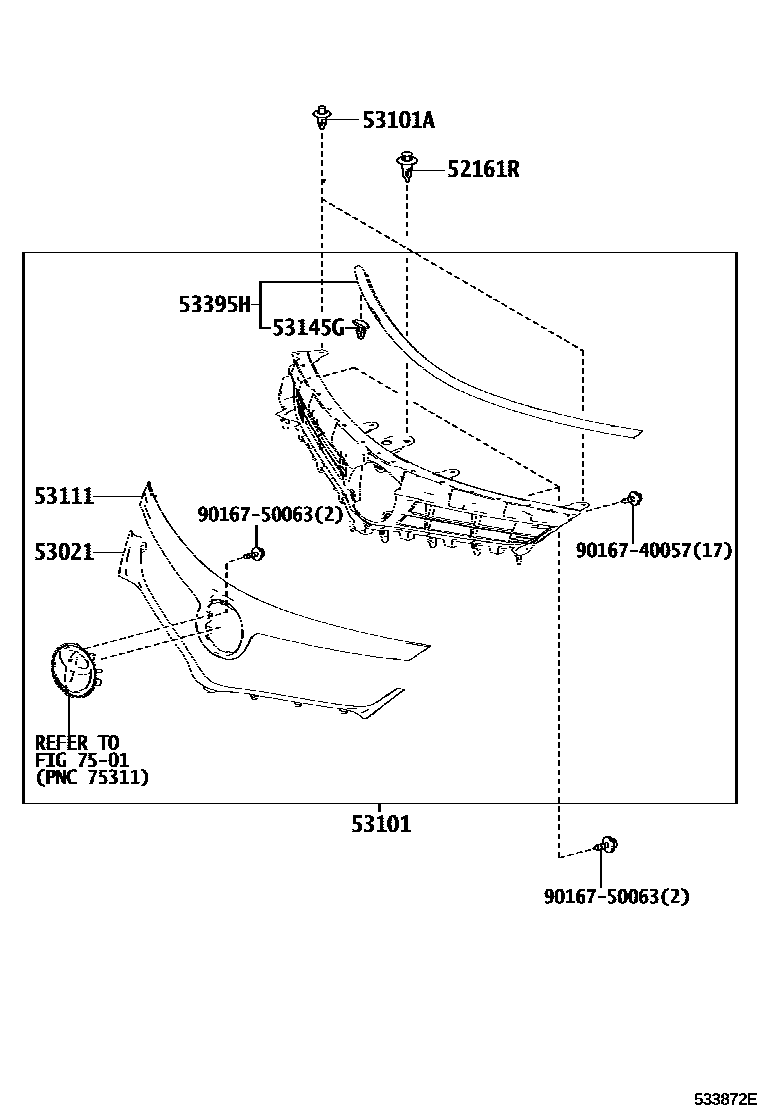

RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-02020iGSX40201210-201510

53021GARNISH, RADIATOR GRILLE, LOWER

main53142-07010iGSX40201210-201510

53101GRILLE SUB-ASSY, RADIATOR

main53101-07010iGSX40201210-201510

PLATED

main53101-07090iGSX40201510

PLATED

main53101-07020iGSX40..LIMD201210-201510

PLATED,CRUISE CONTROL-WITH(MICRO WAVE TYPE)

main53101-07100iGSX40..LIMD201510

PLATED,CRUISE CONTROL-WITH(MICRO WAVE TYPE)

53101ACLIP, RADIATOR GRILLE

main90467-A0016-C0×2iGSX40201210-201510

BLACK

main90467-A0016-C3×2iGSX40201706

BLACK

53111GRILLE, RADIATOR

main53111-07020iGSX40201210-201510

PLATED

main53111-07040iGSX40201510

PLATED

53145GCLIP, RADIATOR GRILLE

main53145-60030×16iGSX40201210-201510

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-07010iGSX40201210-201510

main53395-07020iGSX40201510

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9016740057

main90167-40057

9016750063

main90167-50063

10 parts on this diagram · 2 diagrams in section
