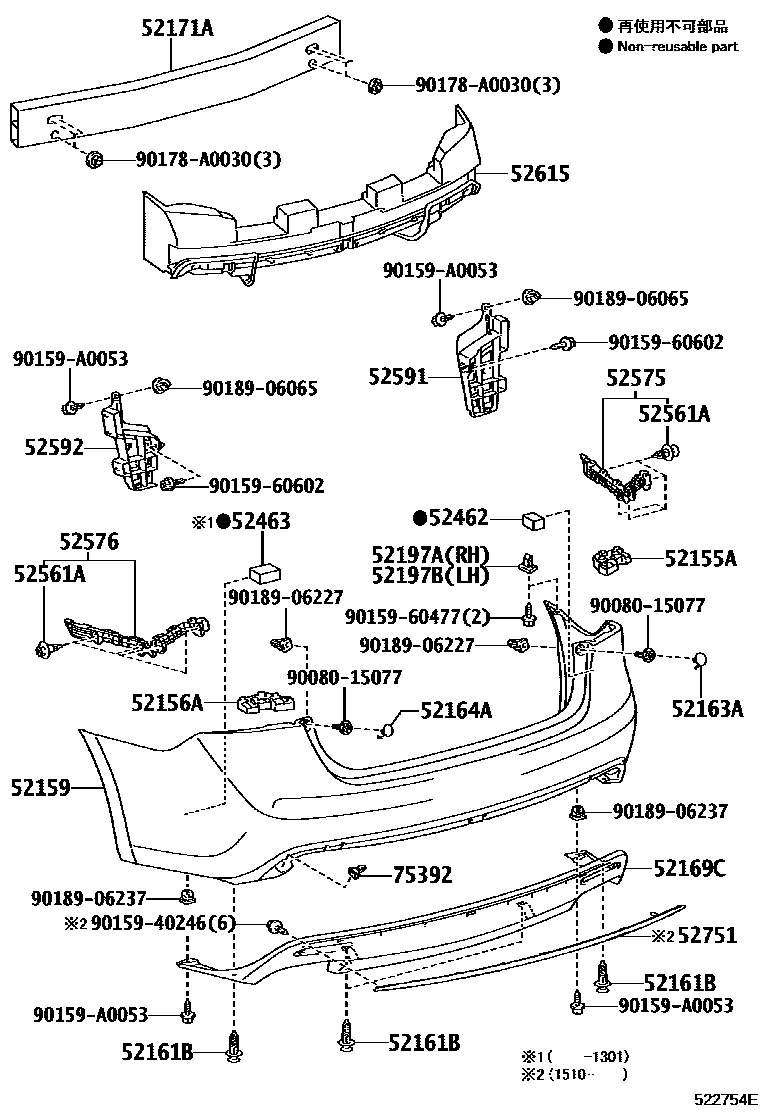

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-07030iGSX40201210-201510

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-07040iGSX40201210-201510

52159COVER, REAR BUMPER

main52159-07901iGSX40201210-201510

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02020×4iGSX40201210-201510

52163APLATE, REAR BUMPER, RH

main52163-07010iGSX40201210-201507

main52163-07011iGSX40201508-201510

52164APLATE, REAR BUMPER, LH

main52164-07010iGSX40201210-201507

main52164-07011iGSX40201508-201510

52169CCOVER, REAR BUMPER, LOWER

main52169-07020iGSX40201210-201510

NO PAINT REQ.

main52169-07040iGSX40201510

NO PAINT REQ.

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-06130iGSX40201210-201510

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-22020iGSX40201210-201510

52197BBRACKET, REAR BUMPER SEAL, LH

main52197-22020iGSX40201210-201510

52462PAD, REAR BUMPER, RH

main52462-07010iGSX40201210-201510

52463PAD, REAR BUMPER, LH

main52463-07010iGSX40201210-201301

52561ACLIP(FOR REAR BUMPER RETAINER)

main90467-09237×8iGSX40201210-201510

52575RETAINER, REAR BUMPER SIDE, RH

main52575-07010iGSX40201210-201510

52576RETAINER, REAR BUMPER SIDE, LH

main52576-07010iGSX40201210-201510

52591SEAL, REAR BUMPER SIDE, RH

main52591-07010iGSX40201210-201510

52592SEAL, REAR BUMPER SIDE, LH

main52592-07010iGSX40201210-201510

52615ABSORBER, REAR BUMPER ENERGY

main52615-07030iGSX40201210-201510

52751MOULDING, REAR BUMPER

main52751-07010iGSX40201510

75392RETAINER, OUTSIDE MOULDING

main75392-35200×2iGSX40201210-201510

9008015077

main90080-15077

9015940246

main90159-40246

9015960477

main90159-60477

9015960602

main90159-60602

90159A0053

main90159-A0053

90178A0030

main90178-A0030

9018906065

main90189-06065

9018906227

main90189-06227

9018906237

main90189-06237

29 parts on this diagram · 1 diagram in section
