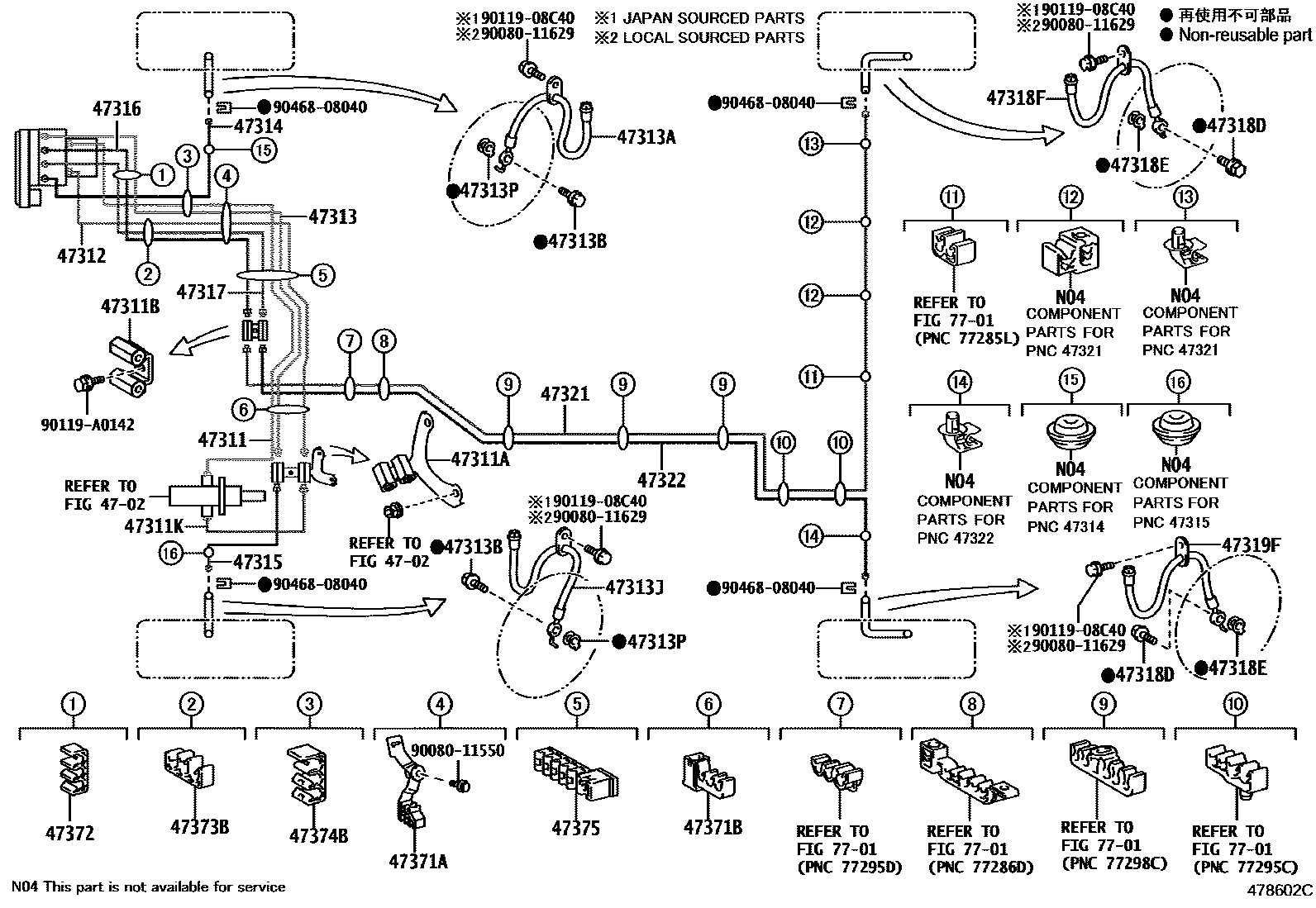

BRAKE TUBE & CLAMP

0001 1 0002 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-06400iGSX40201210-201510

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-12065iGSX40201210-201510

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10260iGSX40201210-201502

main90412-A0004iGSX40201503-201510

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-06390iGSX40201210-201510

47312TUBE, FRONT BRAKE, NO.2

main47312-06330iGSX40201210-201510

47313TUBE, FRONT BRAKE, NO.3

main47313-06290iGSX40201210-201510

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-A2030iGSX40201210-201510

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGSX40201210-201510

main90401-A0001×2iGSX40201609

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-A2031iGSX40201210-201510

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iGSX40201210-201510

47314TUBE, FRONT BRAKE, NO.4

main47314-06290iGSX40201210-201409

main47314-06291iGSX40201410-201510

47315TUBE, FRONT BRAKE, NO.5

main47315-06280iGSX40201210-201409

main47315-06281iGSX40201410-201510

47316TUBE, FRONT BRAKE, NO.6

main47316-06350iGSX40201210-201510

47317TUBE, FRONT BRAKE, NO.7

main47317-06330iGSX40201210-201510

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGSX40201210-201510

main90401-A0001×2iGSX40201609

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iGSX40201210-201510

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-A2032iGSX40201210-201510

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-A2060iGSX40201210-201510

47321TUBE, REAR BRAKE, NO.1

main47321-07070iGSX40201210-201409

main47321-07071iGSX40201410-201510

47322TUBE, REAR BRAKE, NO.2

main47322-07070iGSX40201210-201409

main47322-07071iGSX40201410-201510

47371ACLAMP, BRAKE TUBE, NO.1

main47371-06050iGSX40201210-201510

47371BCLAMP, BRAKE TUBE, NO.6

main90949-A1018iGSX40201210-201510

47372CLAMP, BRAKE TUBE, NO.2

main90464-00857iGSX40201210-201510

47373BCLAMP, BRAKE TUBE, NO.3

main90464-A0006iGSX40201210-201510

47374BCLAMP, BRAKE TUBE, NO.4

main90464-A0007iGSX40201210-201510

47375CLAMP, BRAKE TUBE, NO.5

main90949-A1019iGSX40201210-201510

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9008011550

main90080-11550

9008011629

main90080-11629

9011908C40

main90119-08C40

90119A0142

main90119-A0142

9046808040

main90468-08040

33 parts on this diagram · 2 diagrams in section
