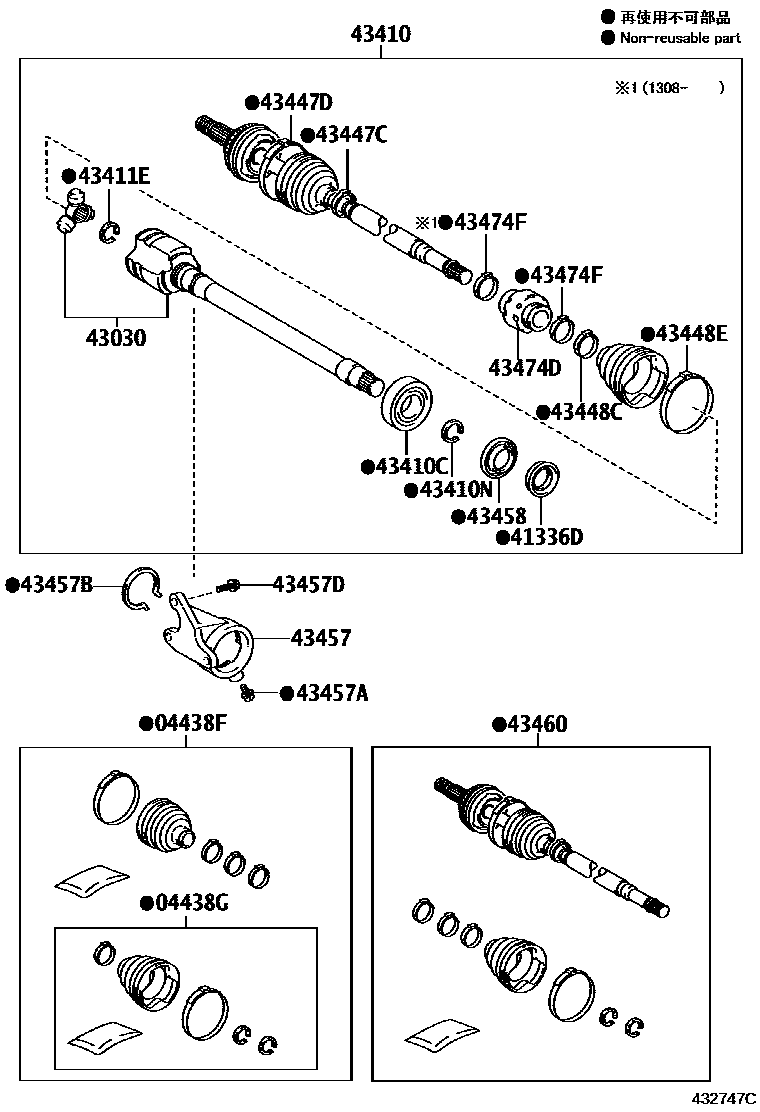

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06540iGSX40201308-201510

main04428-0W070iGSX40201210-201308

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-08050iGSX40201308-201510

main04438-08130iGSX40201210-201308

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iGSX40201510

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06450iGSX40201511

main43030-0W040iGSX40201210-201510

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06780iGSX40201210-201308

main43410-06A50iGSX40201308-201510

main43410-06B80iGSX40201511

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iGSX40201210-201510

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iGSX40201210-201510

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-08040iGSX40201210-201510

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iGSX40201210-201510

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06250iGSX40201210-201510

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-08070iGSX40201210-201510

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-06240iGSX40201210-201510

43457BRACKET, DRIVE SHAFT BEARING

main43457-07010iGSX40201210-201510

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iGSX40201210-201510

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iGSX40201210-201510

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iGSX40201510

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iGSX40201210-201510

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09W60iGSX40201210-201510

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06300iGSX40201308-201510

sub43474-06540

main43474-0W030iGSX40201210-201308

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iGSX40201210-201308

main42345-06790×2iGSX40201308-201510

20 parts on this diagram · 2 diagrams in section
