FRONT AXLE HOUSING & DIFFERENTIAL

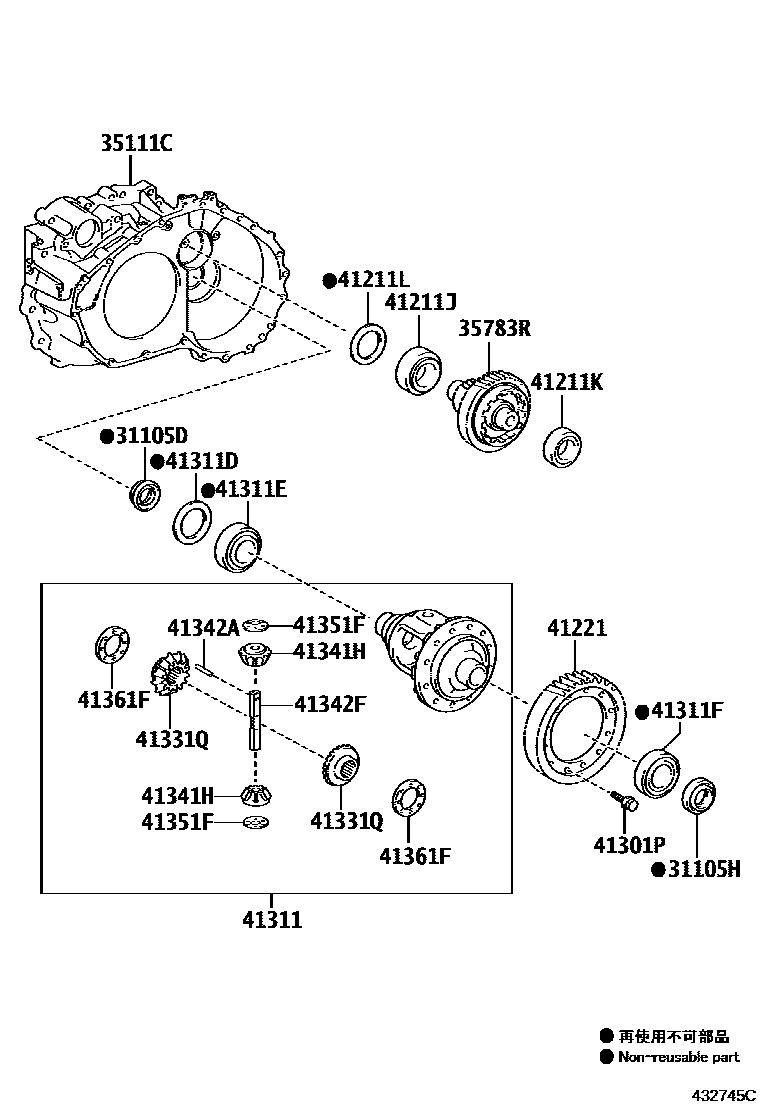

Parts diagram
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
main90311-40029i201210-201212
*324
sub90311-40038
main90311-40038i201212-201510
*324
main90311-A0012i201210-201403
*325
sub90311-A0029
main90311-A0029i201403-201801
*325
31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)
main90311-50045i201210-201510
*324
sub90311-50064
main90311-A0021i201210-201801
*325
35111CHOUSING, TRANSAXLE
main35105-08020i201210-201510
*325
sub35105-33012
main35105-08021i201510-201801
*325
sub35105-33012
main35105-33011i201210-201502
*324
sub35105-33012
main35105-33012i201503-201510
*324
35783RGEAR, COUNTER DRIVEN
main35705-33070i201210-201510
*324,*325
main35705-33070i201510-201801
*325
main35705-33070i201510
*324
41211JBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION RH)
main90366-42006i201210-201308
*324
main90366-42012i201308-201510
*324
main90366-A0032i201210-201801
*325
41211KBEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION LH)
main90366-35160i201210-201308
*324
main90366-35176i201308-201510
*324
main90366-A0038i201210-201801
*325
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
main90564-71014i201210-201510
T=2.000,*324
main90564-71015i201210-201510
T=2.025,*324
main90564-71016i201210-201510
T=2.050,*324
main90564-71017i201210-201510
T=2.075,*324
main90564-71018i201210-201510
T=2.100,*324
main90564-71019i201210-201510
T=2.125,*324
main90564-71020i201210-201510
T=2.150,*324
main90564-71021i201210-201510
T=2.175,*324
main90564-71022i201210-201510
T=2.200,*324
main90564-71023i201210-201510
T=2.225,*324
main90564-71024i201210-201510
T=2.250,*324
main90564-71025i201210-201510
T=2.275,*324
main90564-71026i201210-201510
T=2.300,*324
main90564-71027i201210-201510
T=2.325,*324
main90564-71028i201210-201510
T=2.350,*324
main90564-71029i201210-201510
T=2.375,*324
main90564-71030i201210-201510
T=2.400,*324
main90564-71031i201210-201510
T=2.425,*324
main90564-71032i201210-201510
T=2.450,*324
main90564-71033i201210-201510
T=2.475,*324
main90564-71034i201210-201510
T=2.500,*324
main90564-71035i201210-201510
T=2.525,*324
main90564-71036i201210-201510
T=2.550,*324
main90564-71037i201210-201510
T=2.575,*324
main90564-71038i201210-201510
T=2.600,*324
main90564-71039i201210-201510
T=2.625,*324
main90564-71040i201210-201510
T=2.650,*324
main90564-71041i201210-201510
T=2.675,*324
main90564-71042i201210-201510
T=2.700,*324
main90564-71043i201210-201510
T=2.725,*324
main90564-71044i201210-201510
T=2.750,*324
main90564-71045i201210-201510
T=2.775,*324
main90564-71046i201210-201510
T=2.800,*324
main90564-71047i201210-201510
T=2.825,*324
main90564-71048i201210-201510
T=2.850,*324
main90564-71049i201210-201510
T=2.875,*324
main90564-71050i201210-201510
T=2.900,*324
main90564-71051i201210-201510
T=2.925,*324
main90564-71052i201210-201510
T=2.950,*324
main90564-71053i201210-201510
T=2.975,*324
main90564-71054i201210-201510
T=3.000,*324
main90564-A0142i201210-201801
T=2.000,*325
main90564-A0143i201210-201801
T=2.025,*325
main90564-A0144i201210-201801
T=2.050,*325
main90564-A0145i201210-201801
T=2.075,*325
main90564-A0146i201210-201801
T=2.100,*325
main90564-A0147i201210-201801
T=2.125,*325
main90564-A0148i201210-201801
T=2.150,*325
main90564-A0149i201210-201801
T=2.175,*325
main90564-A0150i201210-201801
T=2.200,*325
main90564-A0151i201210-201801
T=2.225,*325
main90564-A0152i201210-201801
T=2.250,*325
main90564-A0153i201210-201801
T=2.275,*325
main90564-A0154i201210-201801
T=2.300,*325
main90564-A0155i201210-201801
T=2.325,*325
main90564-A0156i201210-201801
T=2.350,*325
main90564-A0157i201210-201801
T=2.375,*325
main90564-A0158i201210-201801
T=2.400,*325
main90564-A0159i201210-201801
T=2.425,*325
main90564-A0160i201210-201801
T=2.450,*325
main90564-A0161i201210-201801
T=2.475,*325
main90564-A0162i201210-201801
T=2.500,*325
main90564-A0163i201210-201801
T=2.525,*325
main90564-A0164i201210-201801
T=2.550,*325
main90564-A0165i201210-201801
T=2.575,*325
main90564-A0166i201210-201801
T=2.600,*325
main90564-A0167i201210-201801
T=2.625,*325
main90564-A0168i201210-201801
T=2.650,*325
main90564-A0169i201210-201801
T=2.675,*325
main90564-A0170i201210-201801
T=2.700,*325
main90564-A0171i201210-201801
T=2.725,*325
main90564-A0172i201210-201801
T=2.750,*325
main90564-A0173i201210-201801
T=2.775,*325
main90564-A0174i201210-201801
T=2.800,*325
main90564-A0175i201210-201801
T=2.825,*325
main90564-A0176i201210-201801
T=2.850,*325
main90564-A0177i201210-201801
T=2.875,*325
main90564-A0178i201210-201801
T=2.900,*325
main90564-A0179i201210-201801
T=2.925,*325
main90564-A0180i201210-201801
T=2.950,*325
main90564-A0181i201210-201801
T=2.975,*325
main90564-A0182i201210-201801
T=3.000,*325
41221GEAR, FRONT DIFFERENTIAL RING
main41221-33220i201210-201801
*324,*325
sub41221-33330
main41221-33330i201802
*324
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
main90080-10239i201210-201801
*325
main90105-12303i201210-201510
*324
41311CASE, FRONT DIFFERENTIAL
main41301-07030i201210-201408
*325
sub41301-07031
main41301-07031i201408-201801
*325
sub41301-48120
main41301-33120i201210-201402
*324
sub41301-48120
main41301-48120i201402-201510
*324
41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
main90564-79054i201210-201510
T=2.000,*324
main90564-79055i201210-201510
T=2.025,*324
main90564-79056i201210-201510
T=2.050,*324
main90564-79057i201210-201510
T=2.075,*324
main90564-79058i201210-201510
T=2.100,*324
main90564-79059i201210-201510
T=2.125,*324
main90564-79060i201210-201510
T=2.150,*324
main90564-79061i201210-201510
T=2.175,*324
main90564-79062i201210-201510
T=2.200,*324
main90564-79063i201210-201510
T=2.225,*324
main90564-79064i201210-201510
T=2.250,*324
main90564-79065i201210-201510
T=2.275,*324
main90564-79066i201210-201510
T=2.300,*324
main90564-79067i201210-201510
T=2.325,*324
main90564-79068i201210-201510
T=2.350,*324
main90564-79069i201210-201510
T=2.375,*324
main90564-79070i201210-201510
T=2.400,*324
main90564-79071i201210-201510
T=2.425,*324
main90564-79072i201210-201510
T=2.450,*324
main90564-79073i201210-201510
T=2.475,*324
main90564-79074i201210-201510
T=2.500,*324
main90564-79075i201210-201510
T=2.525,*324
main90564-79076i201210-201510
T=2.550,*324
main90564-79077i201210-201510
T=2.575,*324
main90564-79078i201210-201510
T=2.600,*324
main90564-79079i201210-201510
T=2.625,*324
main90564-79080i201210-201510
T=2.650,*324
main90564-79081i201210-201510
T=2.675,*324
main90564-79082i201210-201510
T=2.700,*324
main90564-79083i201210-201510
T=2.725,*324
main90564-79084i201210-201510
T=2.750,*324
main90564-79085i201210-201510
T=2.775,*324
main90564-79086i201210-201510
T=2.800,*324
main90564-79087i201210-201510
T=2.825,*324
main90564-79088i201210-201510
T=2.850,*324
main90564-79089i201210-201510
T=2.875,*324
main90564-A0106i201210-201801
T=2.000,*325
main90564-A0107i201210-201801
T=2.025,*325
main90564-A0108i201210-201801
T=2.050,*325
main90564-A0109i201210-201801
T=2.075,*325
main90564-A0110i201210-201801
T=2.100,*325
main90564-A0111i201210-201801
T=2.125,*325
main90564-A0112i201210-201801
T=2.150,*325
main90564-A0113i201210-201801
T=2.175,*325
main90564-A0114i201210-201801
T=2.200,*325
main90564-A0115i201210-201801
T=2.225,*325
main90564-A0116i201210-201801
T=2.250,*325
main90564-A0117i201210-201801
T=2.275,*325
main90564-A0118i201210-201801
T=2.300,*325
main90564-A0119i201210-201801
T=2.325,*325
main90564-A0120i201210-201801
T=2.350,*325
main90564-A0121i201210-201801
T=2.375,*325
main90564-A0122i201210-201801
T=2.400,*325
main90564-A0123i201210-201801
T=2.425,*325
main90564-A0124i201210-201801
T=2.450,*325
main90564-A0125i201210-201801
T=2.475,*325
main90564-A0126i201210-201801
T=2.500,*325
main90564-A0127i201210-201801
T=2.525,*325
main90564-A0128i201210-201801
T=2.550,*325
main90564-A0129i201210-201801
T=2.575,*325
main90564-A0130i201210-201801
T=2.600,*325
main90564-A0131i201210-201801
T=2.625,*325
main90564-A0132i201210-201801
T=2.650,*325
main90564-A0133i201210-201801
T=2.675,*325
main90564-A0134i201210-201801
T=2.700,*325
main90564-A0135i201210-201801
T=2.725,*325
main90564-A0136i201210-201801
T=2.750,*325
main90564-A0137i201210-201801
T=2.775,*325
main90564-A0138i201210-201801
T=2.800,*325
main90564-A0139i201210-201801
T=2.825,*325
main90564-A0140i201210-201801
T=2.850,*325
main90564-A0141i201210-201801
T=2.875,*325
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
main90366-50136i201210-201308
*324
main90366-50149i201308-201510
*324
main90366-A0041i201210-201801
*325
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
main90366-55074i201210-201308
*324
main90366-55077i201308-201510
*324
main90366-A0044i201210-201801
*325
41331QGEAR, DIFFERENTIAL SIDE
main41331-33040i201210-201402
*324,*325
sub41039-48040
sub90208-45001
41341HPINION, DIFFERENTIAL
main41341-35050i201210-201402
*324,*325
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i201210-201510
*324,*325
main90250-06058i201510-201801
*325
main90250-06058i201510
*324
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-33050i201210-201402
*324,*325
sub41342-33051
main41342-33051i201402-201510
*324,*325
main41342-33051i201510-201801
*325
main41342-33051i201510
*324
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-33030i201510-201801
*325
main41351-33030i201510
*324
main41351-33030i201210-201510
*324,*325
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-06010i201411-201801
T=1.50,*325
main41361-06020i201411-201801
T=1.55,*325
main41361-06030i201411-201801
T=1.60,*325
main41361-06040i201411-201801
T=1.65,*325
main41361-06050i201411-201801
T=1.70,*325
main41361-06060i201411-201801
T=1.75,*325
main41361-06070i201411-201801
T=1.80,*325
main41361-06080i201411-201801
T=1.85,*325
main41361-06090i201411-201801
T=1.90,*325
main41361-33020i201210-201410
T=1.50,*325
main41361-33020i201210-201510
T=1.50,*324
main41361-33030i201210-201410
T=1.55,*325
main41361-33030i201210-201510
T=1.55,*324
main41361-33040i201210-201510
T=1.60,*324
main41361-33040i201210-201410
T=1.60,*325
main41361-33050i201210-201510
T=1.65,*324
main41361-33050i201210-201410
T=1.65,*325
main41361-33060i201210-201510
T=1.70,*324
main41361-33060i201210-201410
T=1.70,*325
main41361-33070i201210-201510
T=1.75,*324
main41361-33070i201210-201410
T=1.75,*325
main41361-33080i201210-201510
T=1.80,*324
main41361-33080i201210-201410
T=1.80,*325
main41361-33090i201210-201510
T=1.85,*324
main41361-33090i201210-201410
T=1.85,*325
main41361-33100i201210-201410
T=1.90,*325
main41361-33100i201210-201510
T=1.90,*324
main41361-33110i201402-201408
T=2.60,*325
main41361-33120i201402-201408
T=2.65,*325
main41361-33130i201402-201408
T=2.70,*325
main41361-33140i201402-201408
T=2.75,*325
main41361-33150i201402-201408
T=2.80,*325
main41361-33160i201402-201408
T=2.85,*325
main41361-33170i201402-201408
T=2.90,*325
main41361-33180i201402-201408
T=2.95,*325
main41361-33190i201402-201408
T=3.00,*325

19 parts on this diagram · 2 diagrams in section

FRONT AXLE HOUSING & DIFFERENTIAL — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
