TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

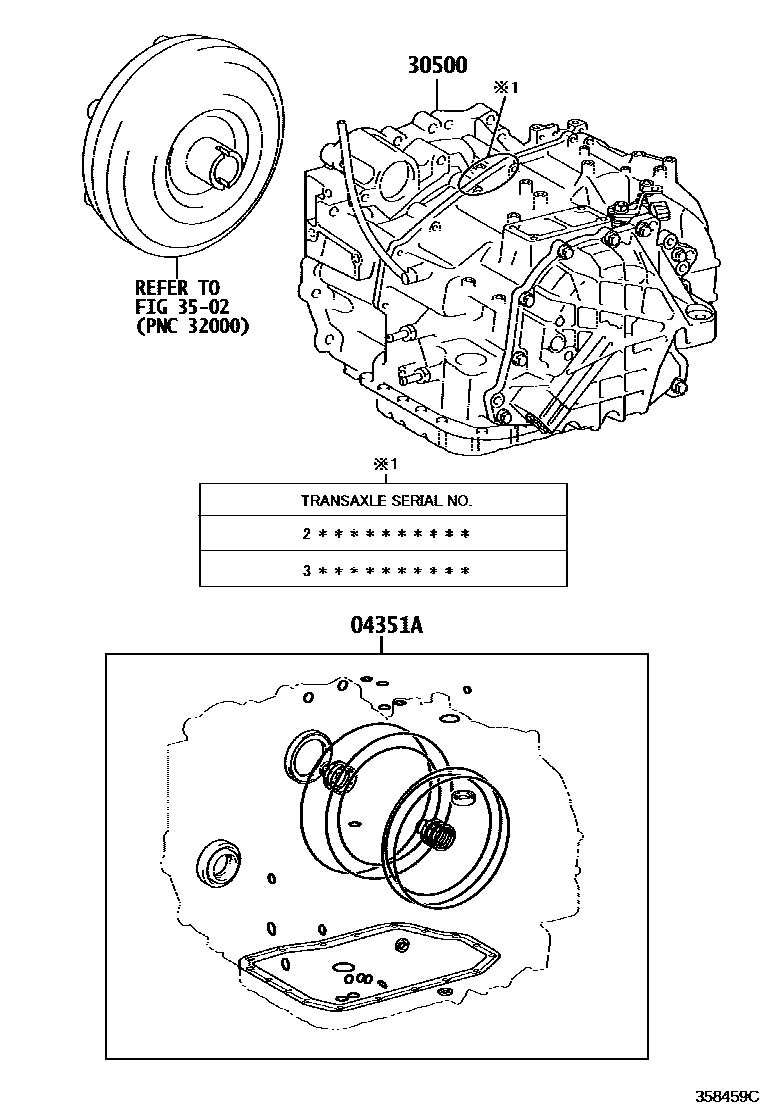

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-07012i201510-201706

*323

main04351-07013i201707-201801

*323

main04351-33401i201210-201212

*322

main04351-33402i201212-201510

*322

30500TRANSAXLE ASSY, AUTOMATIC

main30500-06050i201210-201408

U660E,*323

main30500-06051i201510-201801

U660E,*323

main30500-33640i201210-201402

U660E,*322

main30500-33641i201402-201510

U660E,*322

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3 parts on this diagram · 1 diagram in section
